Chapter 7: ECG
VS2000 Vital Signs Monitor Operation Manual 7-9

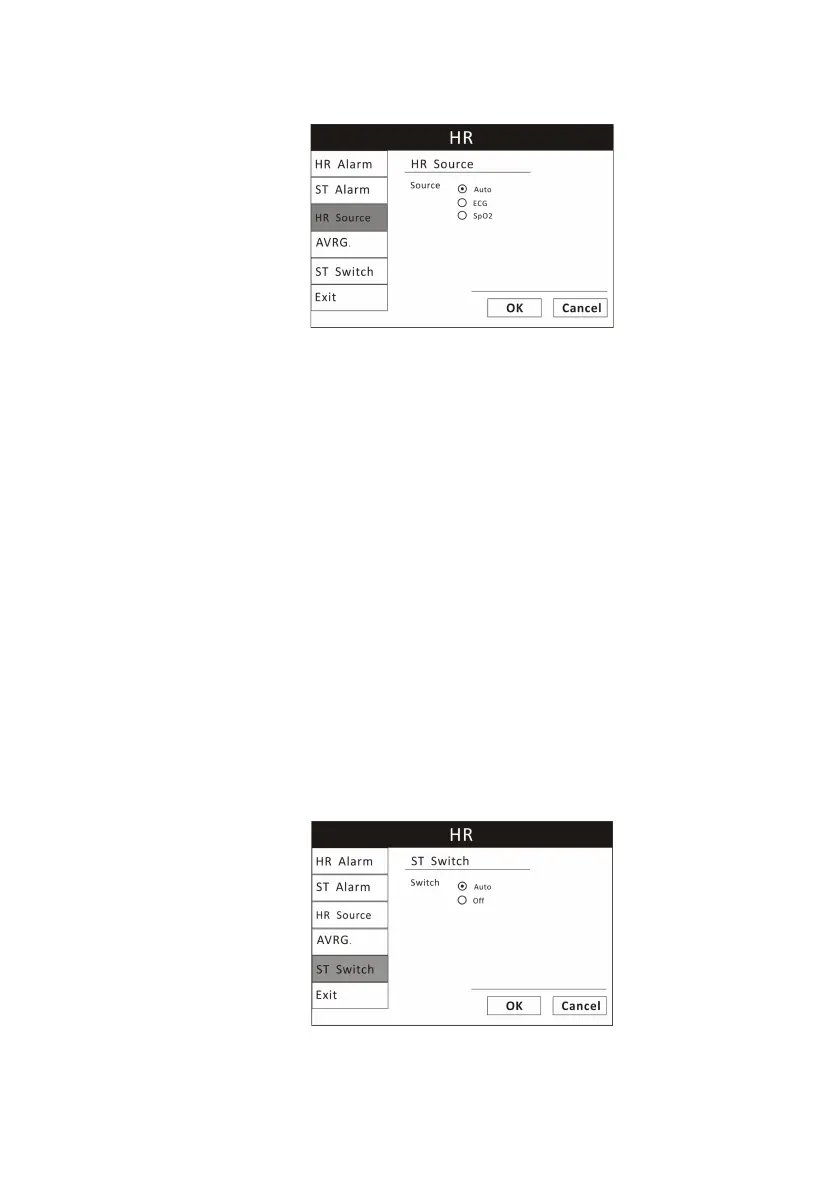

Figure7.8: Choose HR Source
1. Push and turn the rotary knob on the monitor to move the cursor. Highlight
the HR parameter box and push the knob to access the HR parameter menu.
2. Highlight HR Source and push the knob to select.
3. Choose the desired source of the measured value for heart rate (AUTO, ECG,
or SpO
2
) and push the knob to select.
4. Turn the rotary knob to “OK” or “Cancel” to save or delete your settings.
7.7 Monitoring ST
The monitor performs ST segment analysis on normal and atrially paced beats
and calculates ST segment elevations and depressions. This information can be
displayed in the form of ST numerics and snippets on the monitor.
7.1.1 Turn on the ST Switch
Figure7.9: Turn on ST Switch
