7.4.2 Reference menu

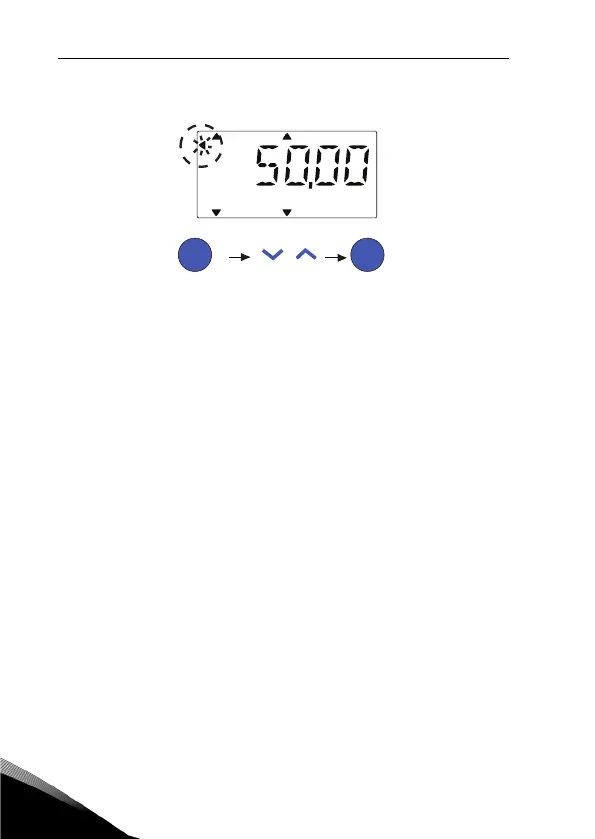

Figure 7.3: Reference menu display
Move to the reference menu with the UP / DOWN button (see Figure 7.2). The refer-
ence value can be changed by 0.01 every time with UP / DOWN button as shown in
Figure 7.3.
If the value has big change, first press Left and Right buttons to select the digit which
has to be changed, then press Up button to increase and Down button to decreases
the value in the selected digit . In the end, press OK button to take the setting value
effective.
Press to enter
edit mode
Change
value
Press to
confirm
OK OK
SYS
FWD REV I/O KEYPAD BUS
REF
MON
PA R
FAU LTALARMSTOPREADY RUN
Hz
