vacon • 7 BH Application
1

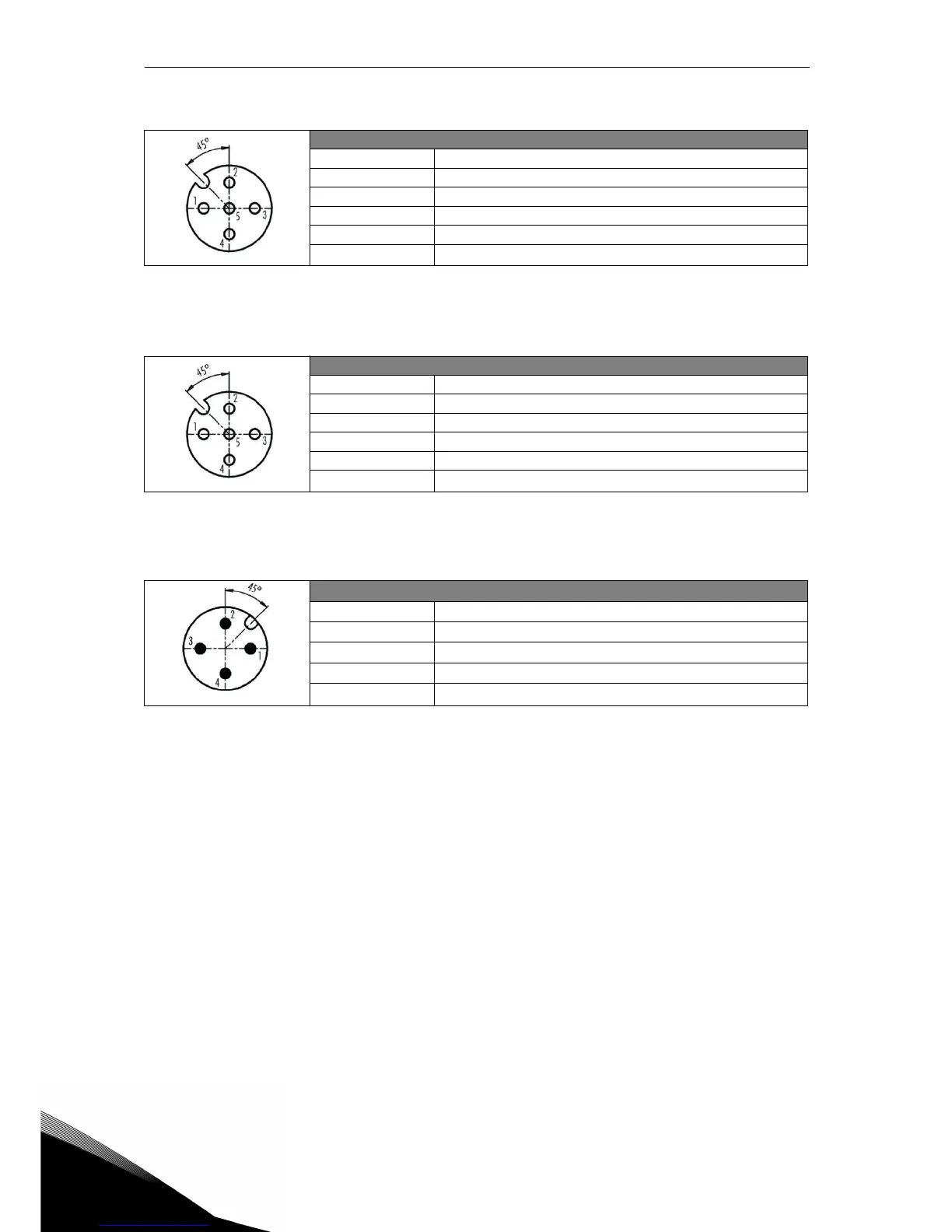

X1 Digital Input / Type M12 A-Coding – 5 pole (Female)
Pin Function
1 +24V (25mA max.)
2D input 1
3GND
4D input 2
5Functional Earth
Table 8. X1 connector, MU3.
X2 Digital Input / Type M12 A-Coding – 5 pole (Female)
Pin Function
1 +24V (25mA max.)
2D input 3
3GND
4D input 4
5Functional Earth
Table 9. X2 connector, MU3.
X3 ASi connections / Type M12 A-Coding – 4 pole (Male)
Pin Function
1ASi +
20V
3ASi -
4 +24V
Table 10. AS-interface connector, MU3.
