1.3 Description of the terminals (D-option with AS-interface)
The following pictures describe the power and M12 terminals in Vacon 20X drives with D-option
and AS-interface connection.
1.3.1 MU2 connections

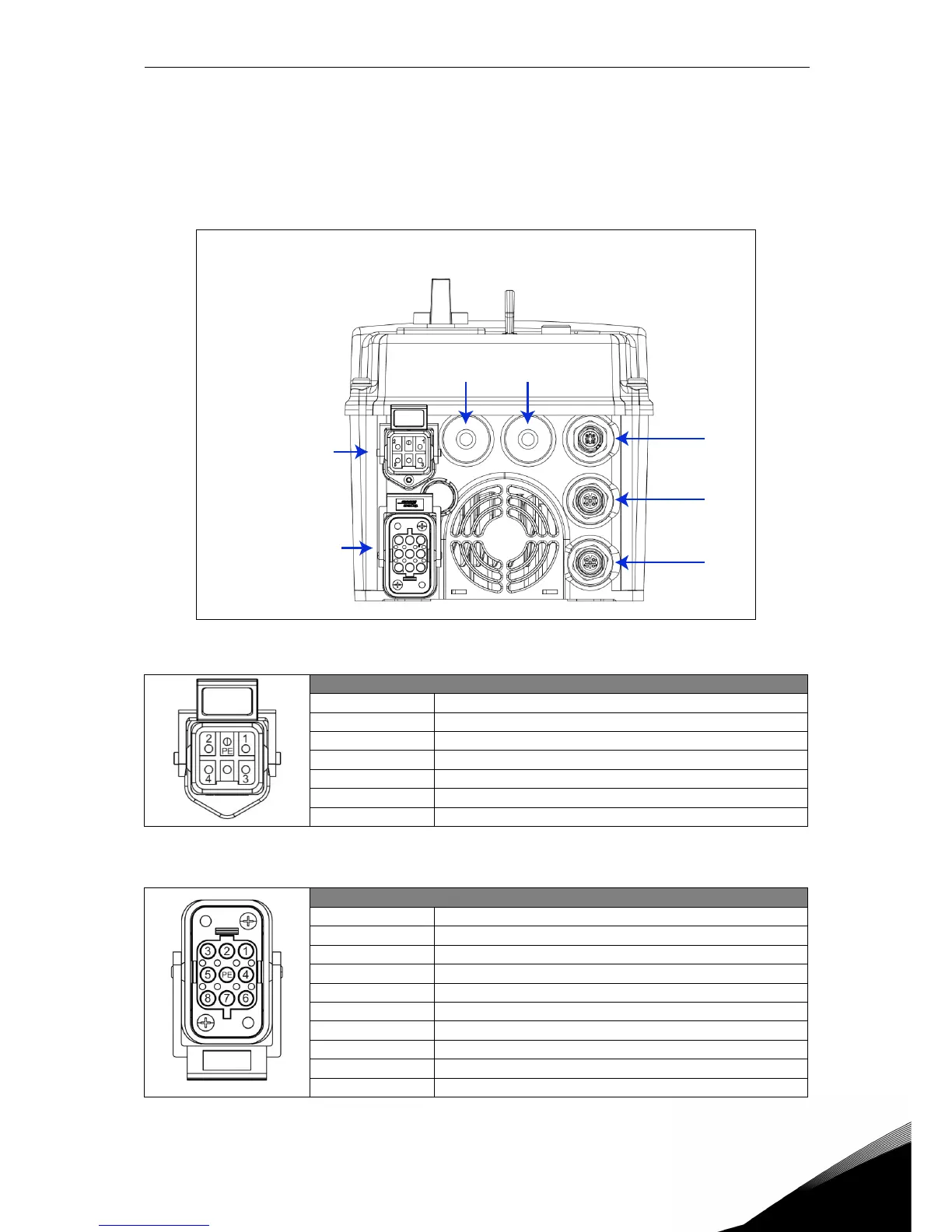

Figure 1. Power and control terminals in MU2.
Mains supply / Type HAN Q5/0 (Male)
Pin Function
1L1
2L2
3L3
4-
5-
PE Protective Earth
Table 1. Mains supply connector, MU2.
Motor output / Type HAN Q8 (Female)
Pin Function
1U
2 Not connected
3W
4Brake (-)
5Temperature sensor (+)
6Brake (+)
7V
8Temperature sensor (-)
PE Protective Earth
Table 2. Motor supply connector, MU2
X5 X4
Mains supply
Motor output
X3
X2
X1
