Vacon 20 SERIES User Manual

vacon • 5 BH Application
1

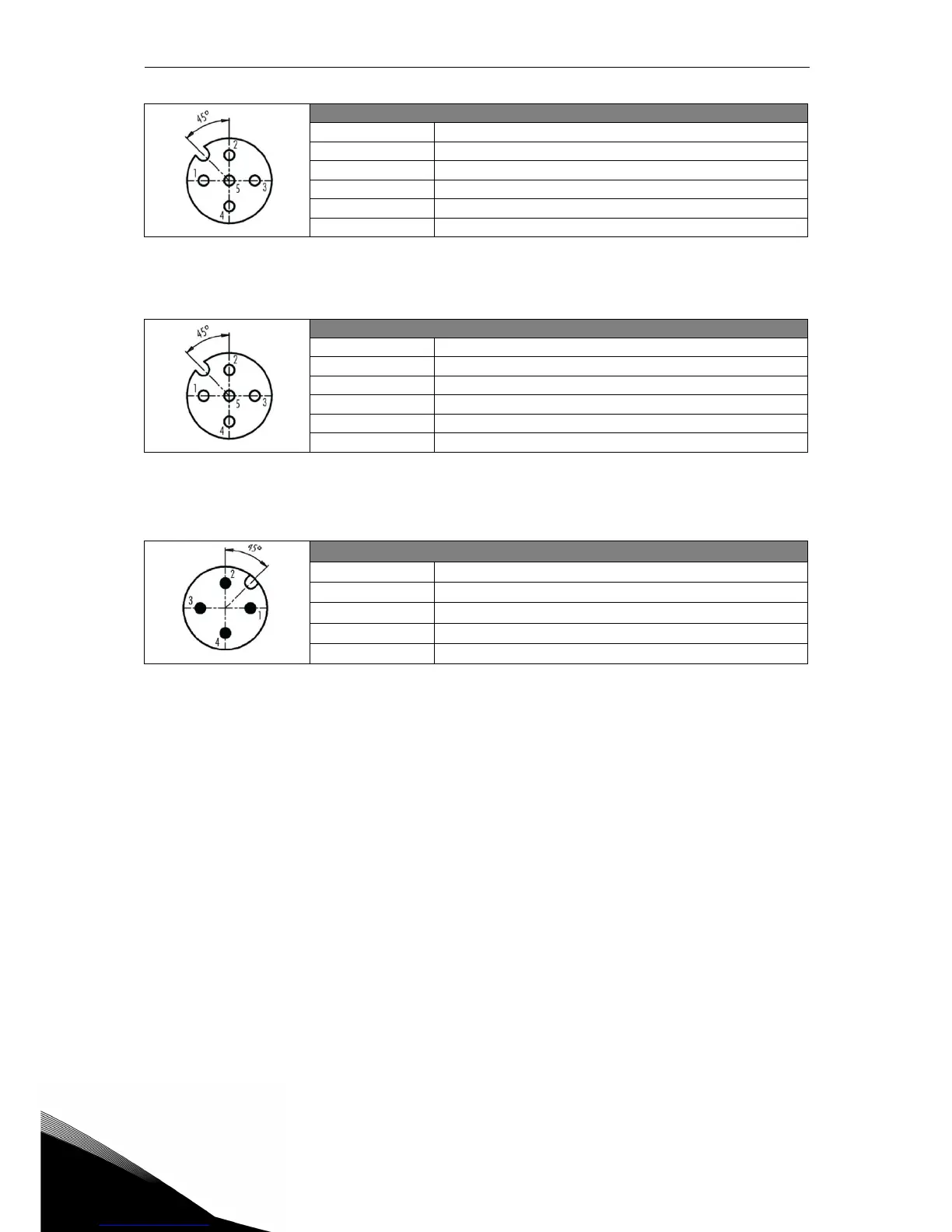

X1 Digital Input / Type M12 A-Coding – 5 pole (Female)
Pin Function
1 +24V (25mA max.)
2D input 1
3GND
4D input 2
5Functional Earth
Table 3. X1 connector, MU2.
X2 Digital Input / Type M12 A-Coding – 5 pole (Female)
Pin Function
1 +24V (25mA max.)
2D input 3
3GND
4D input 4
5Functional Earth
Table 4. X2 connector, MU2.
X3 ASi connections / Type M12 A-Coding – 4 pole (Male)
Pin Function
1ASi +
20V
3ASi -
4 +24V
Table 5. AS-interface connector, MU2.

Vacon 20 SERIES Specifications

General

Output Voltage	0 to Input Voltage
Storage Temperature	-40°C to +70°C
Dimensions	Varies by model
Weight	Varies by model
Power Range	0.25 kW to 18.5 kW
Voltage Range	200 V to 480 V
Control Method	Sensorless vector control
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Communication Options	Modbus, CANopen
EMC Filter	Integrated
STO (Safe Torque Off)	Yes
Input Voltage	208-240 V, 380-480 V
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Operating Temperature	-10°C to +50°C
Humidity	5% to 95% non-condensing
