Vacon 20 SERIES User Manual

BH Application vacon • 8
Service support: find your nearest Vacon service center at www.vacon.com
1
1.4 Description of the terminals (D-option with Profibus)
The following pictures describe the power and M12 terminals in Vacon 20X drives with D-option
and Profibus connection.
1.4.1 MU2 connections

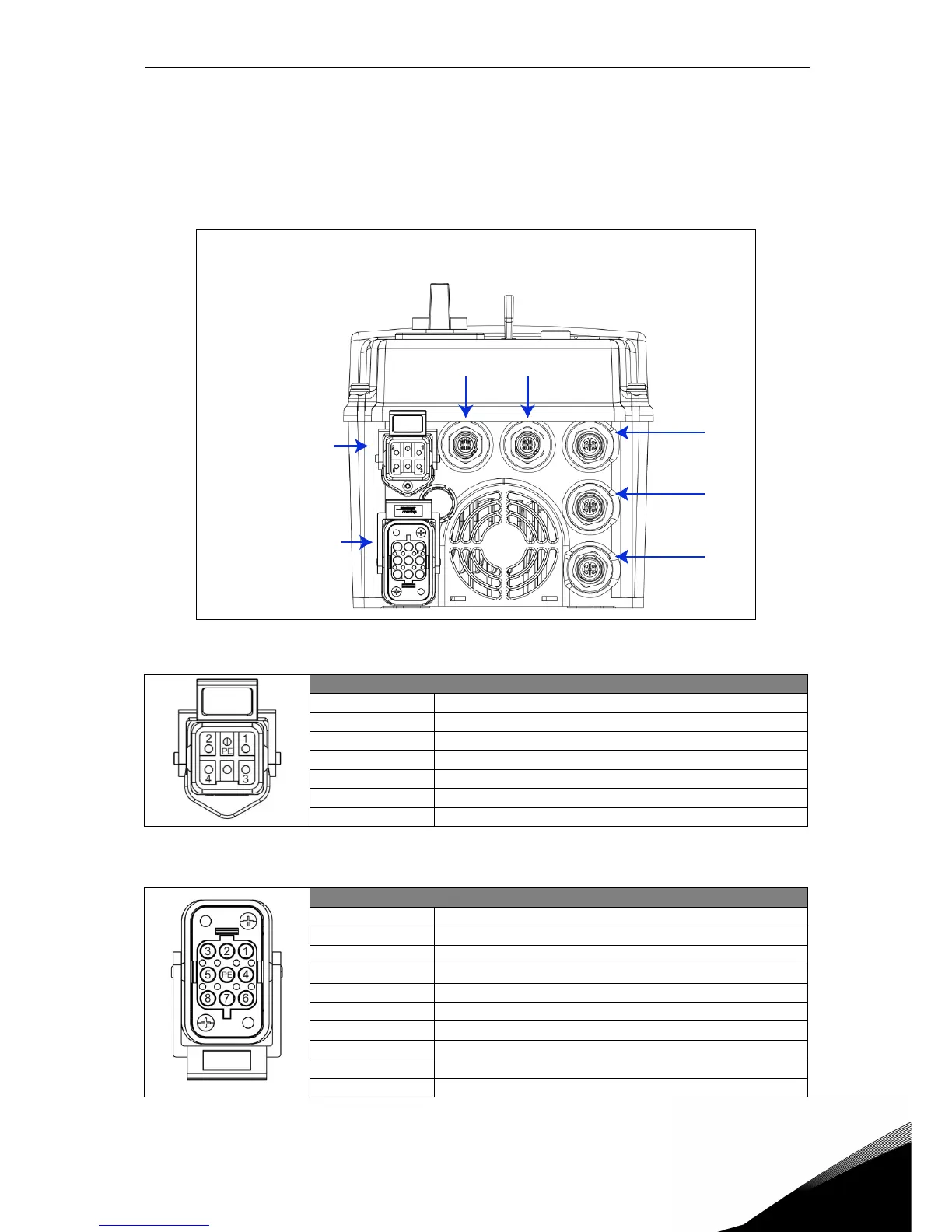

Figure 3. Power and control terminals in MU2.
Mains supply / Type HAN Q5/0 (Male)
Pin Function
1L1
2L2
3L3
4-
5-
PE Protective Earth
Table 11. Mains supply connector, MU2.
Motor output / Type HAN Q8 (Female)
Pin Function
1U
2 Not connected
3W
4Brake (-)
5Temperature sensor (+)
6Brake (+)
7V
8Temperature sensor (-)
PE Protective Earth
Table 12. Motor supply connector, MU2
X5 X4
Mains supply
Moto
r
outpu
t
X
3
X
2
X1

Vacon 20 SERIES Specifications

General

Output Voltage	0 to Input Voltage
Storage Temperature	-40°C to +70°C
Dimensions	Varies by model
Weight	Varies by model
Power Range	0.25 kW to 18.5 kW
Voltage Range	200 V to 480 V
Control Method	Sensorless vector control
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Communication Options	Modbus, CANopen
EMC Filter	Integrated
STO (Safe Torque Off)	Yes
Input Voltage	208-240 V, 380-480 V
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Operating Temperature	-10°C to +50°C
Humidity	5% to 95% non-condensing
