vacon • 9 BH Application
1

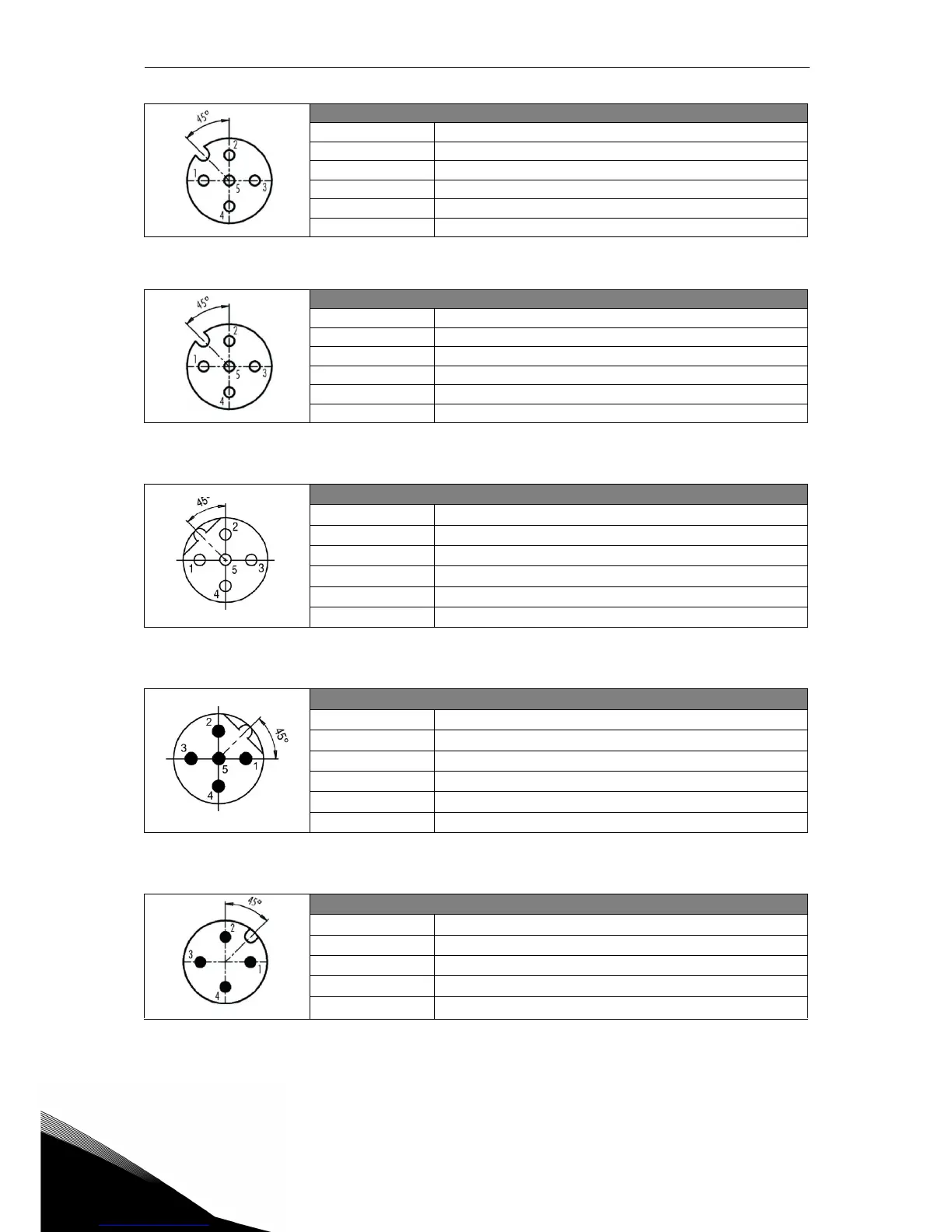

X1 Digital Input / Type M12 A-Coding – 5 pole (Female)
Pin Function
1 +24V (25mA max.)
2D input 1
3GND
4D input 2
5Functional Earth
Table 13. X1 connector, MU2.
X2 Digital Input / Type M12 A-Coding – 5 pole (Female)
Pin Function
1 +24V (25mA max.)
2D input 3
3GND
4D input 4
5Functional Earth
Table 14. X2 connector, MU2.
X3 Profibus / Type M12 B-Coding – 5 pole (Female)
Pin Function
1-
2 A (green)
3-
4B (red)
5-
Table 15. Profibus Female connector, MU2.
X4 Profibus / Type M12 B-Coding – 5 pole (Male)
Pin Function
1-
2 A (green)
3-
4B (red)
5-
Table 16. Profibus Male connector, MU2.
X5 Auxiliary power supply / Type M12 A-Coding – 4 pole (Male)
Pin Function
1 Power supply +24V
2-
3Power supply GND
4-
Table 17. Auxiliary power supply connector, MU2.
