USER'S GUIDE____________________________________________________________________
24 __________________________________________________________________ M210482EN-D
0911-074

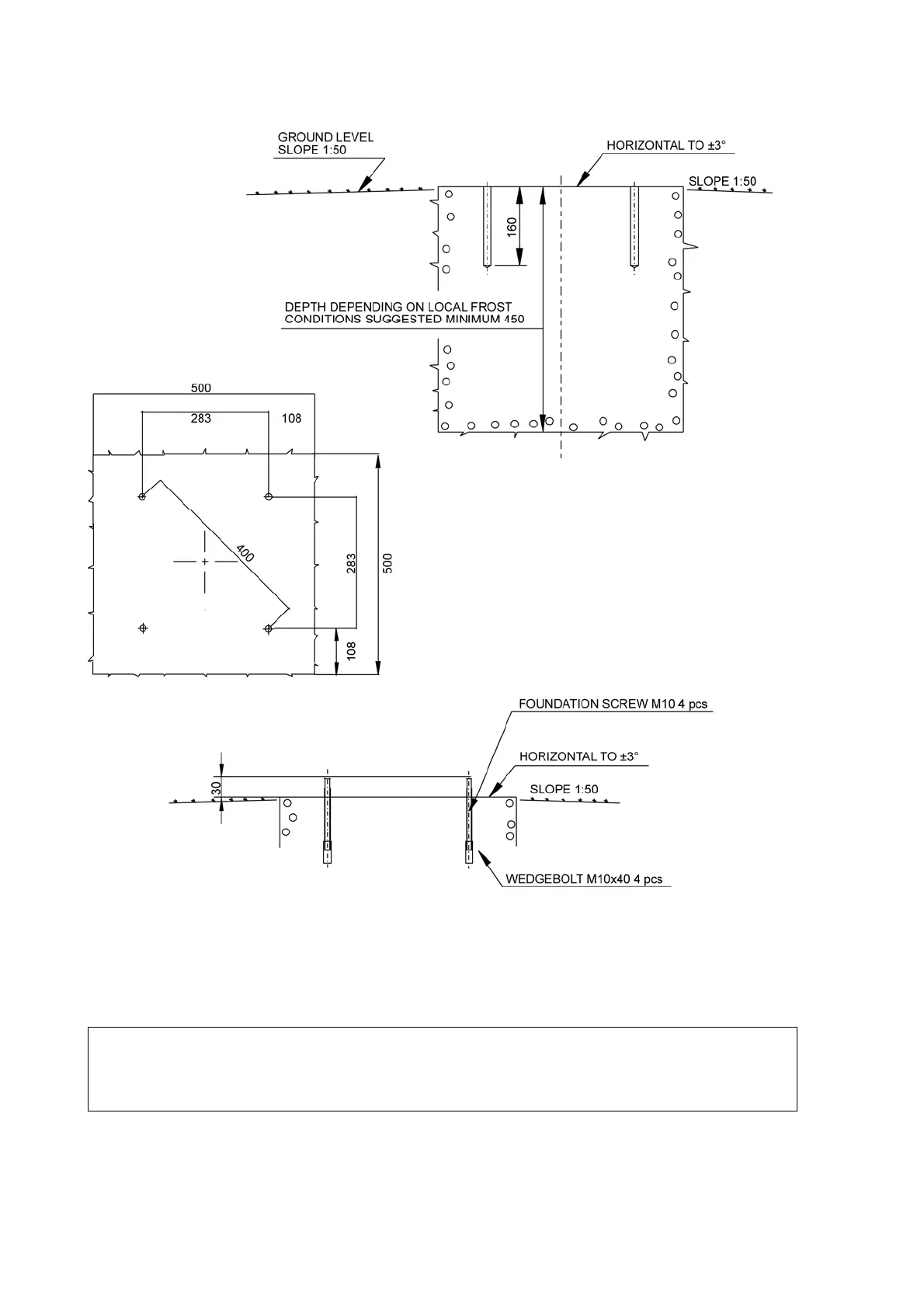

Figure 4 Foundation Construction
There are two ways to create a concrete foundation for Ceilometer CL31;
you can either use an existing concrete foundation or create a new one.
NOTE
If the tilt feature will be used (see section Using the Tilt Feature on page
30), observe this in the layout of the foundation screws and shield
placement.
