Chapter 3 ________________________________________________________________ Operation
VAISALA _______________________________________________________________________ 25
The Coded Location check box is available when the system has
STANAG messages installed.
5. Click Next to continue.
6. Enter the front direction angle in the RDF front direction angle
required window. Click Next.
The front direction angle is the true bearing where the antenna
points after commanding to zero position. For example, if the angle
is 355°30', key in 355.50.
0203-081

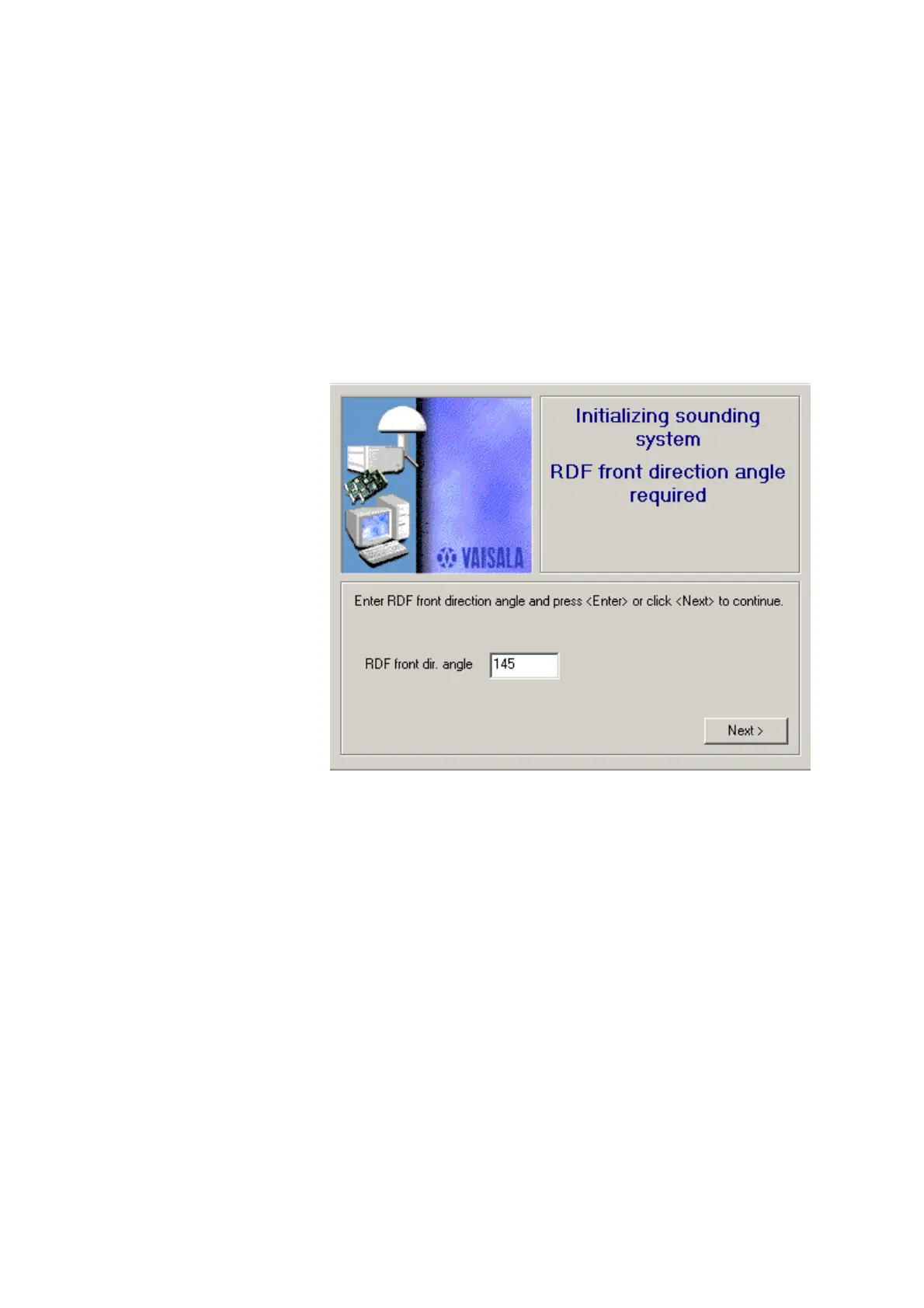

Figure 13 RDF Front Direction Angle
7. After entering the station data or angle, the program asks you to
select the starting mode for the sounding. See Figure 14.
