Appendix F __________________________________________ Wiring External Sensors to WXT536
VAISALA______________________________________________________________________ 209

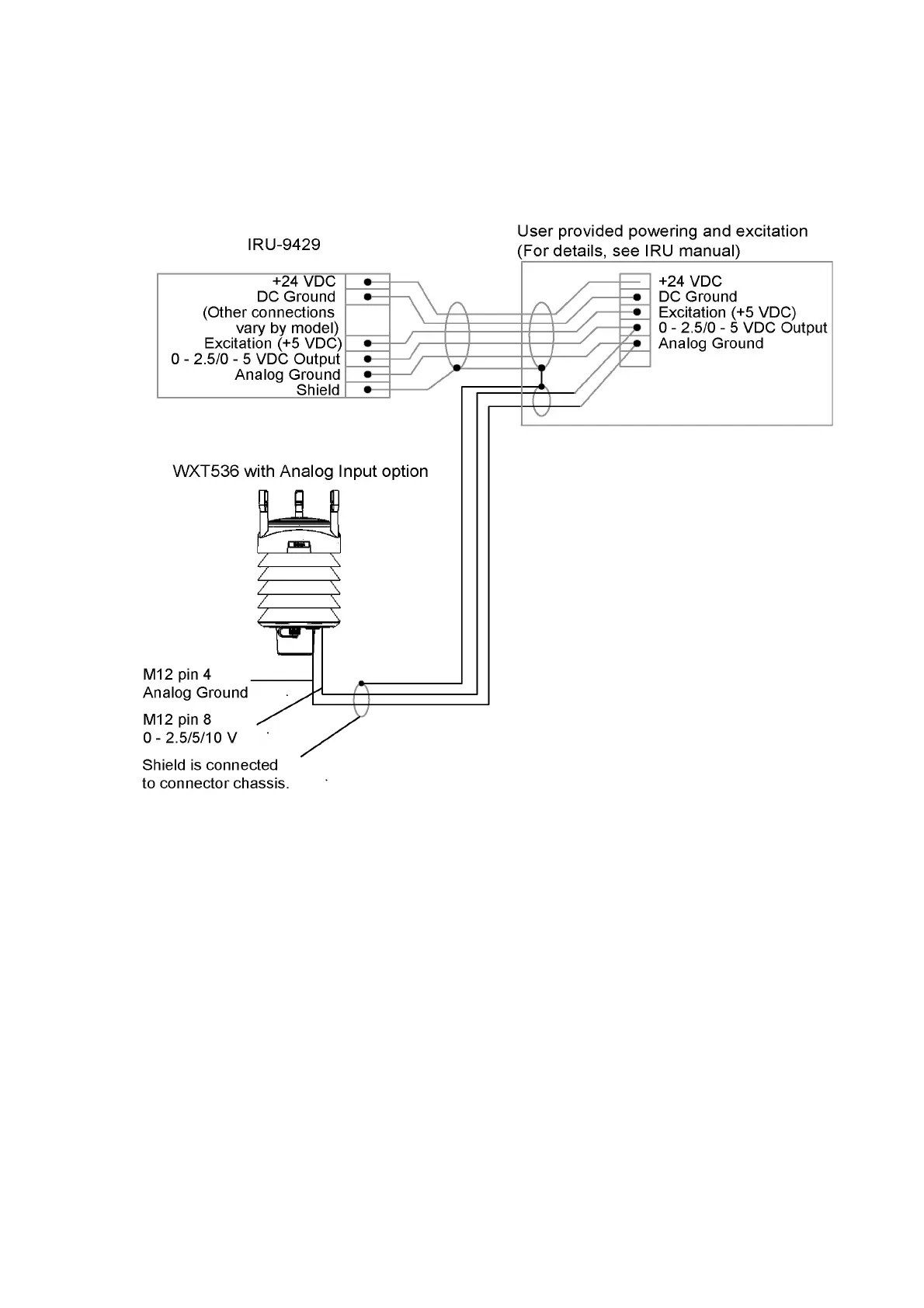

The figure below shows how to wire the snow depth sensor to WXT536.
1509-086
Figure 50 Wiring Snow Depth Sensor to WXT536
