Vaisala WXT532 - M12 Connector Wiring; External M12 Wiring

User’s Guide ______________________________________________________________________
56 __________________________________________________________________ M211840EN-C
1509-033

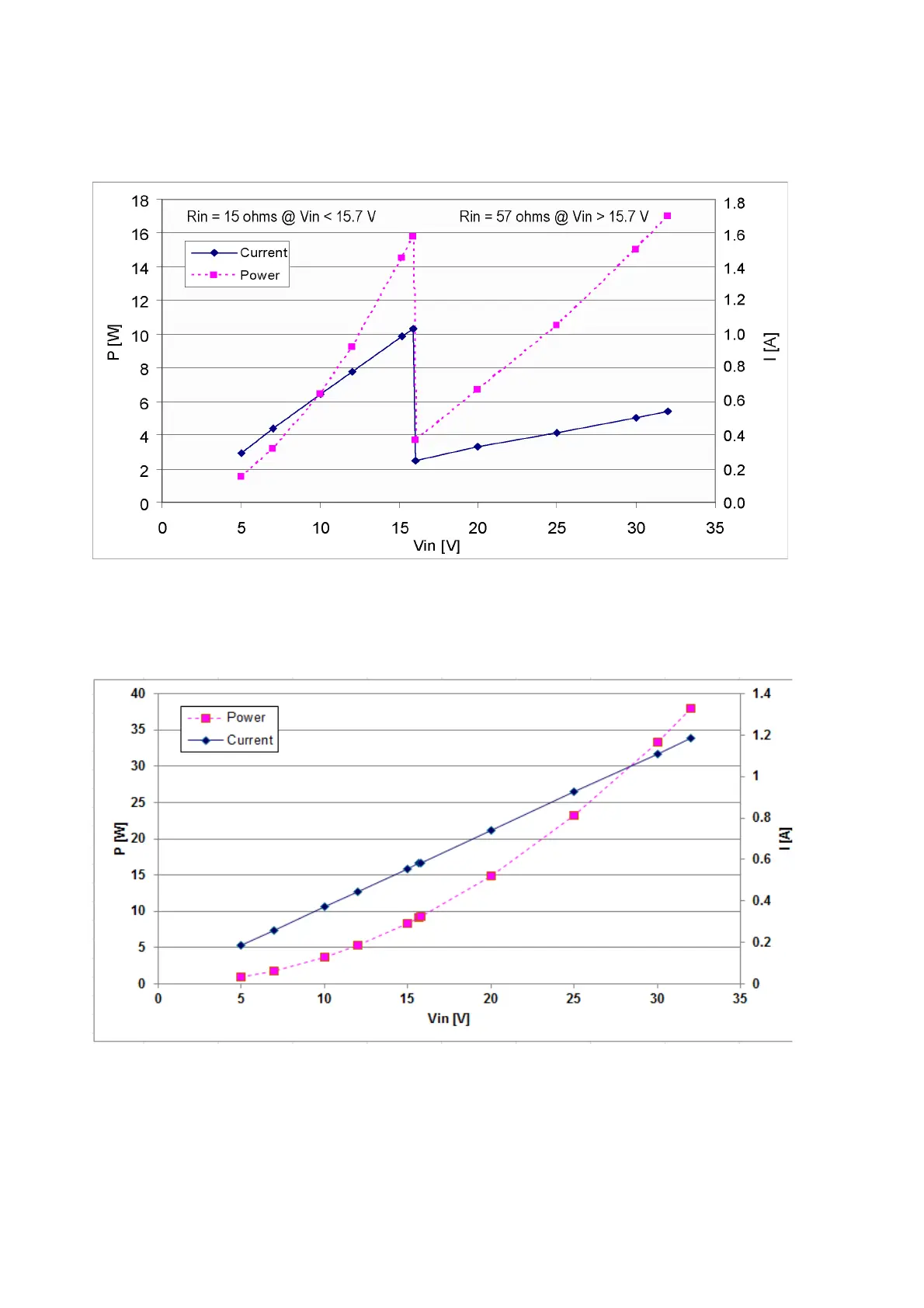

Figure 29 Heating Instant Current and Power vs Vh
(WXT536, WXT535, WXT533, and WXT532)
Figure 30 Heating Instant Current and Power vs Vh (WXT531)
The power supply must meet the values shown above.
