Optional features
The WXT530 series includes the following optional features. For a
complete list, see Table 40 on page 179. Note that you must select these
options when placing the order.
USB Cables
1509-029

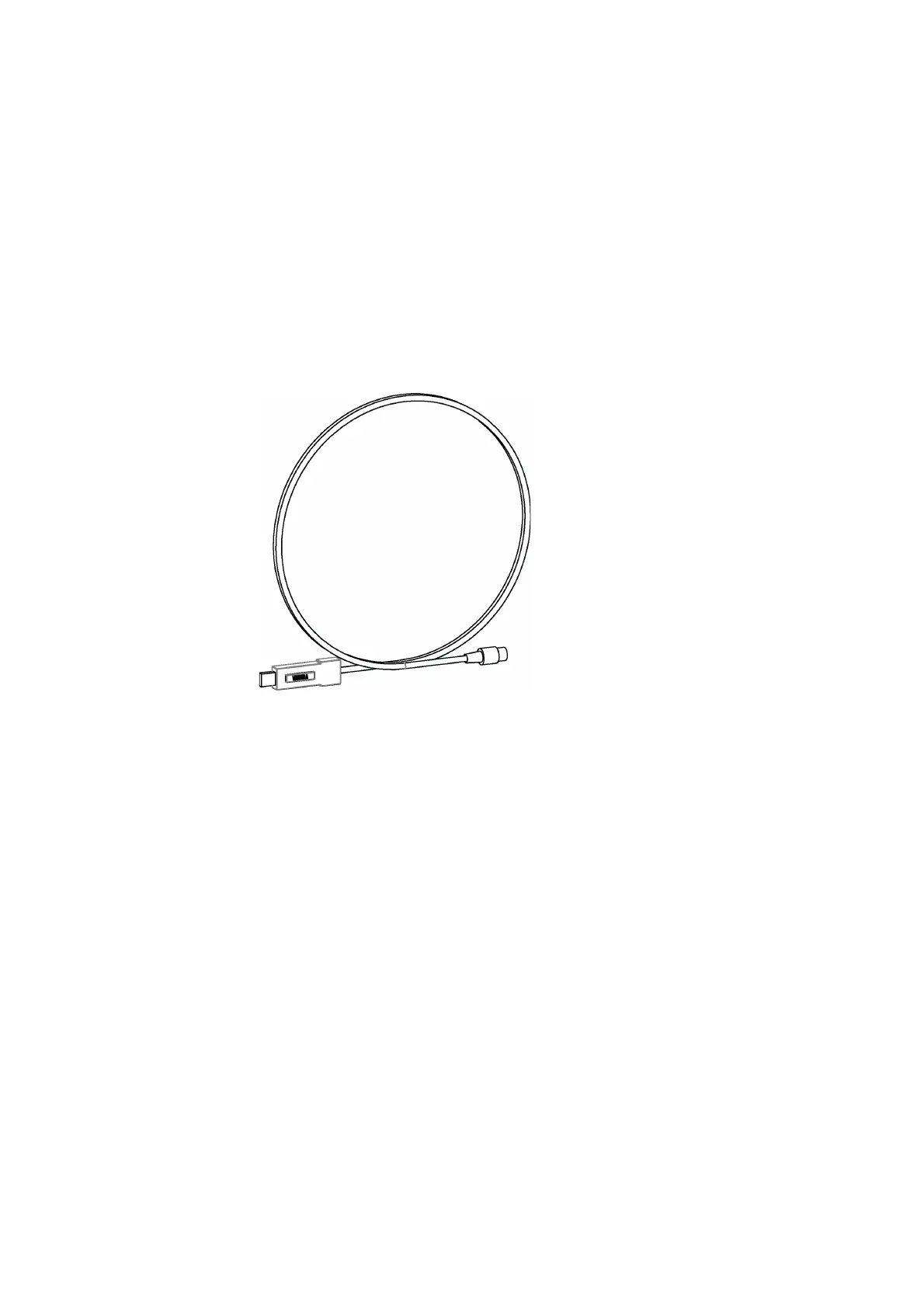

Figure 9 USB Cable
The service cable, while connected between the service port and PC,
forces the service port to RS-232 / 19200, 8, N, 1. Note that you need a
driver for the USB cable.
1 = USB RS-232/RS-485 cable with 8-pin M12 threaded
connector (1.4 m)
2 = USB service cable with 4-pin M8 threaded connector (1.4 m)
