Section 3 - Basic Features MC095 - MCP-8 Control Unit
20
Mounting the MCP-8
Depending on the unit, the MCP-8 is mounted using either a Standard mounting system, or a Swivel mount if using
remote display touchscreen 138xx021.
The Standard mounting system is used with:
074xx071 (stand-alone)
074xx072 (remote display)
074xx062 (stand-alone, used with Tri-Valve Boardrunner)
074xx063 (remote display, used with Tri-Valve Boardrunner)
This system is used for either wall or panel mounting.

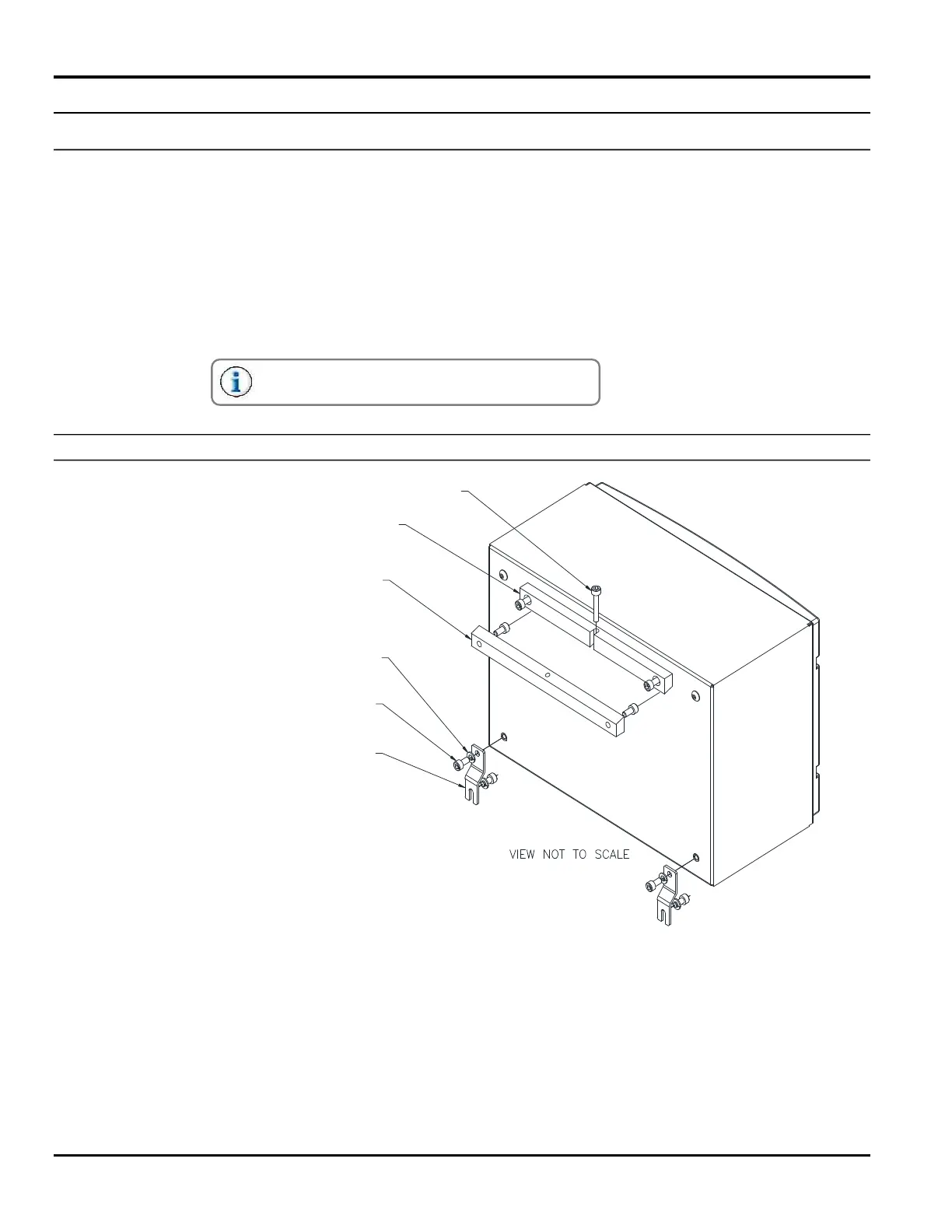

Standard Mounting System
583XX412, MOUNTING RAIL.
DRILL & TAP (2) M6 X 1.0 HOLES AT 8.0" CENTERS
AND MOUNT RAIL TO WALL WITH SUPPLIED SCREWS.
583XX414 MOUNTING FOOT.
AFTER MOUNTING THE TWO MOUNTING RAILS,
ASSEMBLE THE MOUNTING FEET TO ENCLOSURE,
HANG CONTROL ON THE WALL TO MARK THE
LOCATION FOR THE TWO MOUNTING FEET.
DRILL & TAP FOR M6 X 1.0 SCREWS.
AFTER FEET ARE FASTENED IN LOCATION,
TIGHTEN THE M6 X 35 SOCKET HEAD CAP SCREW.
798XX069, M6 X 12 SHCS
(8) PLACES
784XX600, M6 LOCKWASHER
(4) PLACES
884XX105, M6 X 35 SHCS
583XX413, MOUNTING RAIL.
MOUNTS TO ENCLOSURE.
Figure 3-2. Standard Mounting System
