Valve Buttons
There are 9 Valve Buttons: the Purge Button and Valve Buttons 1 through 8.
Pressing the Purge Button allows you to turn the Manual Purge Mode on and off.
When the Purge Button LED is on, Manual Purge Mode is on. In this
Mode, the Valve Buttons act as “purge buttons.” When the LED is
off, the Valve Buttons turn the valves on and off.
Pressing the individual Valve Button(s) WHEN THE MANUAL PURGE BUTTON IS NOT ILLUMINATED tells the
MCP-8 control which valve you are going to use for the job you will run. The LED in the upper Left hand side of the
Buttons indicates which valve is selected.
Configuring the Valve/Channel Settings
The settings are preprogrammed for the specific application selected. It is best not to change any setting unless you
are a trained technician and/or have assistance from a member of the Valco Technical Assistance Team.
CAUTION! Changing settings may bring unwanted consequences in the performance of your system.
Valco Cincinnati, Inc. recommends having a qualified technician setup your system
parameters. Otherwise, loss of production time may result from improper settings.

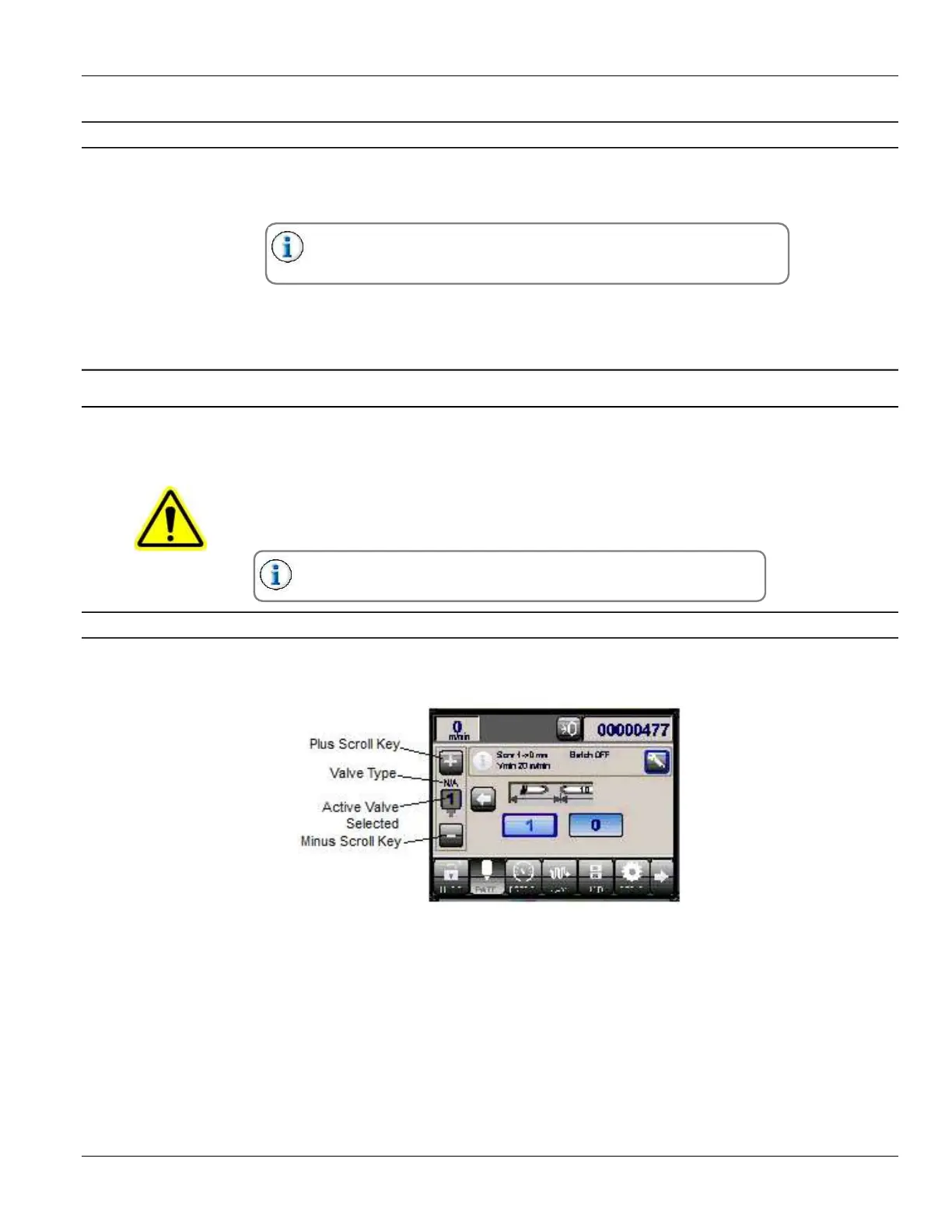

All screens for configuring the valves/channels are available in all
applications.
Valve Selection
The Valve Selection Keys allow the operator to scroll between active valves. The selected valve number and type are
displayed. Use the arrow keys to highlight “+” or “-”, and then press OK to scroll.
