Section
3 - Basic Fe
atures
MC095
- MCP-8
Cont
rol Unit
26

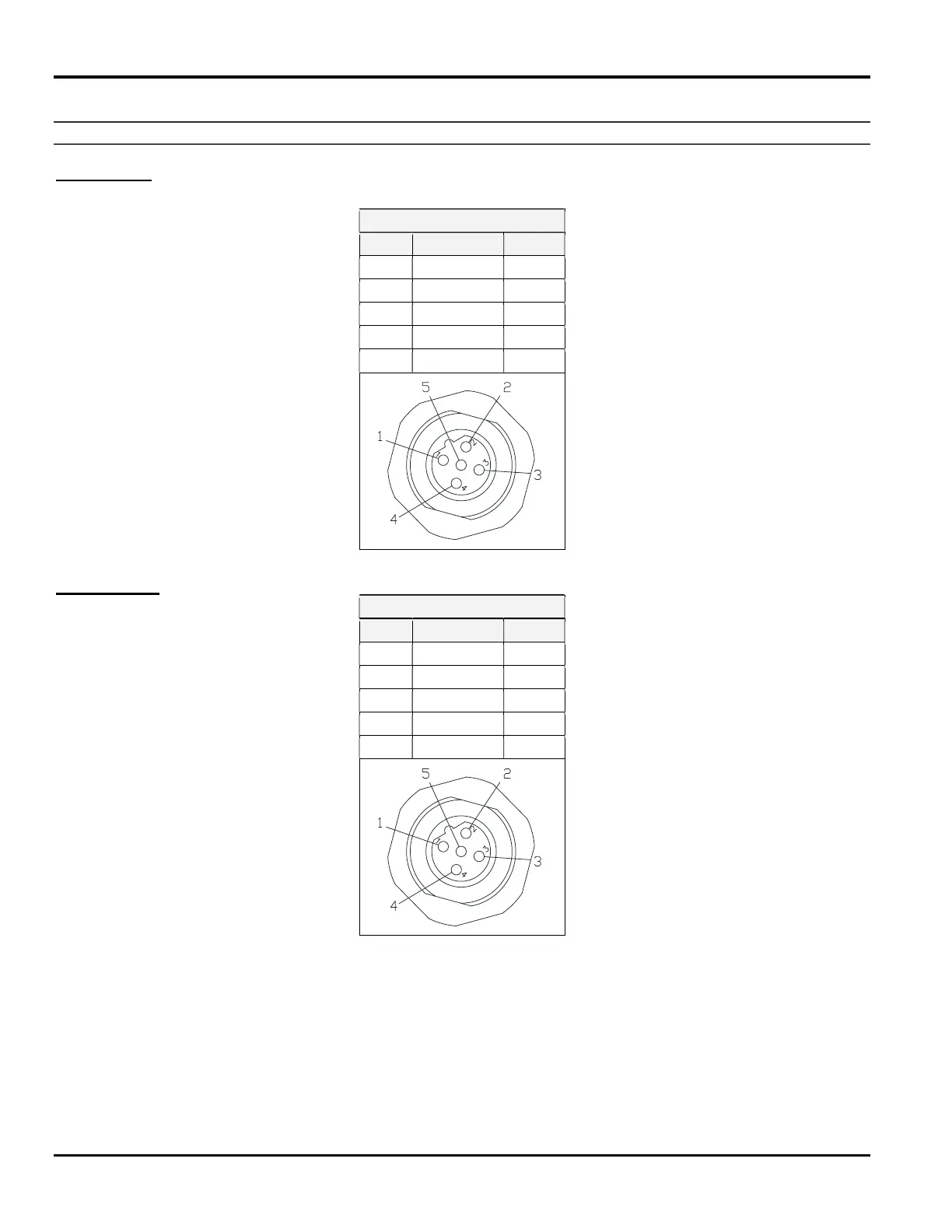

Pinouts, St
andard
Valve Outp
ut
Valve Out
put
Pin #
Descript
ion
Color
1
Coil Return
Brown
2
Coil Out
White
3
GND
Blue
4
Purge
Black
5
GNDE
Gray
Scanner Inpu
t
Valve Out
put
Pin #
Descript
ion
Color
1
+24V Fused
Brown
2
PNP Input
White
3
GND
Blue
4
NPN Input
Black
5
GNDE
Gray
25
27
Table of Contents
Table of Contents
5
Section 1 - Introduction
9
System Description
9
Features/Capabilities
9
Section 2 - Safety and Use
11
Read Thoroughly before Handling Equipment
11
Symbols
11
Owner Responsibilities
12
Limitations of Use
12
Installation/Startup/Use Safety Information
13
Shut down Safety Information
14
Hot-Melt-Specific, General Safety Information
14
What to Do if Contact with Hot Adhesive Occurs
15
What to Do if Inhalation of Adhesive Fumes Occurs
15
What to Do if Adhesive-Related Fire or Explosion Occurs
16
Hose Safety Information
17
Section 3 - Basic Features
19
MCP-8 Control
19
Front Panel
19
Unpacking
19
Mounting the MCP-8
20
Standard Mounting System
20
Standard System Mounting Footprint
21
Swivel Mount (Used with 138Xx021)
22
Swivel Mount Mounting Footprint
22
Mounting the Encoder
23
Installing the Glue Station
24
MCP-8 Connections
25
Pinouts, Standard
26
Pinouts, Tri-Valve
29
MCP-8 Valve Driver Instructions
32
Wiring the Scanner Cable
32
Section 4 - Programming
35
Programming
35
The Operator Interface Buttons
35
The Status Leds
35
Navigation and Edit Buttons
36
Enter Password
36
Password Levels
37
Level 2 Password Options
37
Protected Level Mode
37
Main Menu Buttons
38
Single Digit Vs. Thumbwheel Edit
38
Valve Buttons
39
Configuring the Valve/Channel Settings
39
Valve Selection
39
Valve Type
40
Encoder Ratio
41
Diagnostic Screen
43
Compensation Time
44
Parameter/Button Access Configuration
46
Jam Detection
49
Jam Detection Setup Menu
50
Tipsealer
51
Reversible Glue Station Setting
55
Backup (Archive)
56
Replace Micro-SD Card
58
Reprogram/Reinitialize
59
Section 5 - Operation
61
Set the Pattern Menu Information
61
Set the Pressures
66
Purge and Test Run
68
Job Screen
69
Loading a Job
69
Saving a Job
70
Deleting a Job
71
Copying a Job
71
Archive Screen
72
Service Screen
73
Section 6 - Maintenance
75
Purging the Adhesive
75
Performing Downtime Maintenance
75
Flushing the Glue System
76
Lubricating the System
76
Section 7 - Specifications
77
Section 8 - Part Number List
79
How to Order Parts
79
Unit - Standard, Stand-Alone (074Xx071)
80
Unit - Standard, Stand-Alone, for Tri-Valve Boardrunner (074Xx062)
82
Unit - Standard, Remote (074Xx072)
84
Unit - Remote Base Assembly, for Tri-Valve Boardrunner (074Xx063)
86
Rack Assembly (074Xx070)
88
Rack Assembly (074Xx058)
90
Recommended Replacement Parts
92
On PCB Assy., Power Control (151Xx719)
92
On Main PCB Assy., Valves 1-4 (152Xx715)
93
On PCB Assy., Valves 5-8 (152Xx721)
94
On PCB Assy., Tri-Valve Manifold (151Xx674)
94
Unit - Remote Display Touchscreen (138Xx021)
95
Cover Assembly (026Xx385)
97
Unit - Previous Version (074Xx060)
99
Recommended Replacement Parts
101
(On PCB Assembly, 151Xx697)
101
On PCB Assembly,152Xx715
101
Standard Mounting System
101
Wiring Diagrams
102
Flexoseal with MCP-8, Stand-Alone Standard [074Xx071]
102
Flexoseal with MCP-8, Remote Standard [074Xx072]
103
Flexoseal with MCP-8, Stand-Alone Tri-Valve Non-Contact [074Xx062]
104
Flexoseal with MCP-8, Remote Tri-Valve Non-Contact [074Xx063]
105
Section 9 - Warranty
107
Warranty Information
107
Cold Glue Equipment and Electronic Controls
107
Hot Melt Units, Hoses, Valves, Guns, and Related Equipment
107
Section 10 - Service
109
Appendix A - Job Charts
111
Appendix B - System Connectivity (Clearvision)
113
