Section 5 - Operation MC095 - MCP-8 Control Unit
66
Set the Pattern Menu Information - Continued

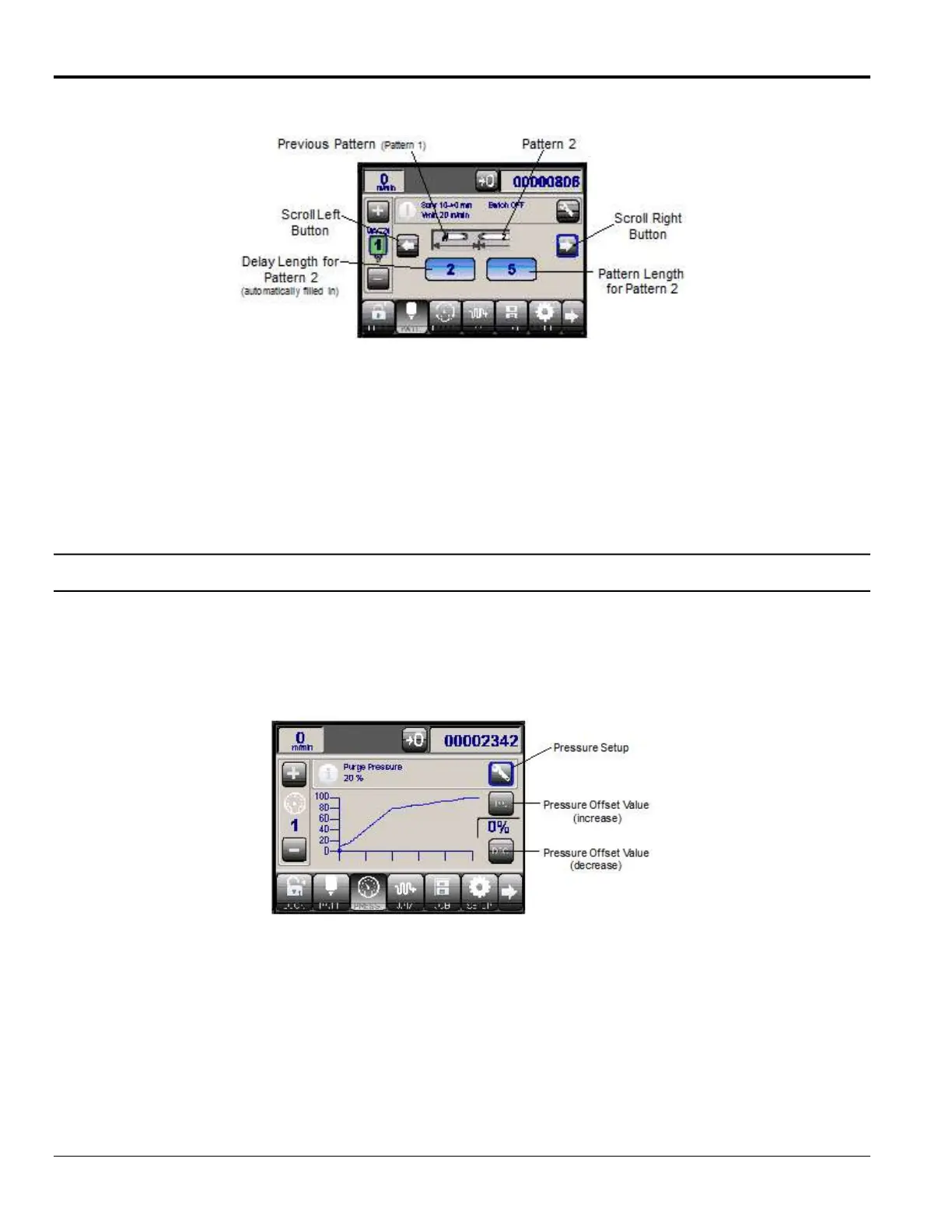

4. Press the Right Arrow Button until the scroll right button is highlighted, and then press OK to view the
Pattern Length for pattern 2. Press the OK Button to view the thumbwheel, and use the Plus/Minus
Buttons to change. Press the Right Arrow Button to highlight “Apply,” and then press OK to enter the
setting.
5. Repeat the above procedure to set pattern 3.
All three patterns are now set. You may review them using the left and right scroll buttons.
The Pattern Glue Mode for Valve 1 is now ready.
Set the Pressures
The Pressure Button is used to enter/change the Electronic Pressure Control (EPC) parameter values. The EPC
matches the fluid pressure to the machine speed, achieving consistent pattern volume. As machine speed increases,
the valve remains open for a short period of time. For the same volume of adhesive to appear on the product, the
adhesive must flow at a higher rate, achieved by increasing the fluid pressure.
Pressure Offset Value - Used to increase/decrease the current pressure. The Pressure Offset is used to do minor
pressure adjustments instantly. It does not change the pressure table profile.
Highlight the Pressure Setup Button, and then press OK, to access the Pressure Setup screen. This screen allow scrolling (plus and minus keys)
through a set of pressure setup menu keys.
