MC095 - MCP-8 Control Unit Section 5 - Operation
65
Set the Pattern Menu Information - Continued
SETUP EXAMPLE: The following is an example of setting up a pattern gluing mode (Standard) with three patterns for
valve one:
1. Set the Delay Length for pattern 1. The Delay Length for pattern 1 is the measurement from the first edge
of the product to where you want the first glue line to start.

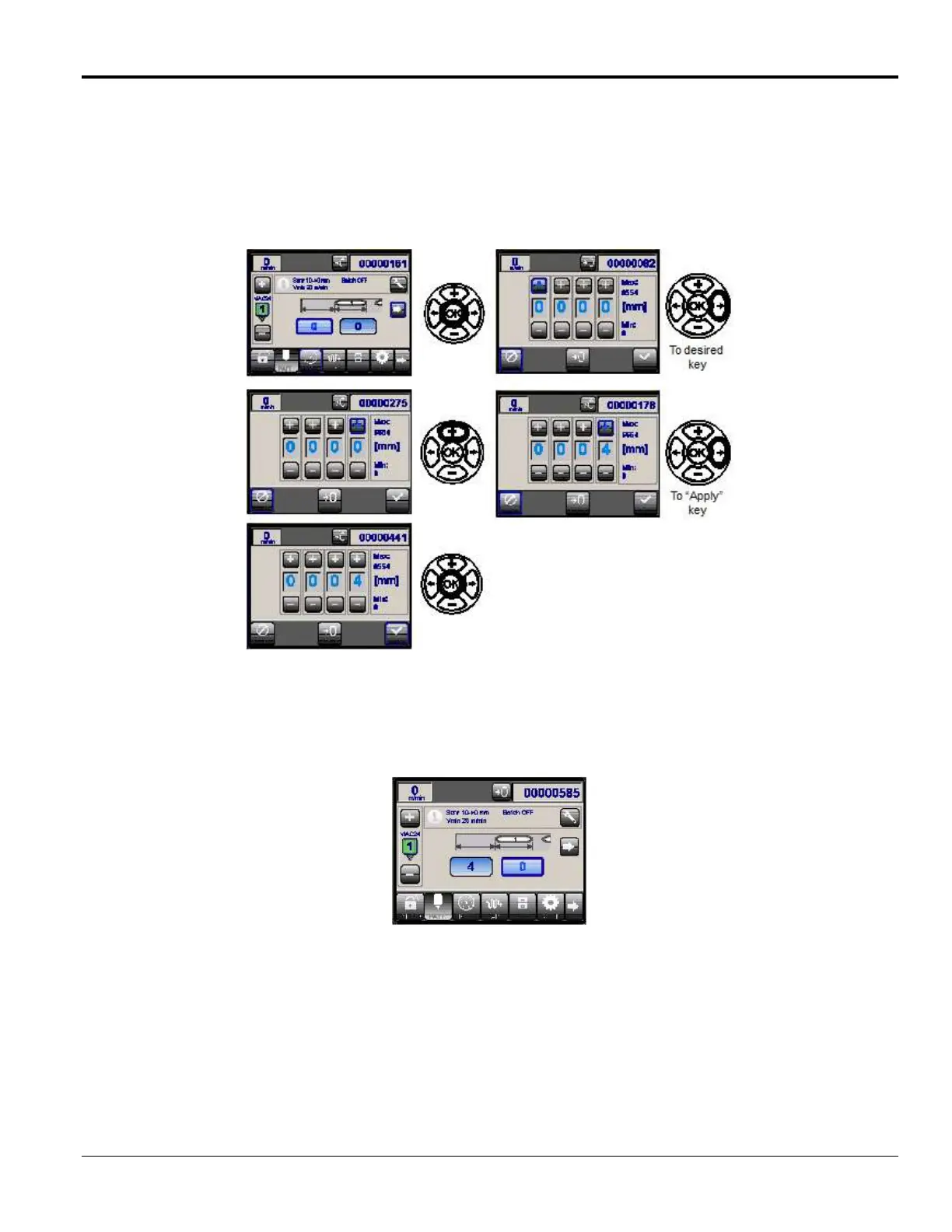

2. Press the Right Arrow Button to view the Pattern Length for pattern 1. The Pattern Length is the length of
the glue line (for the pattern number indicated). Press the OK Button to view the thumbwheel, and use the
Plus/Minus Buttons to change. Press the right arrow button until “Apply” is highlighted, and then press the
OK Button to enter the setting.
3. Press the Right Arrow Button until the scroll right button is highlighted, and then press Okay to view the
Delay Length for pattern 2. The control automatically fills in the Delay Length for pattern 2 (so the next
pattern does not interfere with the previous pattern). This number can be adjusted if desired.
To Next Page
