MC095 - MCP-8 Control Unit Section 3 - Basic Features
31
Valve Connections
Valve Connections
Pin # Description Color Panel Ref.
Ch. 1-4
1 V1 RET Brown J1-1
2 V1 OUT Blue J2-2
3
V2 RET
White
J1
-
3
4 PE Green J1-4
5 V3 RET Yellow J1-5
6 V3 OUT Gray J1-6
7 V4 RET Pink J1-7
8 V4 OUT Red J1-8
9 PURGE GND Black J1-9
10 PURGE V1 Orange
J1-10
11 PE Tan J1-11
12 V2 OUT Violet J1-12
Ch. 4 only
1 V4 RET Brown J7-1
2 V4 OUT White J7-2
3
NOT
CONNECTE
D
Blue
J7
-
3
4 PURGE GND Black J7-4
5 PURGE V4 Gray J7-5

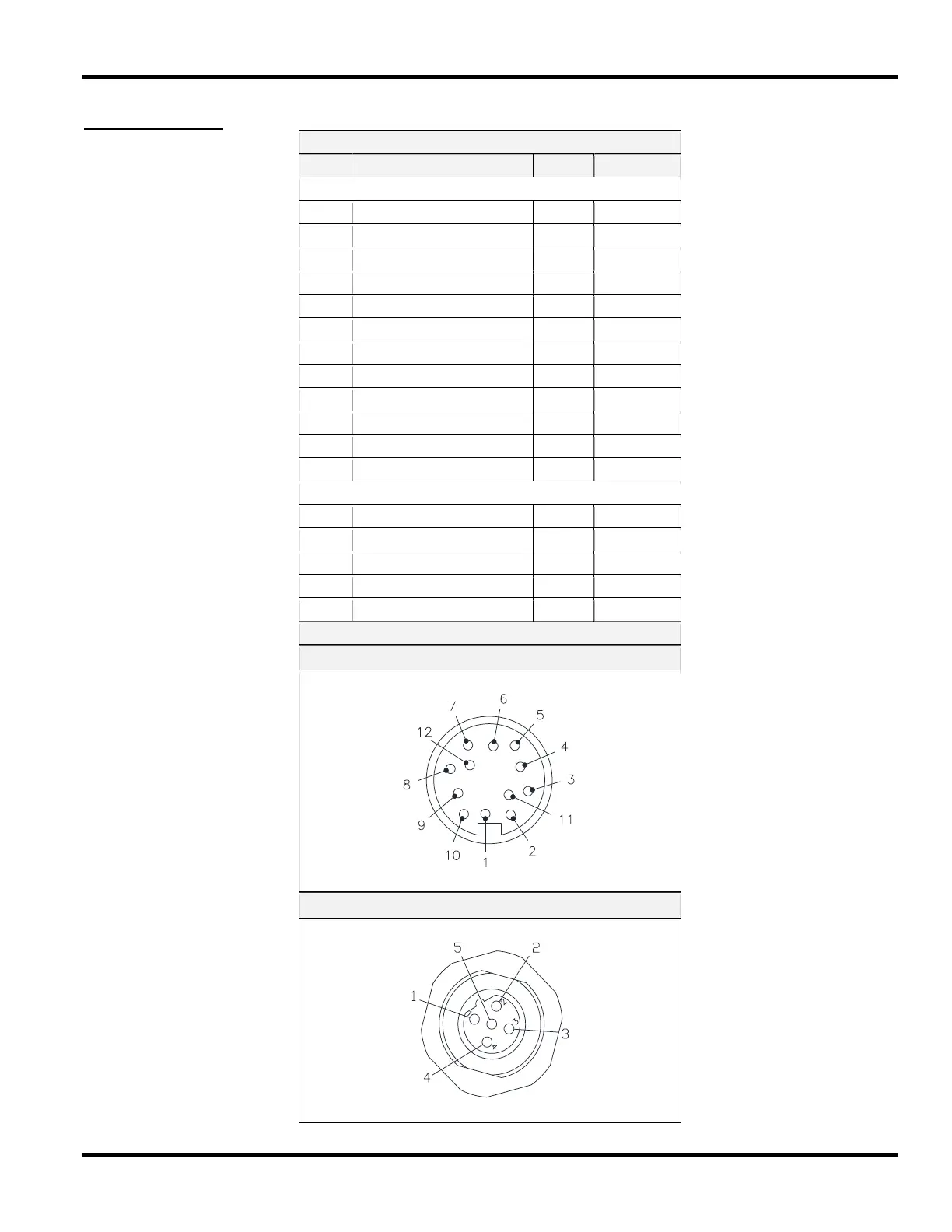

Pinout Drawing
Ch. 1
-
4 (J1)
Ch. 4 Only (J7)
