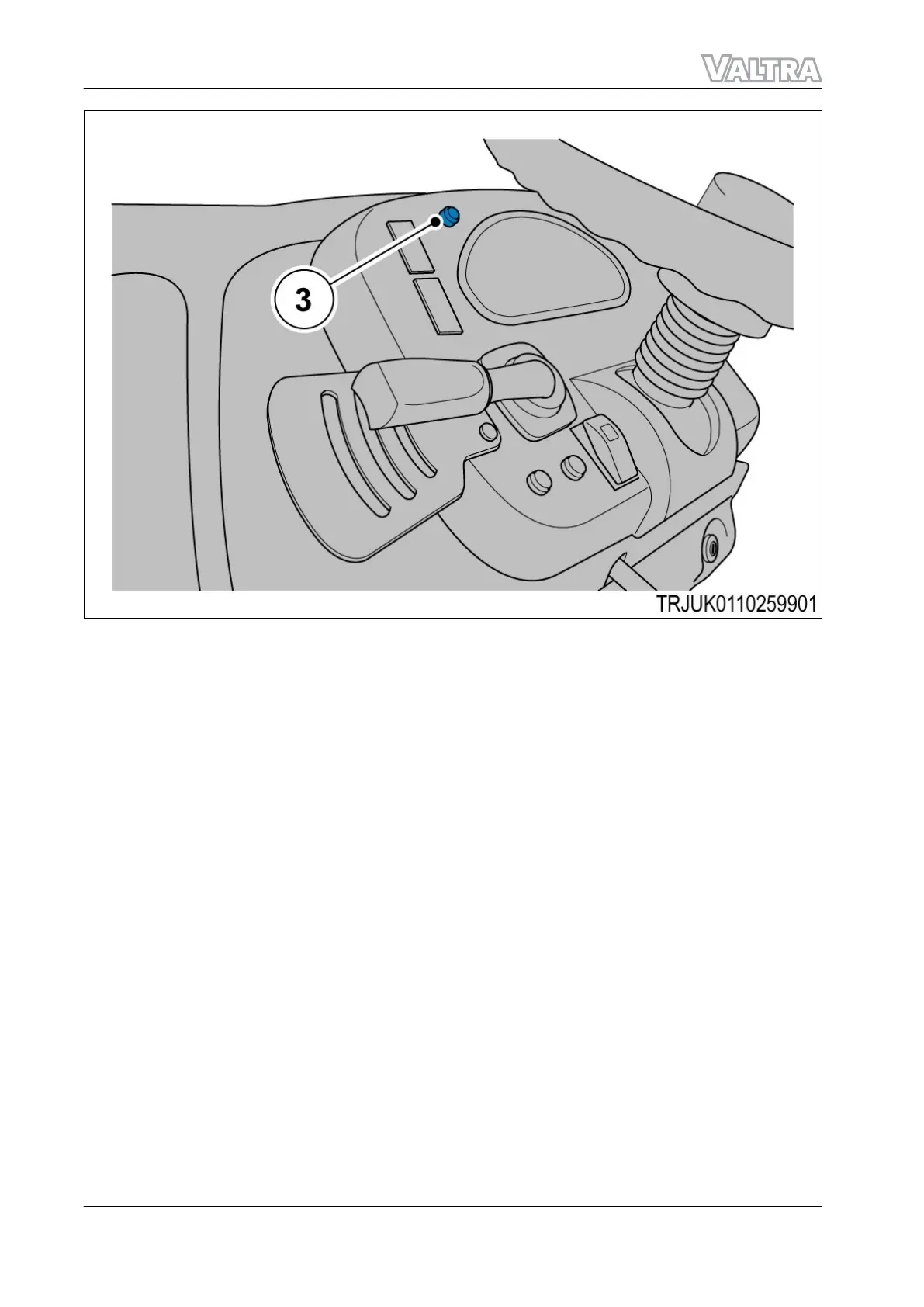

Fig. 121
The warning lamp (3) shows the malfunctions of the brake system and, or shows when you use the
parking brake. If you press the warning lamp, the system does a check of the operation of the parking
brake. It simulates use of the parking brake and if you try to move the machine, you get resistance from
the trailer parking brake.
Do not tow equipment that does not have brakes:
• At speeds more than 32 km/h.
• When the full load has a weight above 1.5 t and more than 1.5 times the weight of the machine unit.
Do not tow equipment that has brakes:
• At speeds more than 40 km/h
• When the full load has a weight more than 4.5 times the weight of the towing unit.
The distance necessary to stop the machine increases on slopes and with the speed and weight of the
towed load. Towed loads with or without brakes that are too heavy for the machine, or that you tow too
quickly, can cause loss of control. Look at the total weight of the equipment and its load.
3. Operation
112 F Series
39940211 (555124)
