ROPS version
GUID-E81D305B-D612-4806-B4B0-50FEAC628F63-high.jpg [High]

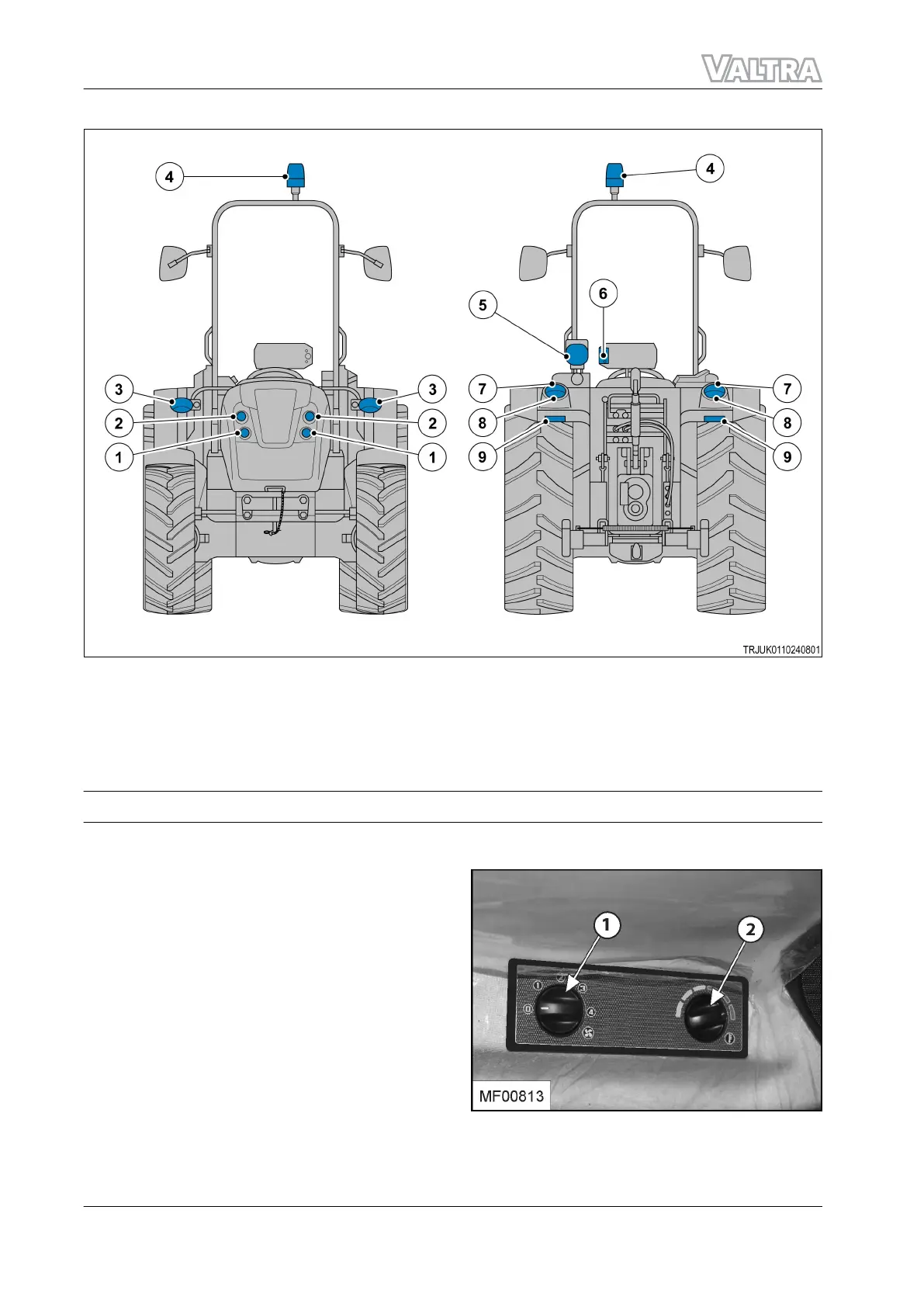

Fig. 63
1
High beam lamp
2 Low beam lamp
3 Position lamp, direction indicator
4 Rotary beacon
5 Work lamp
6 License plate lamp
7 Direction indicator
8 Position lamp, stop lamp
9 Reflector
3.1.15 Heater and Air conditioner Controls
Heater
The cab has been designed to produce
comfortable working conditions for the operator
with all the windows closed. Fresh air can be
brought in from outside the cab or the heated or
cooled air within the cab can be recirculated. The
controls are as follows:
1 Blower Control
2 Heat Control
GUID-D0F756AB-13B7-4A73-9615-5988D05E9F4A-low.png [Low]
Fig. 64
GUID-0F9136FE-E8E7-4E4F-8A8B-26B243B60EDA [V1]
3. Operation
82 F Series
39940211 (555124)
