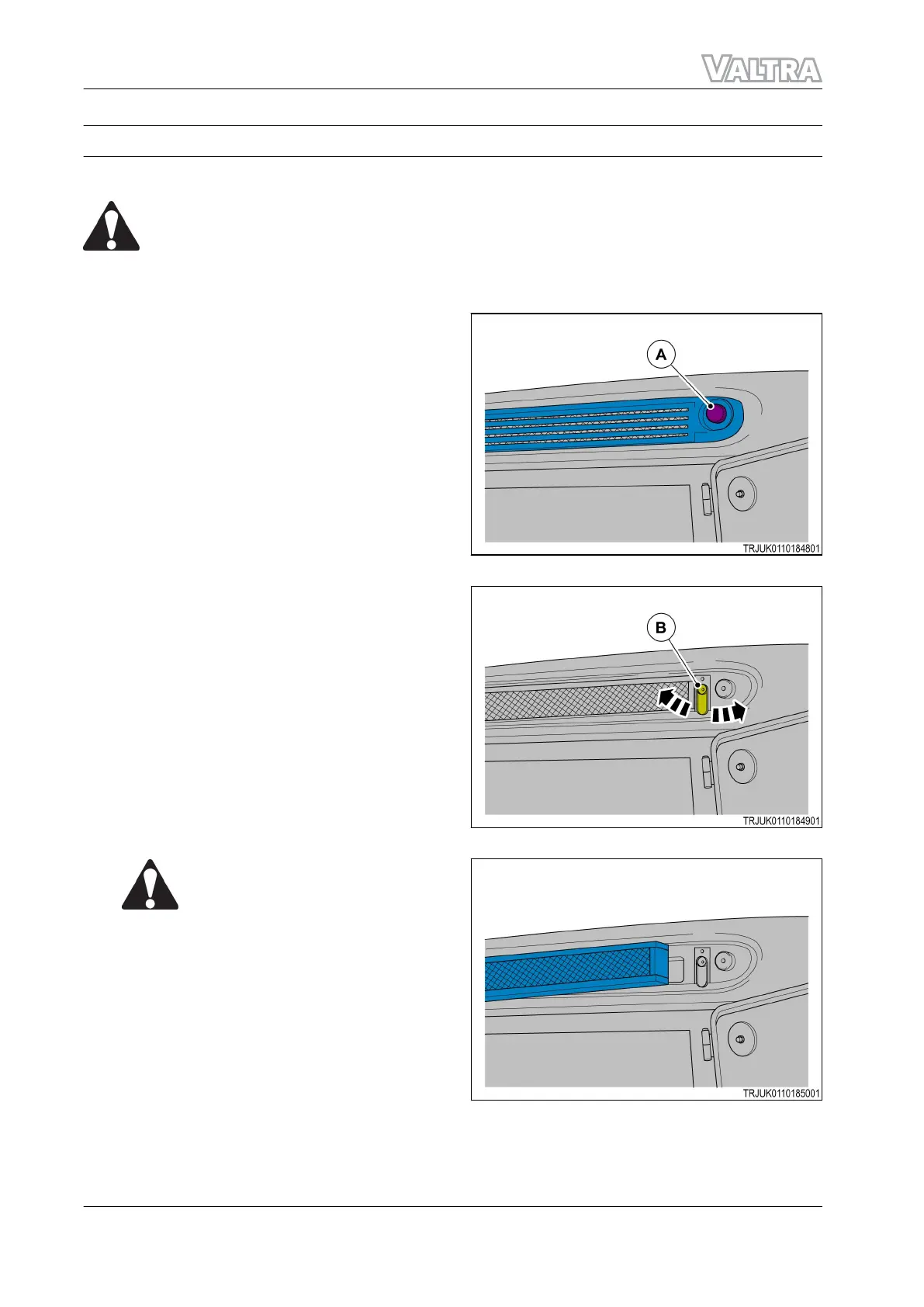

4.12.10 Remove and clean the cab air filters
Before starting the procedure
WARNING: Falling o, or into the machine.
Falls from height cause death or injury.
Use the applicable access equipment when you do work at height.
Procedure
1. NOTE:
Remove the 2 fasteners (A) and the cover on
each side of the cab roof.
GUID-7C18F3FA-26E4-4460-971C-027B99C0B74E-high.jpg [High]
Fig. 84
2. Turn the levers (B) to release the cab air
filters.
GUID-AC573991-3928-47F0-AB48-DDDDBC6577FA-high.jpg [High]
Fig. 85
3. CAUTION: PPE is mandatory.
This procedure can cause injury.
Put on Personal Protective
Equipment (PPE) when you do
this procedure.
Remove the cab air filters. Use compressed
air to clean the cab air filters if it is necessary.
GUID-F7ED6F11-C97C-41B7-AE76-211F81D3B586-high.jpg [High]
Fig. 86
NOTE:
Before installation of the cab air filters, clean out the compartments with a moist cloth to remove
dust.
