4.2.5 Engine Fuse Box

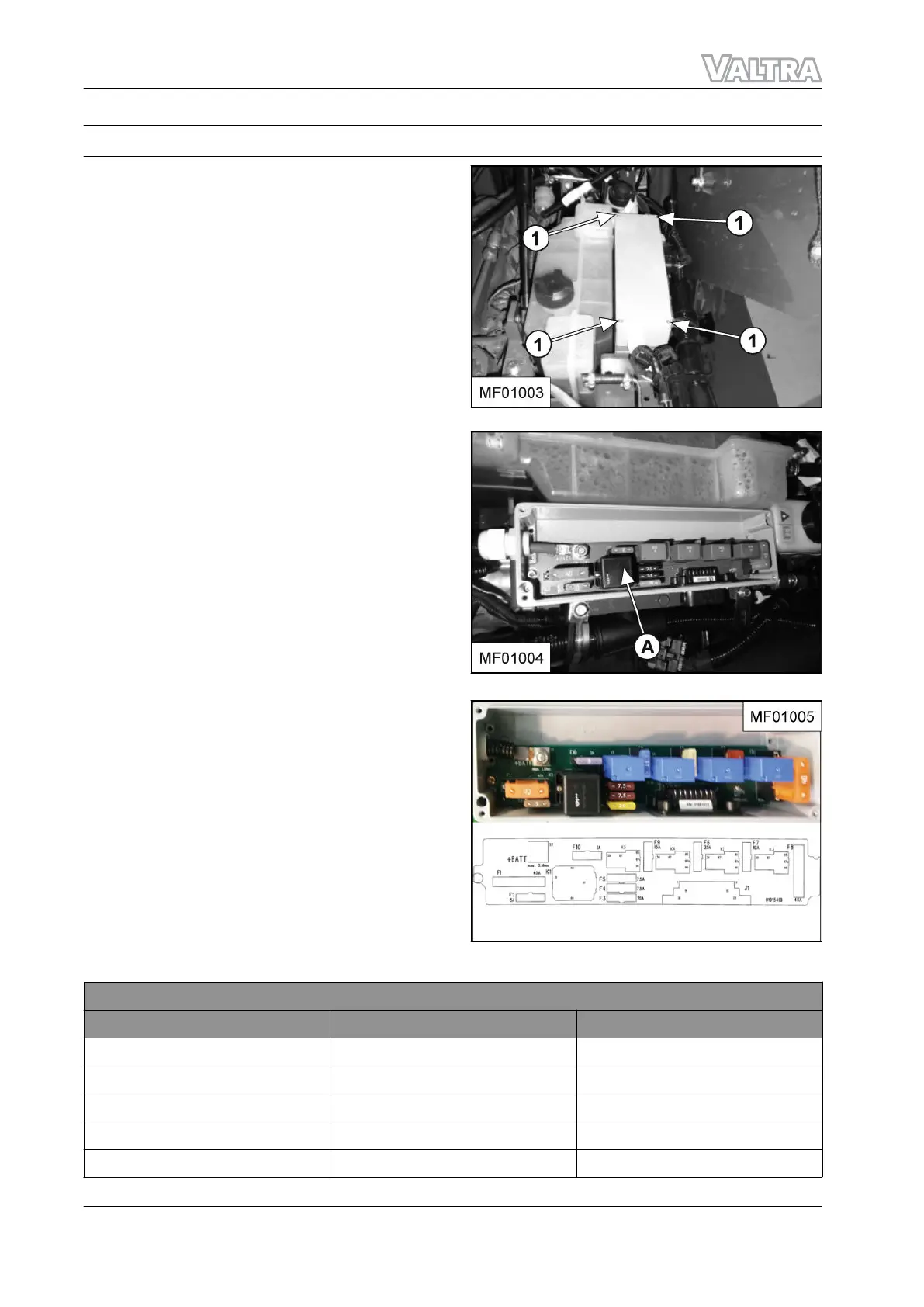

The engine fuses and relays box (A) is located over
the engine hood near the coolant tank.
Loosen the screws (1) and remove the cover to
access the fuse box (A).
GUID-70E1E438-E05A-4EA1-AD44-C051D1183EAB-low.png [Low]
Fig. 24
GUID-90E0758D-9936-4E9D-87B9-23AE1A8366B7-low.png [Low]
Fig. 25
GUID-A8C75C64-51F9-4634-A125-EF042B1136BE-low.png [Low]
Fig. 26
FUSES
Position Type Function
F1 40 A Main fuse
F2 5 A Main fuse Main Relays solenoid
F3 20 A ECU pin 3-5
F4 7,5 A ECU pin 1
F5 7,5 A Relay solenoids power supply
