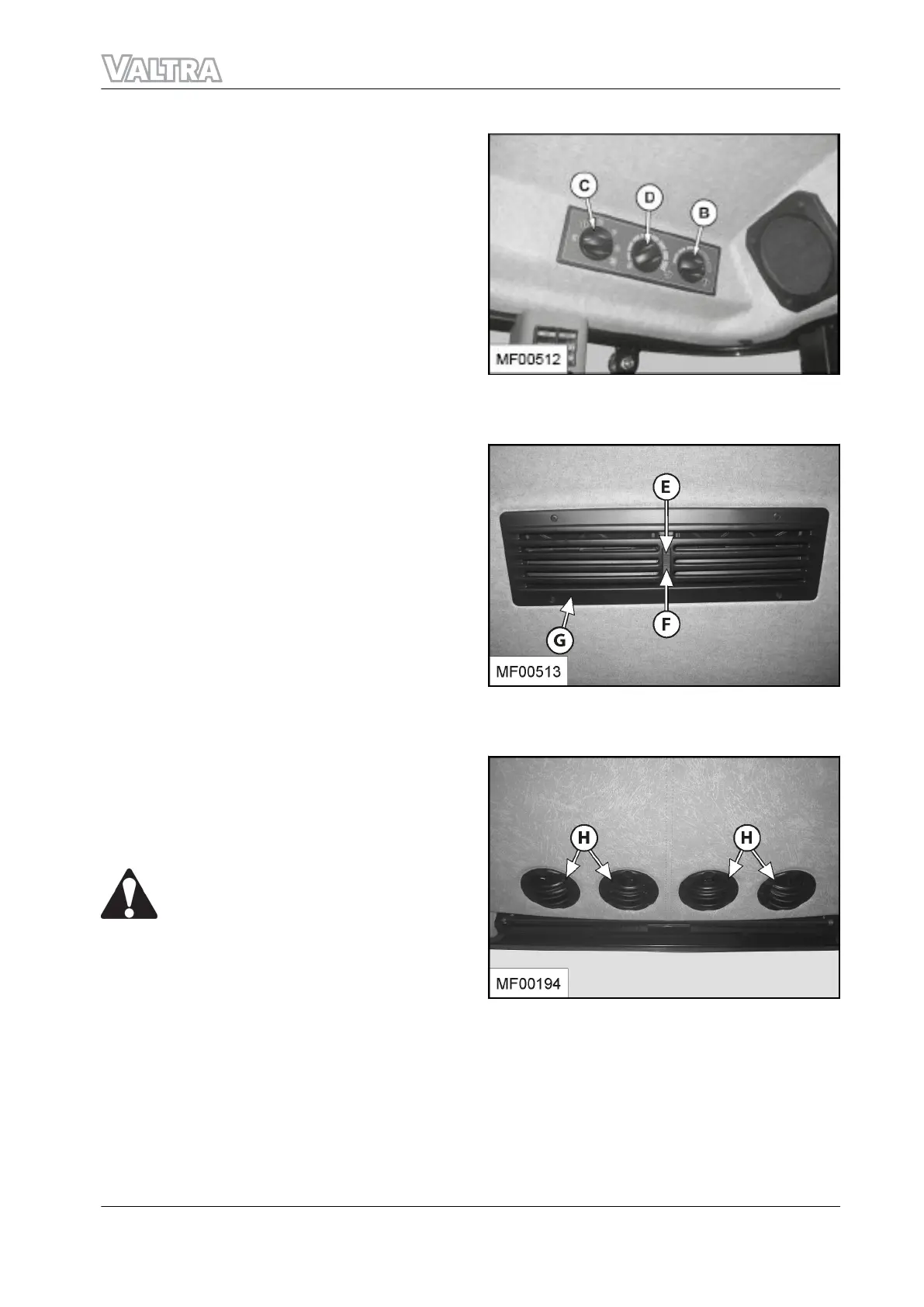

Air Conditioner
The cab has been designed to produce
comfortable working conditions for the operator
with all the windows closed. Fresh air can be
brought in from outside the cab or the heated or
cooled air within the cab can be recirculated. The
controls are as follows:
1 Blower Control
2 Temperature Control
3 Air conditioner Control
GUID-EAB90125-F0AA-4305-B8C7-E7ED86CC19E3-low.png [Low]
Fig. 65
Air Recirculation Control
Move control to the RIGHT (close) to maximise
fresh air into the cab. Moving the control LEFT
(open) will recirculate the air in the cab. The
recirculated air will pass through the vents (G) air
filter and back into the blower:
E Recirculated air - UP.
F Outside air - DOWN
Fresh Air Operation
Close the air recirculation control (E) to obtain
fresh air from outside the cab. This gives the
maximum cooling eect with the air conditioning
OFF.
GUID-A46DE352-B300-4D84-9AB2-D872A1A66098-low.png [Low]
Fig. 66
Air Flow Louvres
Fresh air entering the cab from the outside, passes
through the air filter, blower, heater and air
conditioner evaporator. It is blown through a set of
four adjustable louvres (H) above the windscreen.
Heating and Ventilating Operation
WARNING:
The cab air filter is designed to
remove dust from the air but may not
exclude chemical vapour. Follow the
chemical manufacturer’s directions
regarding protection from hazardous
chemicals.
GUID-4DBFE44B-06E8-49DB-AC0F-9C7A707D3ACA-low.png [Low]
Fig. 67
3. Operation
F Series 83
39940211 (555124)
