Transmission / hydraulic system oil level
CAUTION: Risk of machine damage.
Transmission failure.
Do not start the engine if the oil level
is below the minimum level.
CAUTION: Risk of machine damage.
Hydraulics failure.
Some implements use a large volume
of oil to operate their hydraulic
systems. Fill the hydraulic oil to the
maximum level if it is necessary.

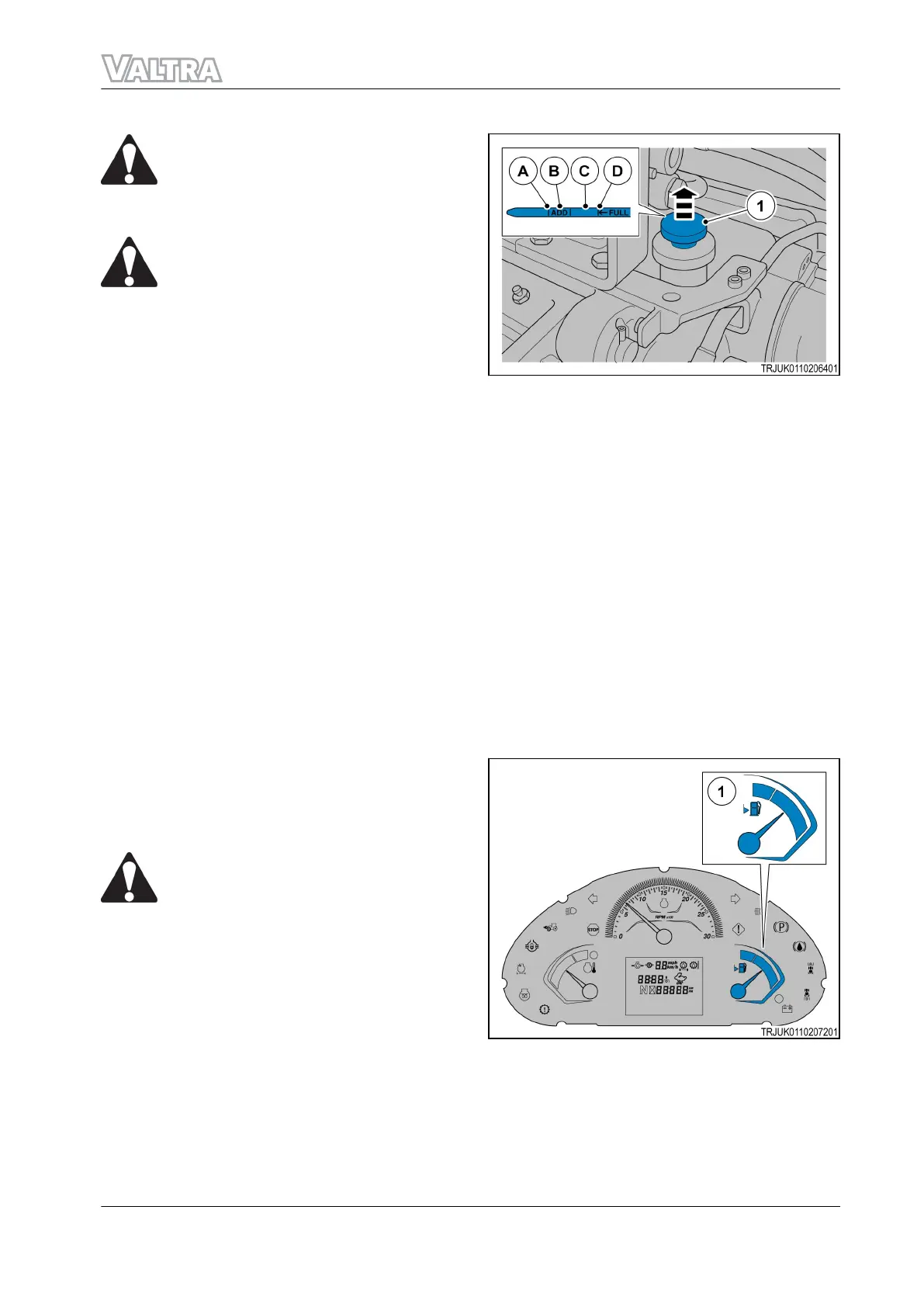

Do a check of the transmission oil level.
Remove the dipstick (1) and clean the dipstick oil
level marks. Install the dipstick fully.
Remove the dipstick again and do a check of the
oil level:
• Minimum level, fill up before you start the
engine (A).
• Fill up directly (B).
• Standard oil level (C).
• Maximum level (D).
Do not start the engine if the level is below the
minimum level. Fill up with the specified oil until it
is at the standard oil level.
Make sure that the oil level always is above level A
on the dipstick.
GUID-8ED4962D-253D-447F-B0B4-D5AD55C146C1-high.jpg [High]
Fig. 146
Quantity of fuel
Diesel fuel must be filled through the fuel tank
filler with the engine stopped and applicable
precautions to prevent dirt going into the fuel tank.
Do a check of the fuel level.
WARNING: Risk of fire.
Damage to the machine and risk of
death.
Do not smoke while refuelling. Clean
the fuel tank filler cap and the
adjacent area.
Look at the indicator (1) on the instrument panel to
see the fuel level.
Do not run out of fuel. Bleeding the fuel system
will be necessary.
GUID-407CB061-60EF-4855-ABF1-7AE40 00C4670-high.jpg [High]
Fig. 147
3. Operation
F Series 127
39940211 (555124)
