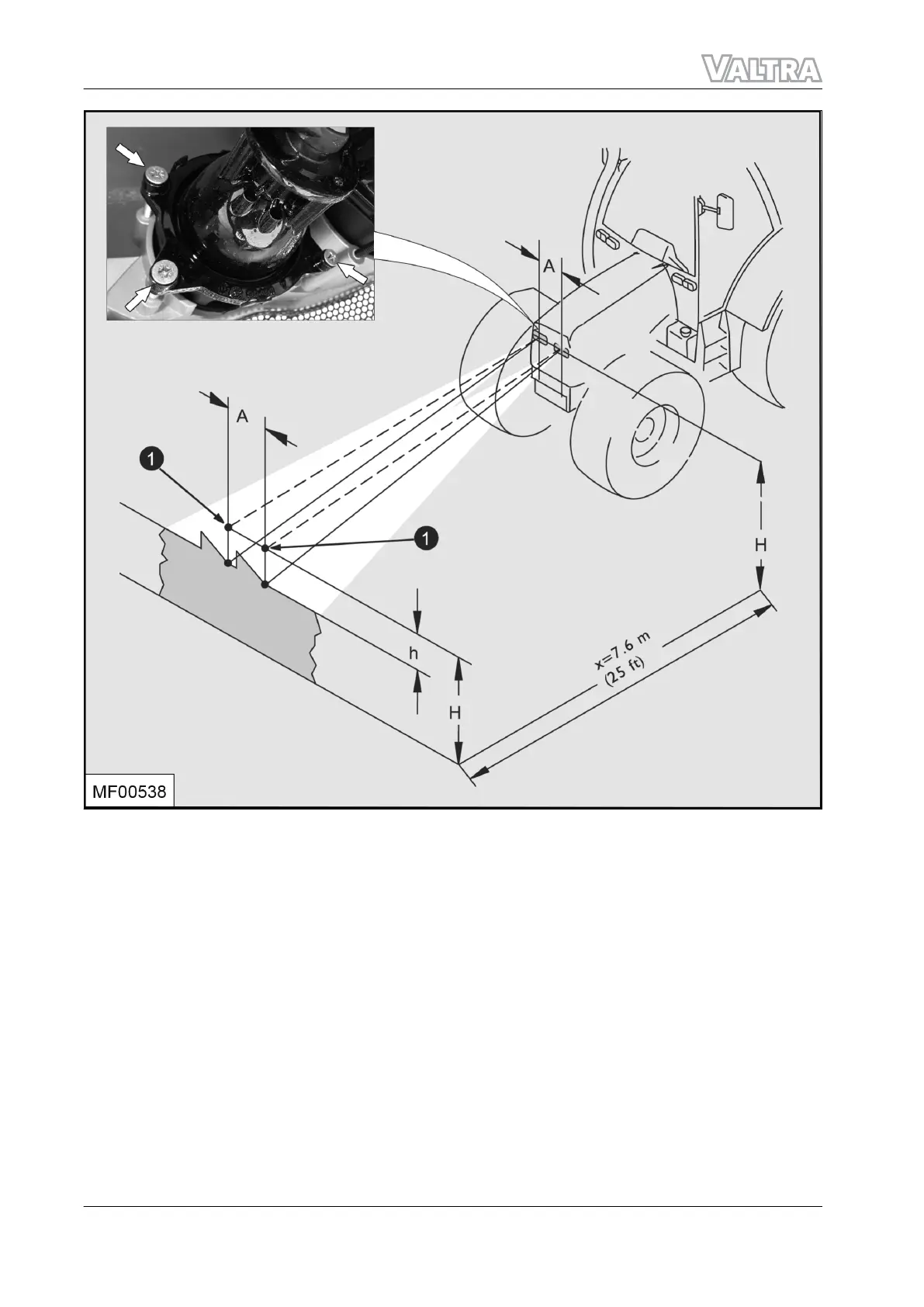

Fig. 29
(1)
points on the wall corresponding to the centers of the headlights
(A) distance apart of headlights
(H) height of headlights
(h) distance of the centre of the beam from the horizontal axis
(X) distance between headlights and wall
Turn the adjuster nuts on the studs indicated by the arrows in the figure to move the beam in a vertical or
horizontal direction.
NOTE:
In order to determine the points on the wall corresponding to the centres of the headlights, we
recommend that you bring the tractor up to the wall with the low beam headlights on, mark the centres on
the wall and then move back to a distance of 7.6 m from the wall.
To adjust the beam:
• Position the tractor facing a wall or screen 7.5 m away, distance (X).
• Draw a horizontal line on the wall or screen (1) the same as center height of the headlights from the
ground (H).
• Draw two vertical lines (1) the same as the horizontal center to center distance between the headlights
(A).
