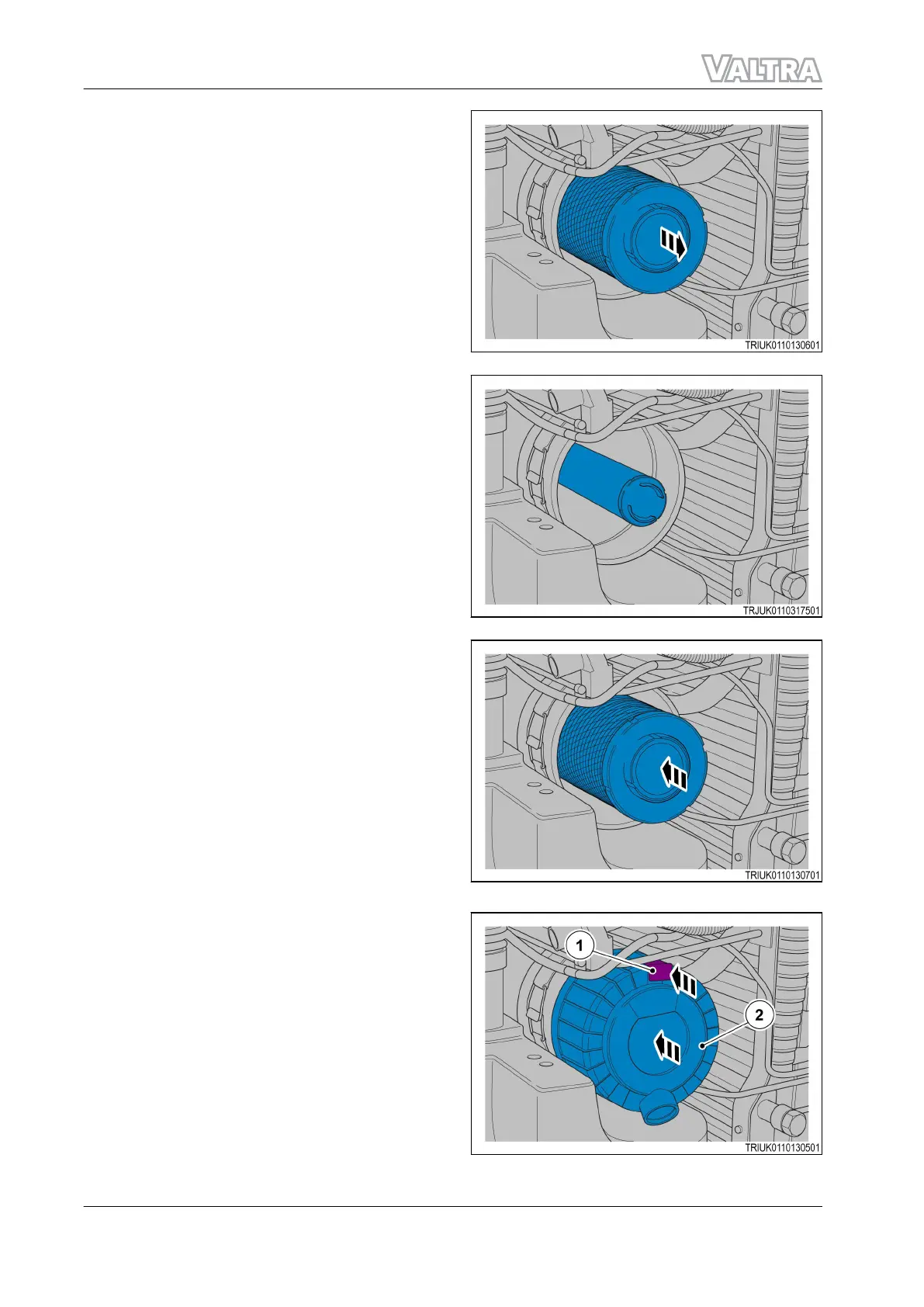

3. Remove the primary filter element from the
air filter housing.
4. NOTE: You can only clean the primary filter
element a maximum of 5 times. You must
replace the primary filter element after 1500
hours (or 2 years) of operation.
Examine, clean or replace the primary filter
element.
GUID-E961E209-7428-4D9C-A9F3-404504BF4032-high.jpg [High]
Fig. 102
5. NOTE: Do not try to clean the secondary
filter element, you must replace it.
Remove and examine the secondary filter
element. Make sure that it is not damaged.
6. Install the secondary filter element.
GUID-05618E28-3050-4B76-9A99-F6CABD4FE409-high.jpg [High]
Fig. 103
7. NOTE: Make sure that you install the rubber
seal correctly.
Install the primary filter element into the air
filter housing.
GUID-5642AC60-BA62-404C-94BB-2D33AC66F203-high.jpg [High]
Fig. 104
8. Install the air filter cover (2), turn the cover
clockwise to lock it in position. Make sure
that you install the clip (1) correctly.
9. IMPORTANT: Do not start the engine if the
installation of the filter elements and the
cover is not correct.
Close the engine cover.
GUID-85E26B99-02F4-4981-BE16-E63AC236C5FA-high.jpg [High]
Fig. 105
4. Maintenance
198 F Series
39940211 (555124)
