6. Loosen the bleed screw (C).
7. Remove the fuel pre-filter (E) and the fuel
filter (F).
8. Clean the mating surfaces on the machine
and then lubricate the gaskets on the new
filters.
Install
9. Install the new fuel filters (E) and (F) and
tighten them with your hands. The specified
torque is 20 Nm.

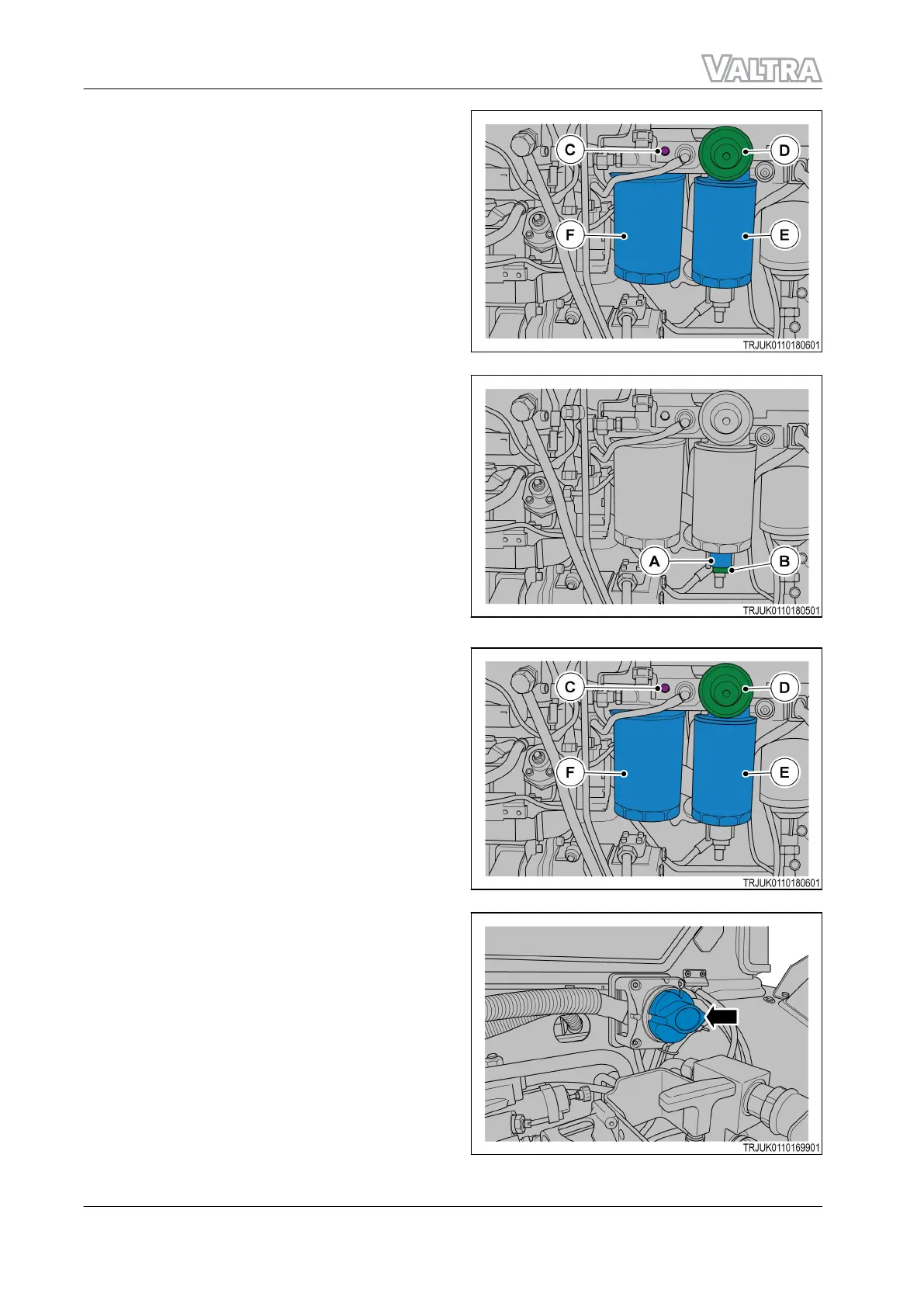

GUID-80461081-35C4-4EC0-BA27-BB985F8FE1E0-high.jpg [High]
Fig. 111
10. Tighten the water-in-fuel sensor (A) by hand.
GUID-7593D987-74BB-4C17-8133-8E5405DF0520-high.jpg [High]
Fig. 112
11. Operate the hand pump (D) until the fuel
flows at the bleed screw (C).
12. Tighten the bleed screw (C) when there is no
air in the system.
13. Connect the connector (B).
GUID-80461081-35C4-4EC0-BA27-BB985F8FE1E0-high.jpg [High]
Fig. 113
14. Set the main switch to ON.
15. Start the engine and let it operate at idle
speed for approximately 5 minutes to
remove remaining air. Examine the fuel
system for leaks.
IMPORTANT:
If you find a large quantity of water in the
pre-filter, it is necessary to drain the fuel
tank.
GUID-1B15357E-1844-4A55-9707-521779B4ABBC-high.jpg [High]
Fig. 114
