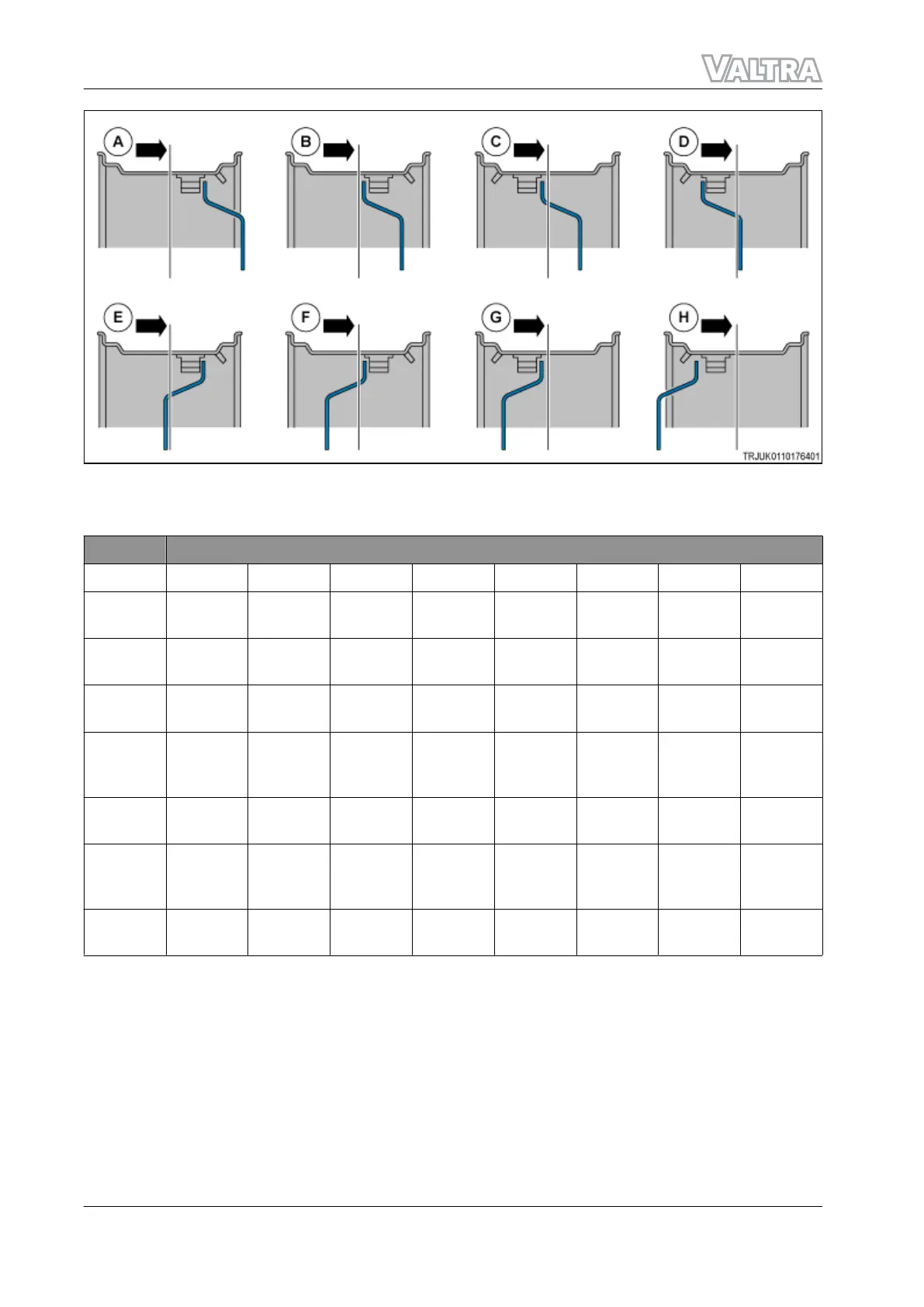

Fig. 11
8 position adjustable rims
Narrow Dimension (mm)
A B C D E F G H
360/70
R24
- - - 1039 - 1038 1094 1207
380/70
R24
- - - 1039 - 1038 1094 1207
420/70
R24
- - - 1039 - 1038 1094 1207
340/85
R28 (13.6
R28)
- - - 955 1003 1114 1248 1359
380/70
R28
- - - - 1007 1118 1244 1355
380/85
R28 (14.9
R28)
- - - - 1007 1118 1244 1355
420/70
R28
- - - - - 1118 1244 1355
