7.4.1 Installing the Fiber Optic Frame Grabber Board
1. Unplug the power cable from the back of the PC and wait for a while.
2. Open the PC cover.

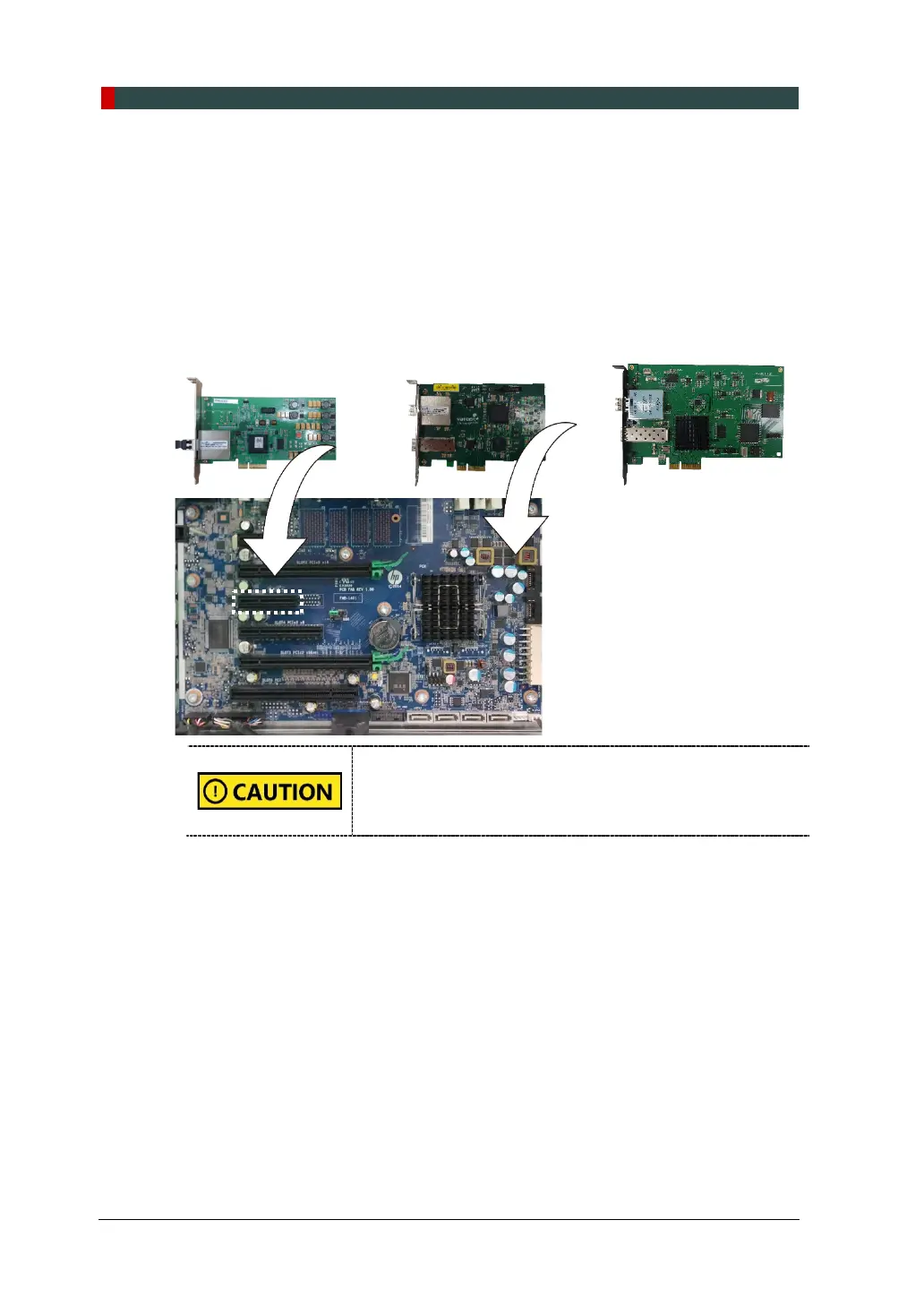

3. Insert the grabber board (Part No. 21) carefully into that PCIe2 x 4 slot and
lock it.
The frame grabber can be one of the following: IFG, or FTG or VTG
or or
Double-check the locking status between the board and its
holder after installing the board. A bad insertion of the board
into the PC slot could cause dark calibration data acquisition
or noisy image acquisition.
4. Put the slot holder back to its initial position.
