4. Installing the Equipment: Base Stand (Optional)
58 Green 16/18 Installation Manual

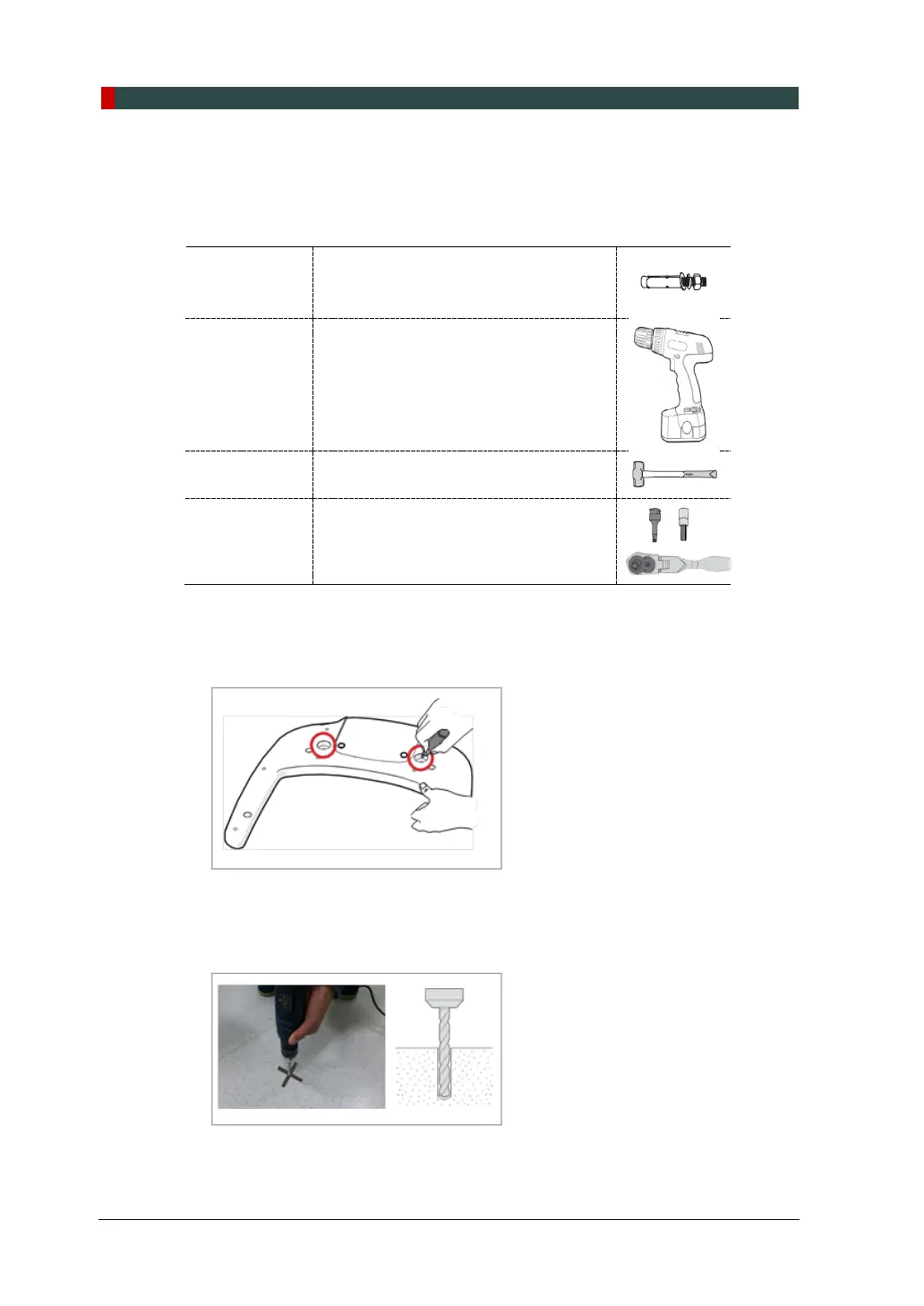

4.4 Fixing the Base (Optional)
4.4.1 On the Concrete Floor
Anchor Bolt
5/16 x 60 w/ Spring and Flat Washers
2 pcs
(Part No. 34)
Hammer Drill L = 200 mm (7.9”)
Hammer n/a
Ratchet
Wrench
Tips: 3 mm – 8 mm (0.12” – 0.3”)
1. Before installing the equipment, but the base unit on the installation site and
mark 2 locations on the floor
2. Drill the floor holes of size 12 mm x 30 mm (depth) using the concrete hammer
drill.
3. Remove the debris and clean the holes using the dust pump.
To Next Page
