4. Installing the Equipment: Base Stand
(Optional)
4.1 Assembling the Base and Main Units
If the installation site is a concrete floor, go to section 4.4
Fixing the base (Optional) and do number 1 first; after that,
turn back 4.1 Assembling the Base and Main Units.

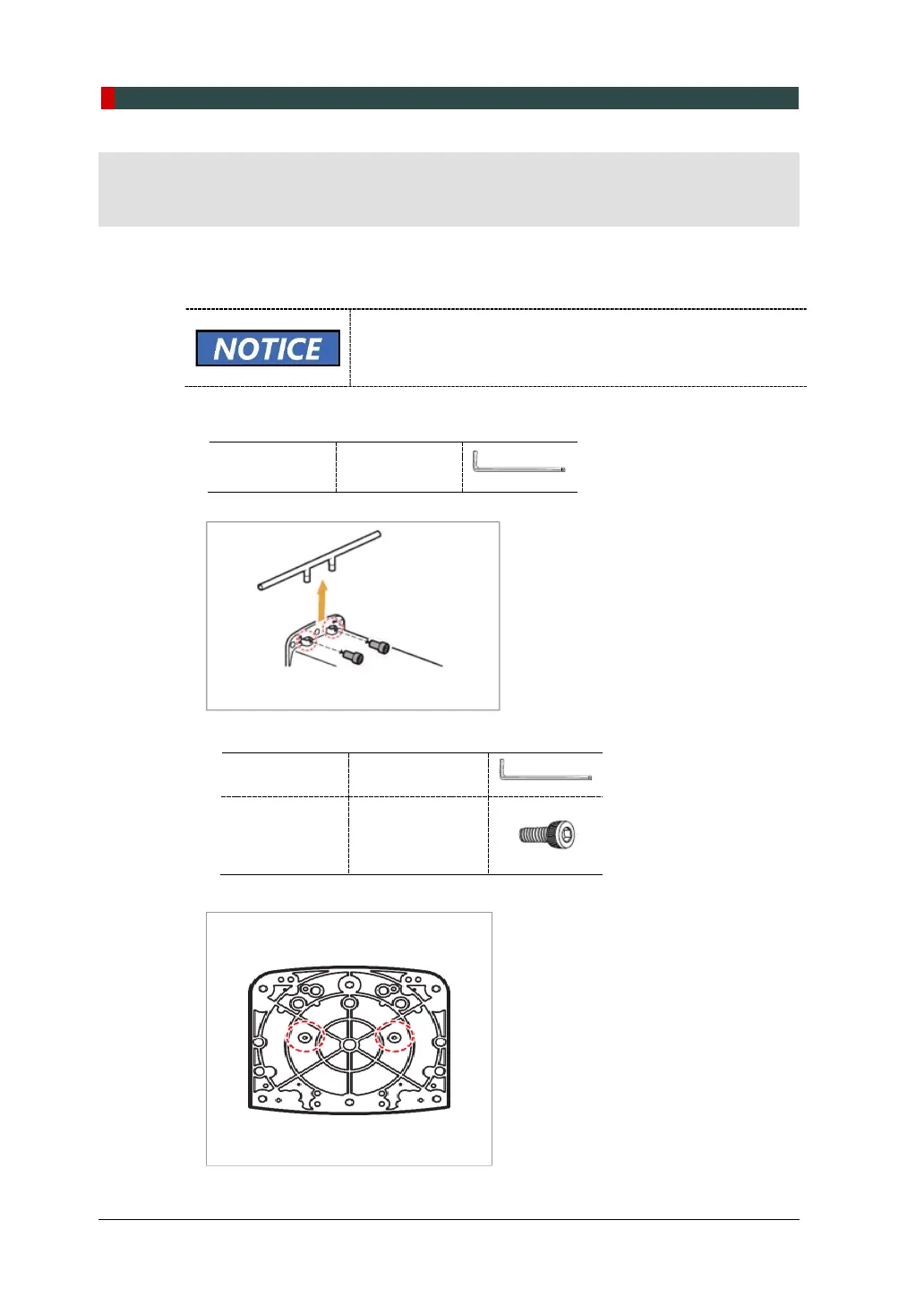

1. Remove the lower carrying handle.
Allen Wrench 6 mm / 0.24”
2. Put two wrench bolts into the holes on the bottom of the column unit.
Allen Wrench 6 mm / 0.24”
Wrench Bolt
M8 x 45
- 2 pcs
(Part No. 24)
To Next Page
