Vatech Green 16 - Connecting the Cables to the Equipment

4. Installing the Equipment: Base Stand (Optional)
Green 16/18 Installation Manual 61
English
4.5 Connecting the Cables to the Equipment.

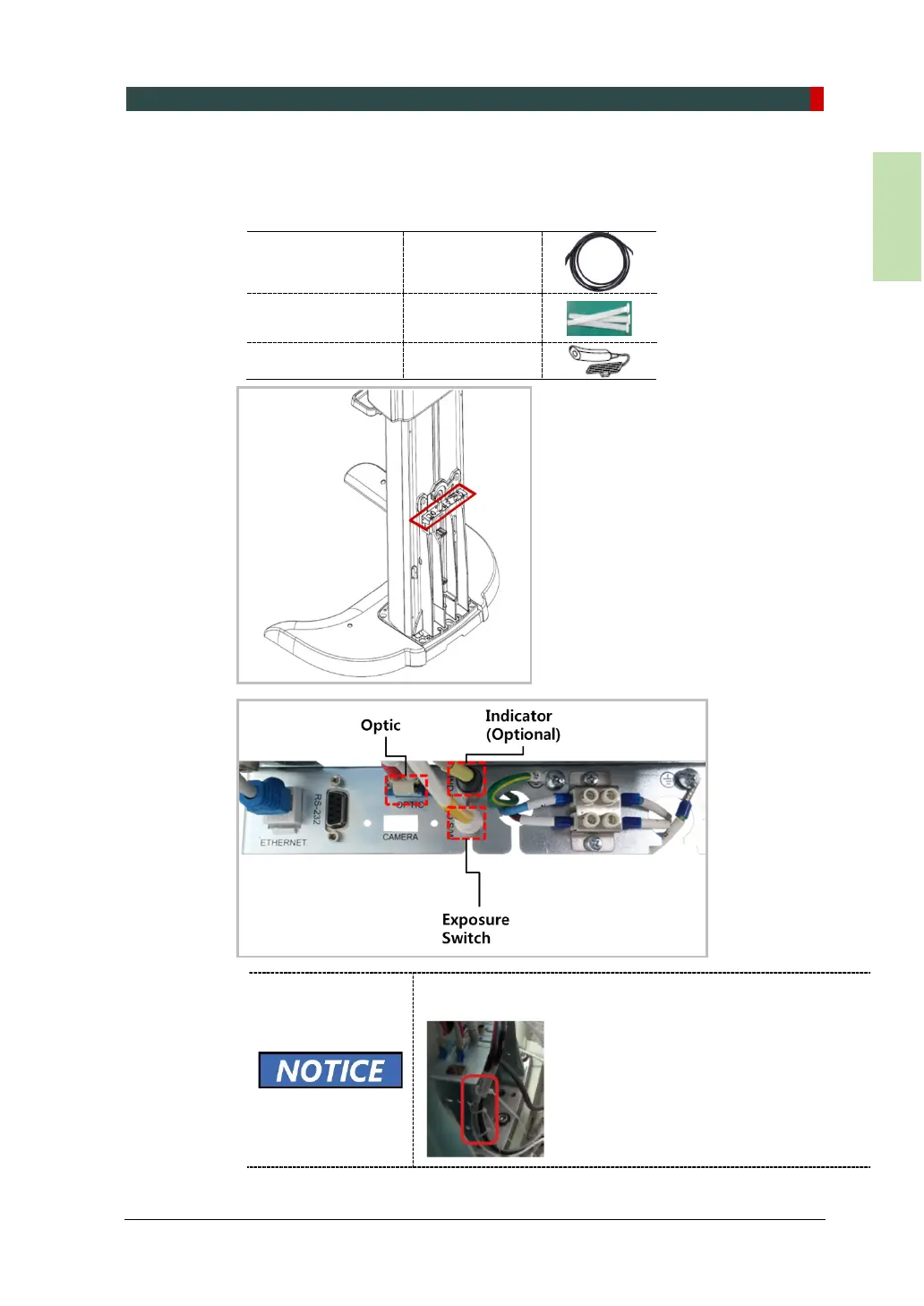

1. Connect the cables in the back of the column as shown in the figure.
Optic Cable
Cable No.
H000014A
(Part No. 21)
Cable Tie (Part No. 20)
Exposure Switch (Part No. 2)
Use the Cable Tie (Part No. 20) to fix the cables, as shown
below, after the connection is completed.
