4. Installing the Equipment: Base Stand (Optional)
54 Green 16/18 Installation Manual

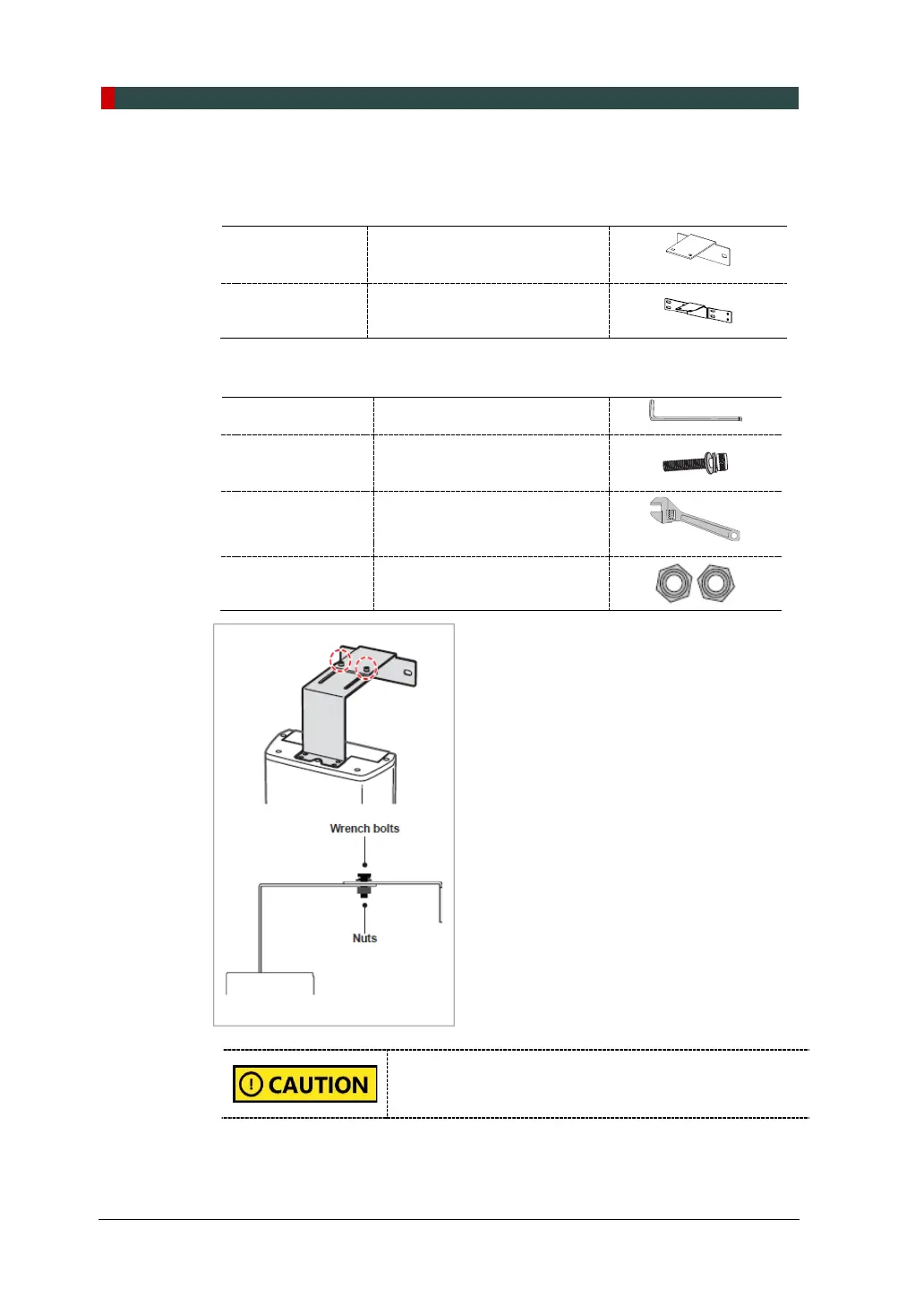

4.3.2 Combining Column and Wall Brackets
1. Prepare the wall bracket.
Wall Bracket (Part No. 36)
Wall Bracket (for
Wood Wall)
Optional
(Part No. 37)
2. Combine the column and wall brackets in the following manner with the 2 wrench
bolts.
Allen Wrench 6 mm / 0.24”
Wrench Bolt
M8 x 25 w/ Spring and Flat
Washers
Monkey Wrench n/a
Nut
M8 - 2 pcs
(Part. No. 35)
Do not tighten the bolts fully yet.
To Next Page
