5. Installing the Equipment: Wall Mount
Green 16/18 Installation Manual 77

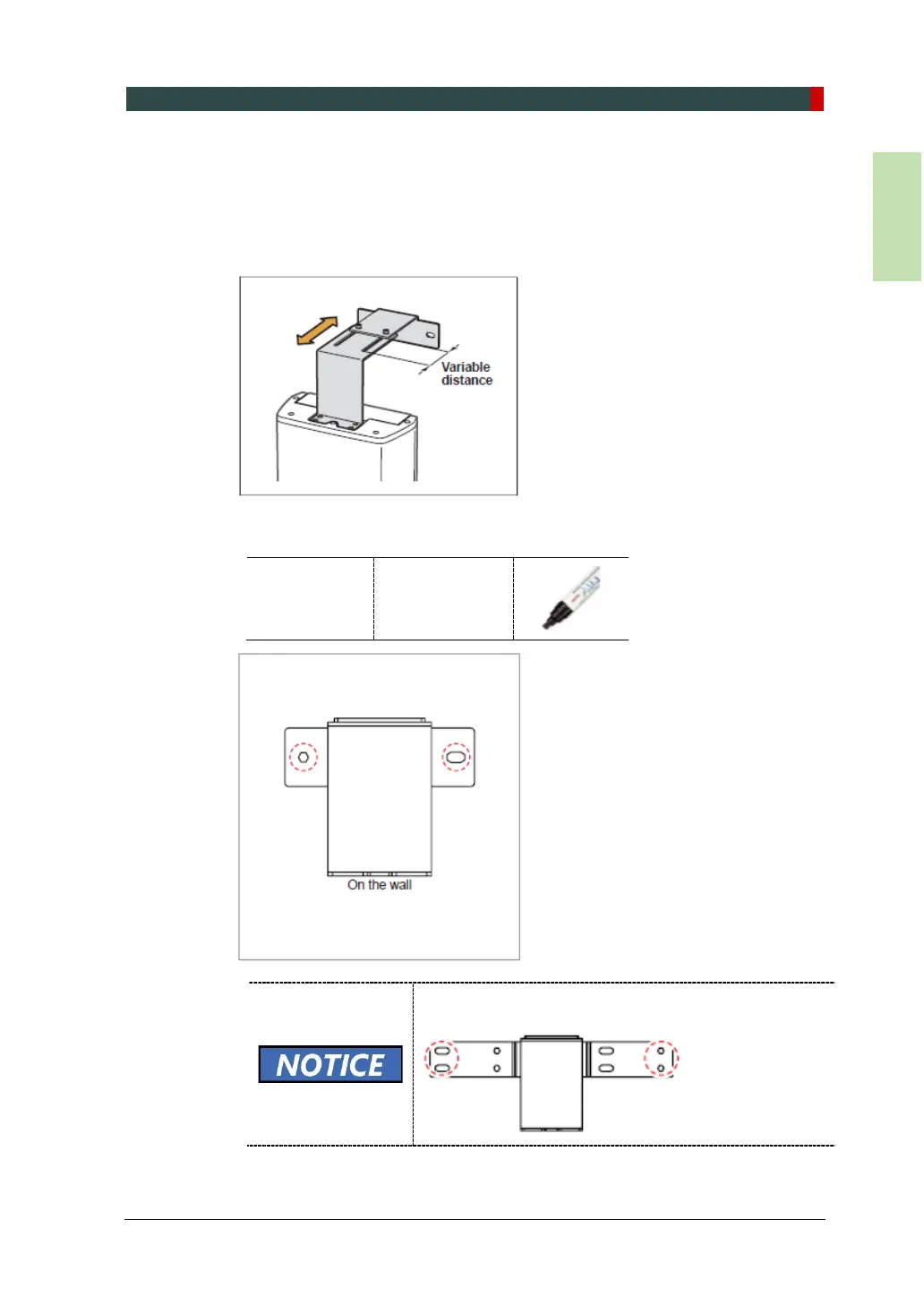

5.3.3 Marking Points on the Wall
1. Move the equipment to the installation site as close as possible.
2. Adjust the distance between the wall and equipment by moving it slightly, so
that the wall bracket touches the wall.
3. Mark the anchor bolt locations on the wall.
Marker n/a
For the wood wall with 16-inch studs, mark the wood
screw locations as shown in the figure.
