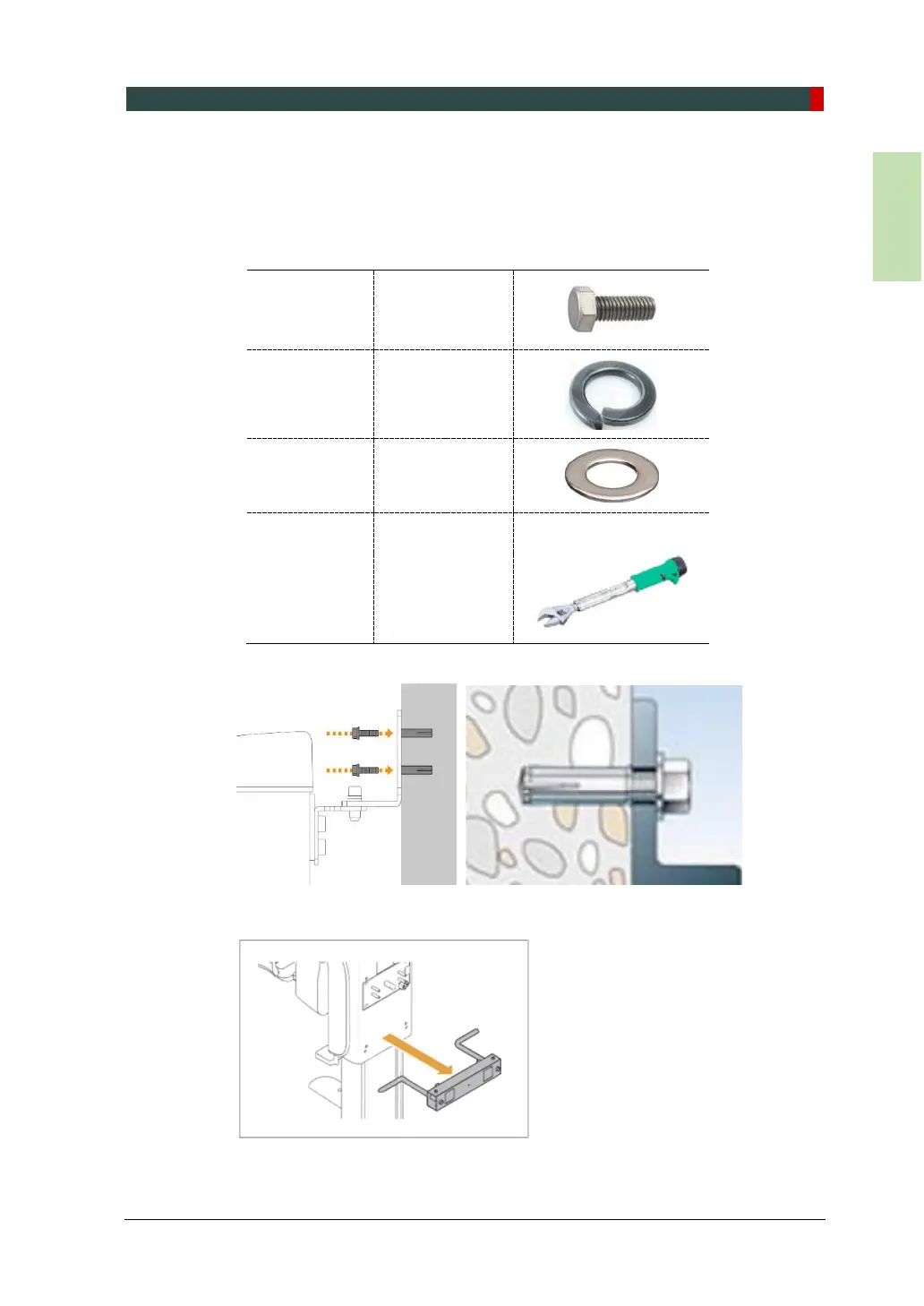

5. Installing the Equipment: Wall Mount
Green 16/18 Installation Manual 79
5.3.5 Combining the Equipment with the Anchor Bolts
1. Place the equipment on the alignment plate while observing 4 Hex bolts are being
inserted properly through each hole.
Hex Bolt M8 x 15
Spring washer M8
Flat washer M8
Torque wrench Spanner type
2. Remove the middle carrying handle.
