5. Installing the Equipment: Wall Mount
82 Green 16/18 Installation Manual

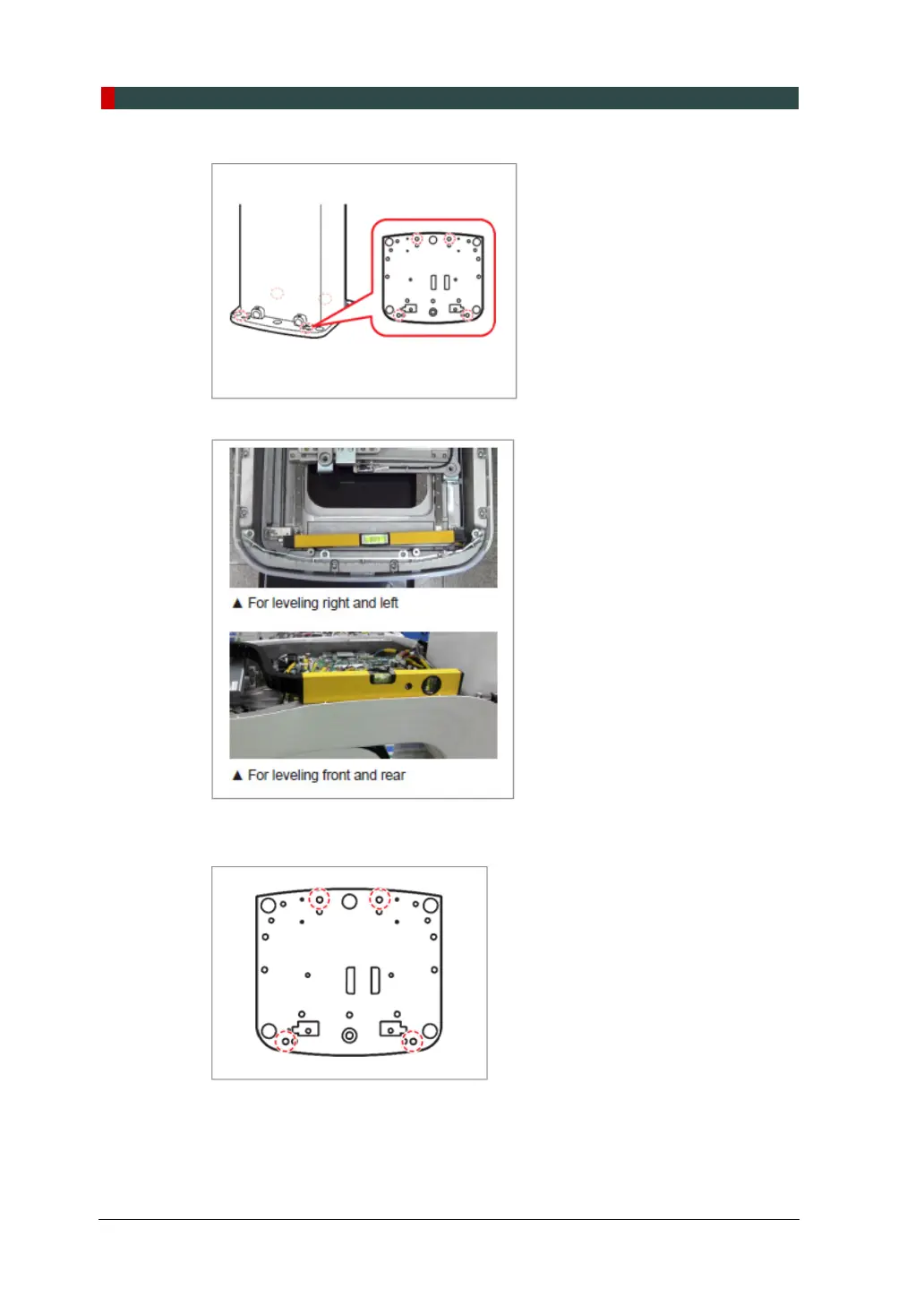

4. Put the Spirit Level on the location as shown in the figure.
5. Turn each set screw clockwise or counterclockwise to make the equipment level
while another person monitors the level indicator.
