6. Completing Miscellaneous Works
86 Green 16/18 Installation Manual

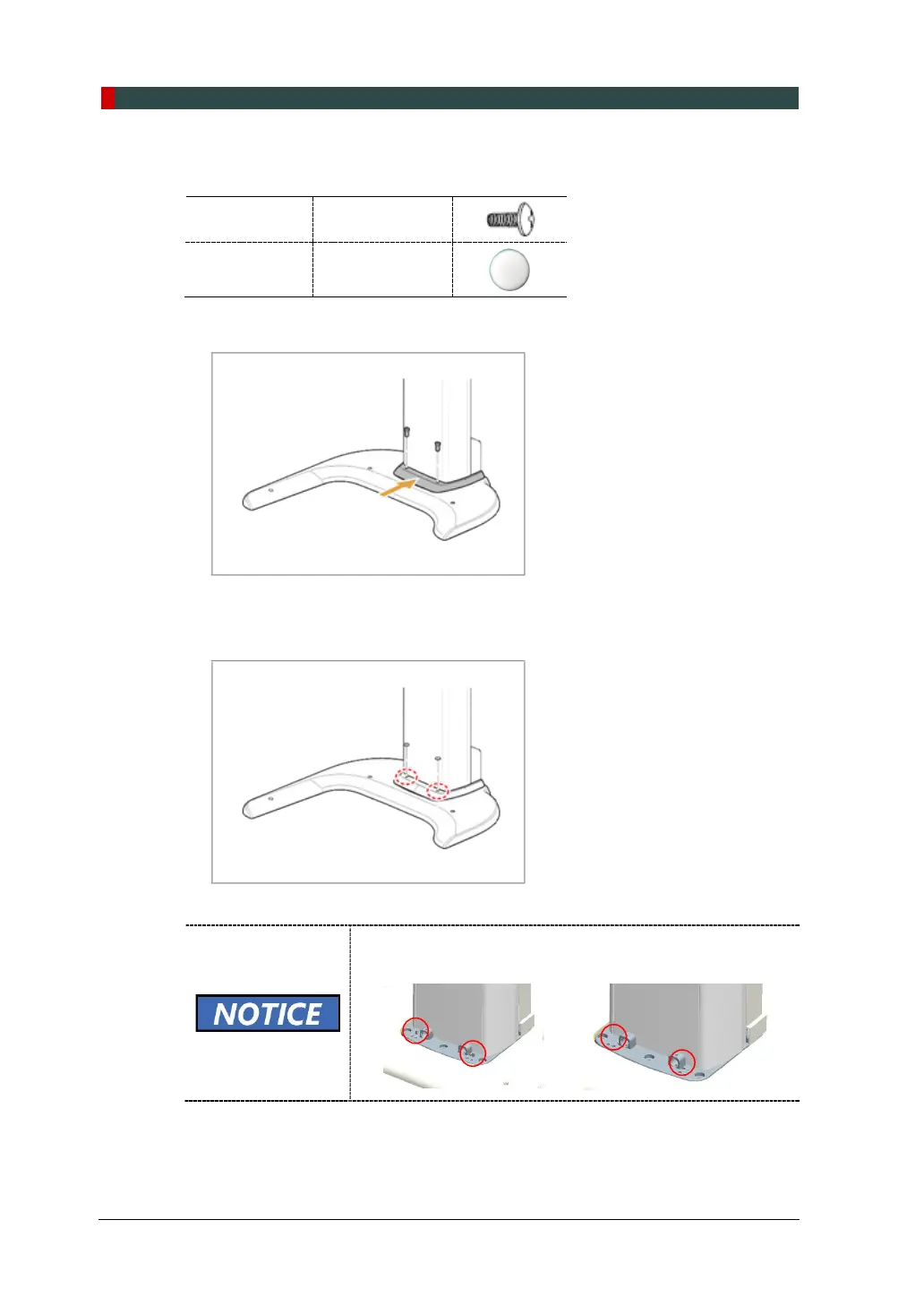

6.1.2 Base Front Cover
Truss Bolt
M4 x 8 – 2 pcs
(Part No. 27)
Silicon Cap
2 pcs
(Part No. 16)
1. Assemble the base cover and fix it with two Truss Bolts.
2. Cover 3 holes on the base with two white Silicon Caps.
If you do not use the base during the assembly, remove 2
pcs of Truss bolts while installing the front cover as below.
