4. Installing the Equipment: Base Stand (Optional)
Smart Plus (PHT-35LHS) Installation Manual 53
Combining the Equipment with the Anchor Bolts

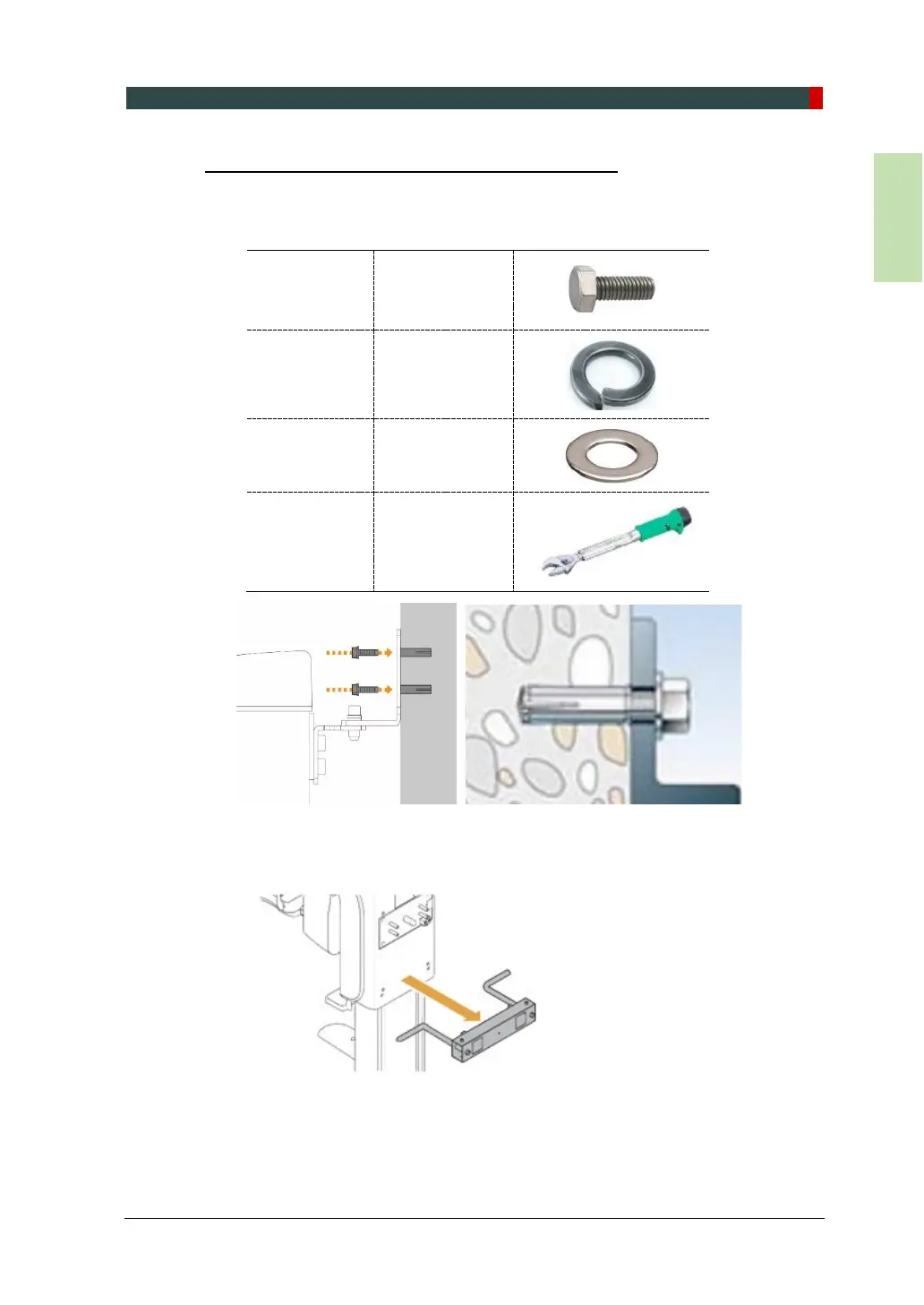

1. Place the equipment on the alignment plate, while observing 4 Hex bolts are
being appropriately inserted through each hole.
Hex Bolt M8 x 15
Spring washer M8
Flat washer M8
Torque wrench Spanner type
2. Remove the middle carrying handle.
