7. Setting up PC
Smart Plus (PHT-35LHS) Installation Manual 83
English
7. Setting up PC

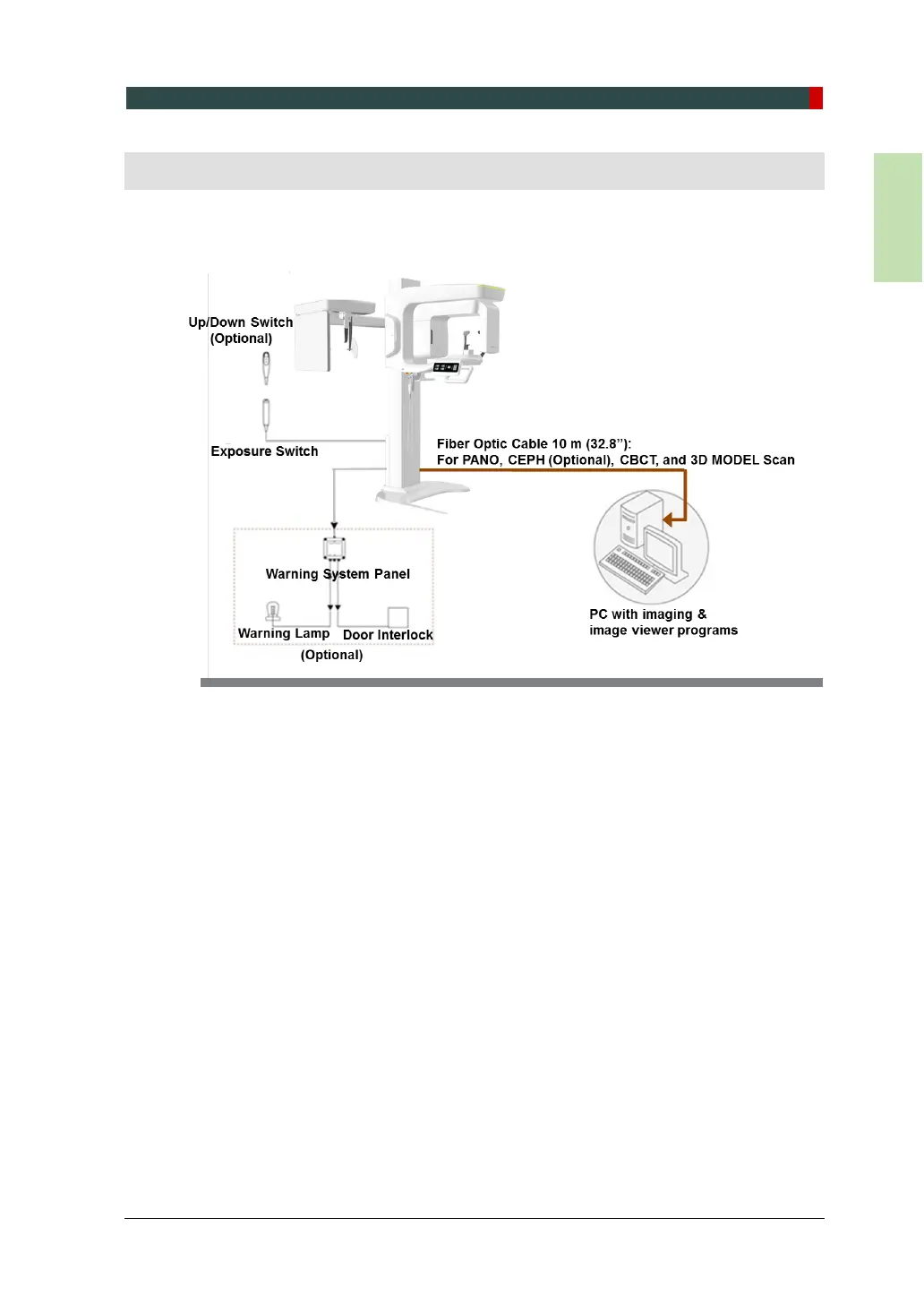

7.1 Direct Connection Diagram
Fiber Optic Cable - Used to transfer image data to the PC.
Warning System Panel - Used to provide a visible indicator: Light on when the
equipment is irradiating X-ray.
