6. Completing Miscellaneous Works
82 Smart Plus (PHT-35LHS) Installation Manual

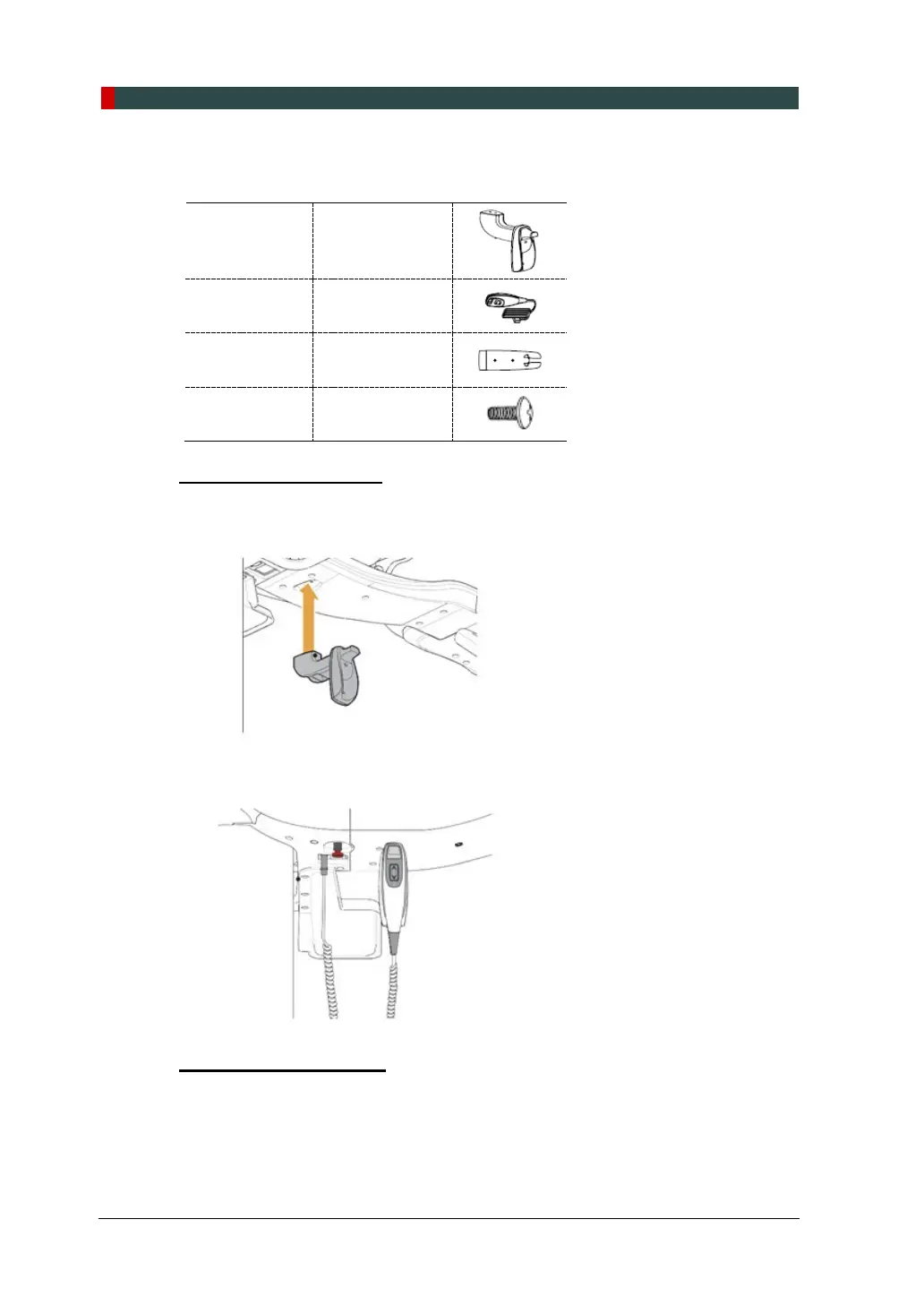

6.3 Installing the Switch Holders
UP / DOWN
Switch Holder
1 pcs
(Part No. 2)
UP / DOWN
Switch
Optional - 1 pcs
(Part No. 33)
Exposure
Switch Holder
1 pcs
(Part No. 33)
Truss Bolt
M4 x 10 – 2 pcs
(Part No. 33)
UP / DOWN Front Cover
1. Assemble the UP/DOWN Switch Holder on the bottom of the Vertical Frame
with two Truss Bolts (M4 x 10).
2. Connect the UP/DOWN switch to the unit and hang it on the UP / DOWN Switch
Holder
Exposure Switch Holder
1. Locate the Exposure Switch Holder with a sticker and two screws.
2. Install the Exposure Switch Holder on the wall at the appropriate height using
two screws.
