Vatech Smart Plus PHT-35LHS - Fixing the Base (Optional)

4. Installing the Equipment: Base Stand (Optional)
54 Smart Plus (PHT-35LHS) Installation Manual

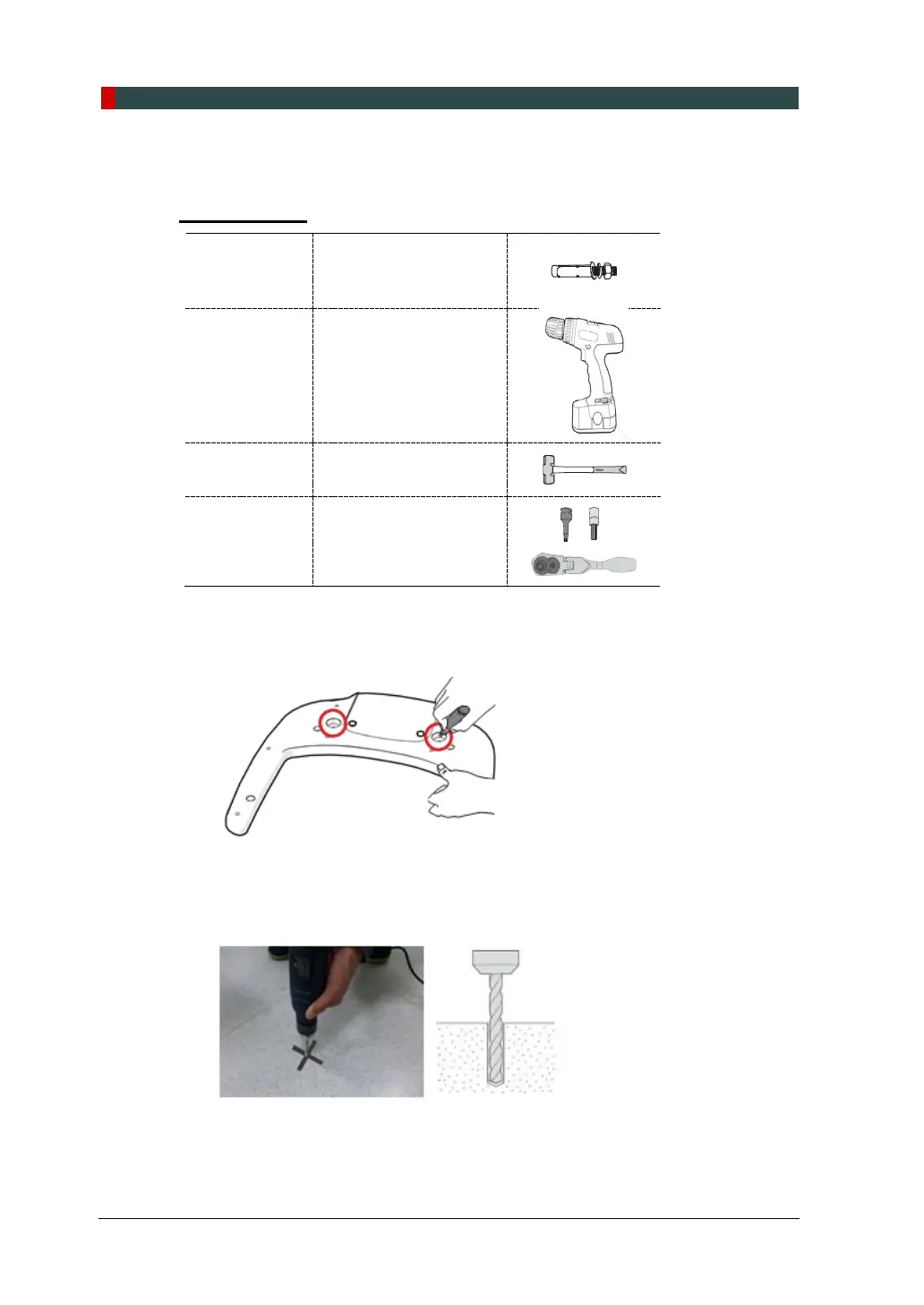

4.4 Fixing the Base (Optional)
Concrete Floor
Anchor Bolt
5/16 x 60 w/ Spring and
Flat Washers
2 pcs
(Part No. 34)
Hammer Drill L = 200 mm (7+-.9”)
Hammer N/A
Ratchet
Wrench
Tips: 3 mm - 8 mm
(0.12” - 0.3”)
1. Before installing the equipment, put the base unit on the installation site and
mark 2 locations on the floor
2. Drill the floor holes of size 12mm x 30mm (depth) using the concrete hammer
drill.
3. Remove the debris and clean the holes using the dust pump.
