5. Installing the Equipment: Wall Mount
74 Smart Plus (PHT-35LHS) Installation Manual

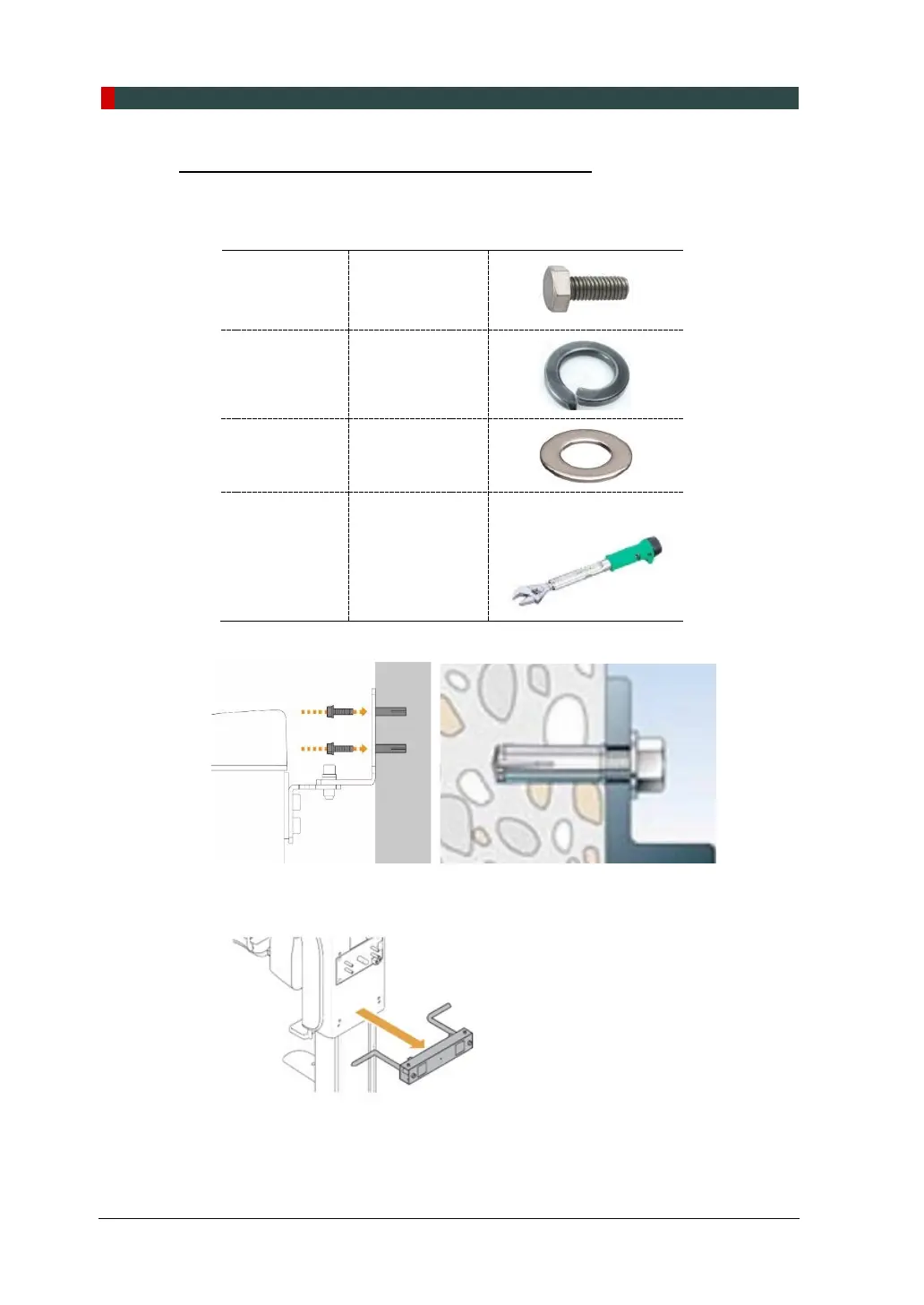

Combining the Equipment with the Anchor Bolts
1. Place the equipment on the alignment plate, while observing 4 Hex bolts are
being appropriately inserted through each hole.
Hex Bolt M8 x 15
Spring washer M8
Flat washer M8
Torque wrench Spanner type
2. Remove the middle carrying handle.
