7. Setting up PC

Smart Plus (PHT-35LHS) Installation Manual 85

English

In Windows 10, disable Windows Defender When

Windows Defender is not enabled, Windows 10 is not

protected from malware and virus.

Disabling Windows Defender

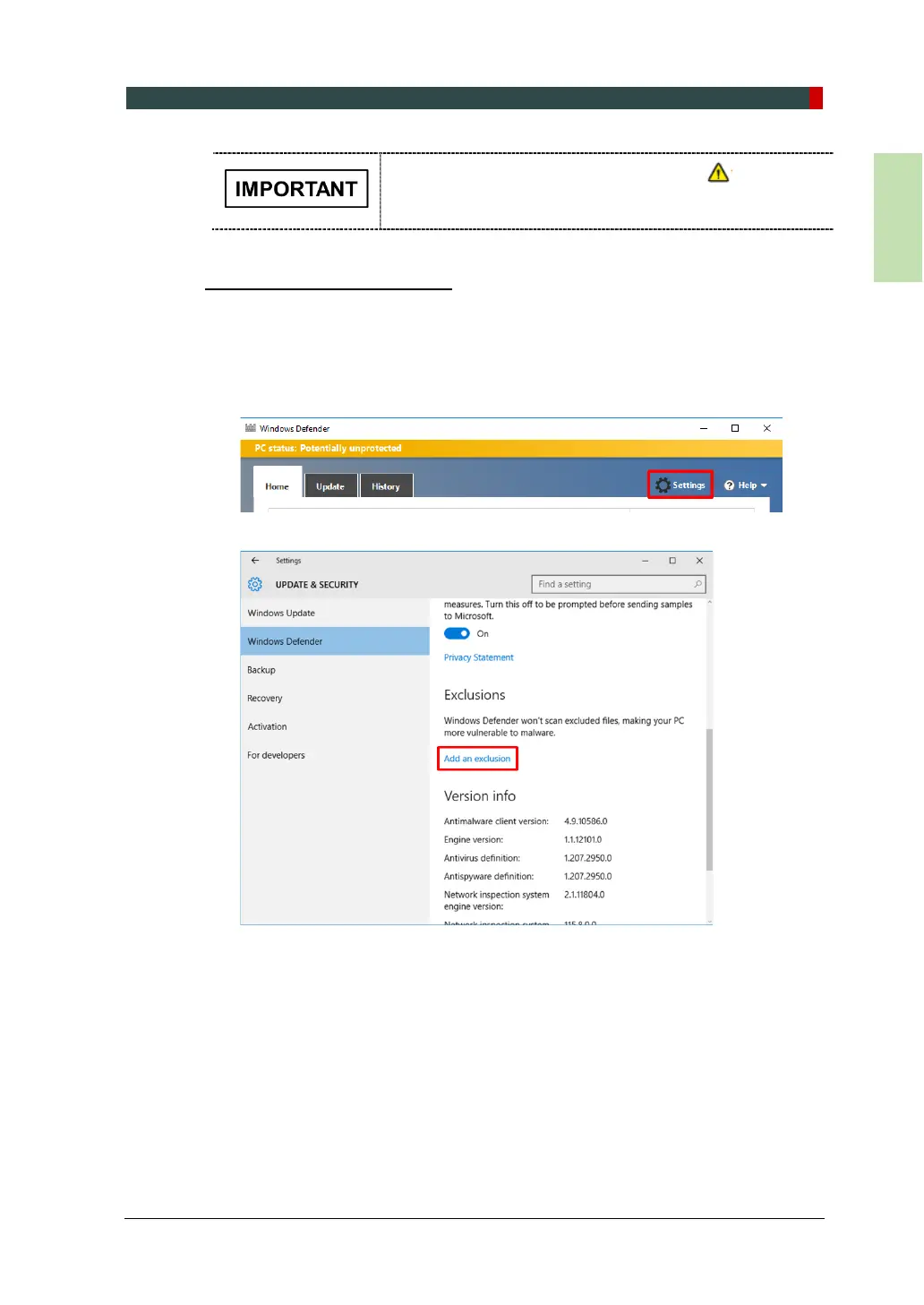

1. Open the Start screen, type Windows Defender in the search box.

2. Click the Windows Defender icon to start Windows Defender on the search

result.

3. Click the Settings icon.

4. On the Settings window, click Add an exclusion in the Exclusions section.

Notice3
Important Notes4
