Vectrix VX-2 2011 - Under Board

VECTRIX VX-2 SERVICE MANUAL
SECTION B-9:
UNDER BOARD

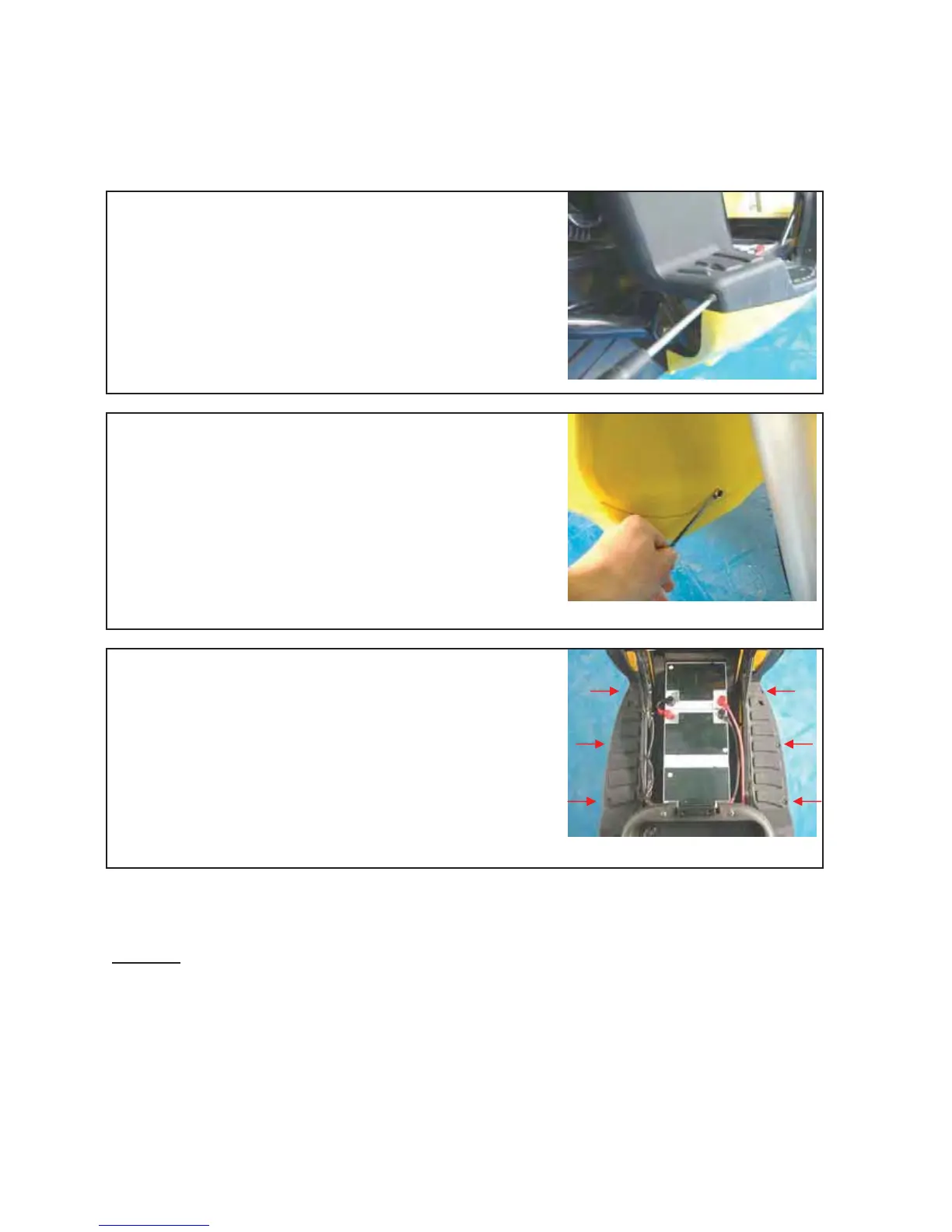

Unscrew the two Phillips screws (left and right position)
with a Phillips screwdriver PH2
Unscrew the screw (Front position) with a 8mm wrench
1
Version 1.0/May 2011
6
4
2
Unscrew the 6 Phillips screws in order as seen on the
picture with a Phillips screwdriver PH2
While loosening screws 5 and 6 hold the Under board
otherwise it drops down and could break!
5
3
Assemble all parts in the other direction
Remark:
When assembling the cover, please take care of the noses are in the right position and no edge
is outstanding. First, just slightly screw in the screws and if all screws and the cover are in the
correct position tighten the screws.
VECTRIX, LLC
