VECTRIX VX-2 SERVICE MANUAL
SECTION B-17:
REAR SHOCK
Preparations:
Disassemble Left Side Body Panel see Section B-10
Unscrew the nut #1 by using a open wrench 14mm
Unscrew the bolt #2 by using a open wrench 13mm
Unscrew the bolt #3 by using a open wrench 12mm and
remove rear shock
Remark
:
For disassembling of the rear shock it is not necessary
to remove the motor and the side cover
3
1
2

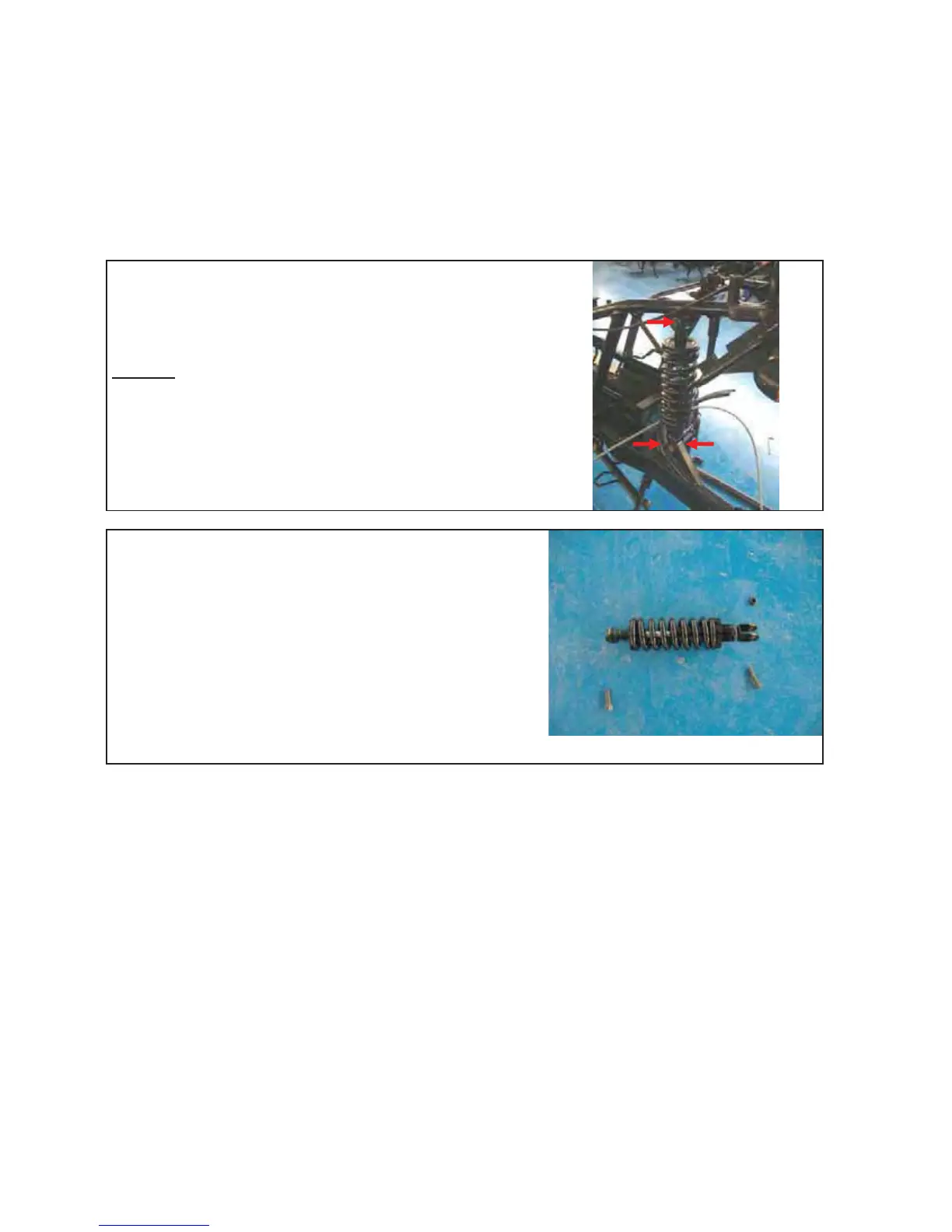

All parts of removed rear shock
Assemble all parts in the other directions and tighten the bolts and the nut according to the
regulated torque, see Section F-4
Version 1.0/May 2011
VECTRIX, LLC
