VECTRIX VX-2 SERVICE MANUAL
SECTION C-16:
BATTERY
Preparations:
Disassemble Blue Battery Cable Connection see Section C-15
Note
: Photos in this section show the Sevcon Motor Controller Housing removed which makes
the procedure easier to complete but is not necessary if only the Step-Through panel is
removed.
Version 1.0/May 2011

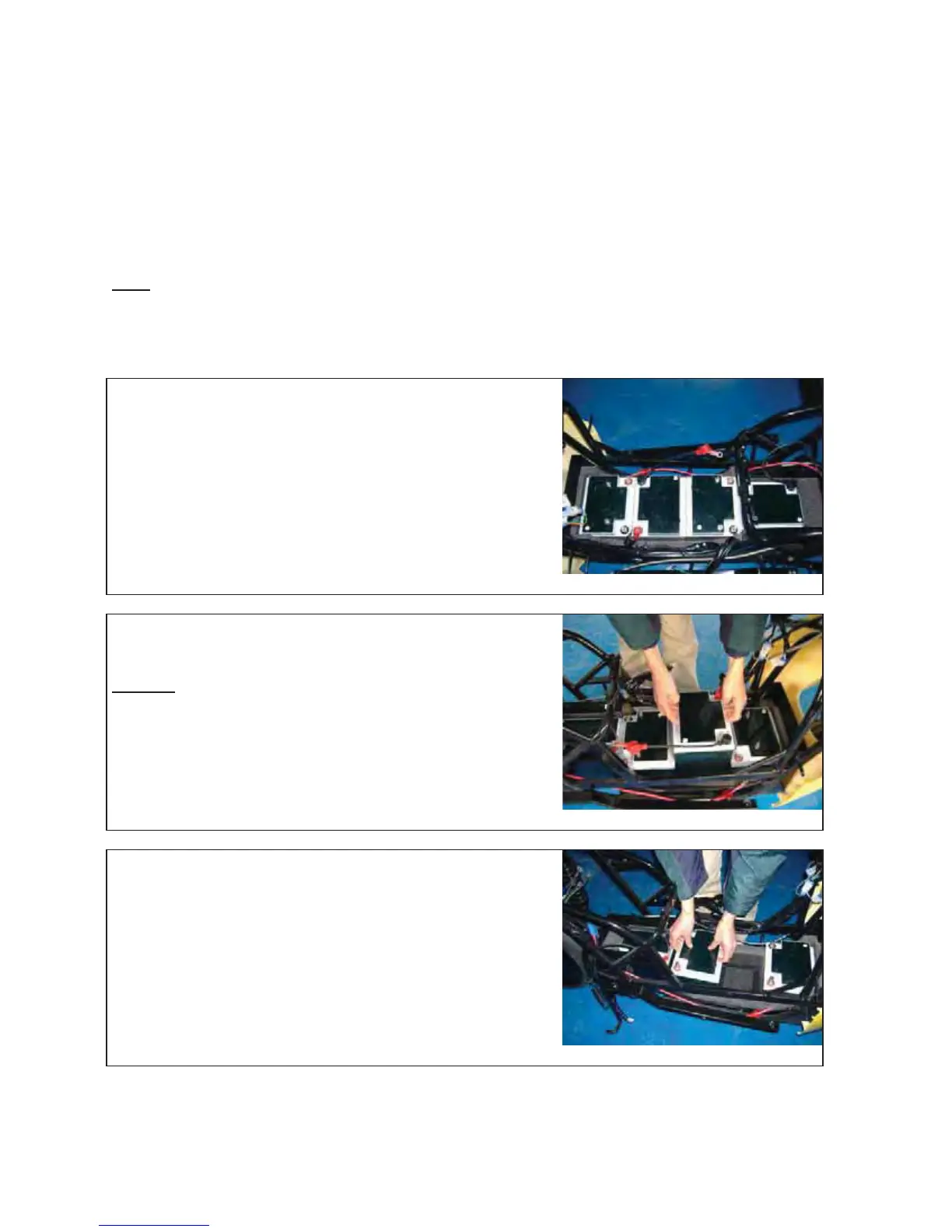

Unscrew the hexagon bolts from Battery #1 und #3
Lift up battery #2 and remove it
Remark
:
Batteries are fixed to the battery case with strong velcro.
Move the batteries sideways to loosen them from the
velcro before remove.
Lift up battery #3 and remove it
VECTRIX, LLC
