VECTRIX VX-2 SERVICE MANUAL
SECTION C-8:
POSITION LIGHT/HEADLAMP ASSEMBLY REPLACEMENT
Preparations:
Disassemble Front Fairing see Section B-1
Headlamp Assembly Replacement
Headlamp Assembly Part #S-XC-S00092
Removal Procedure
1. Remove the right front fairing. Refer to Front Fairing Replacement in Body Front End.

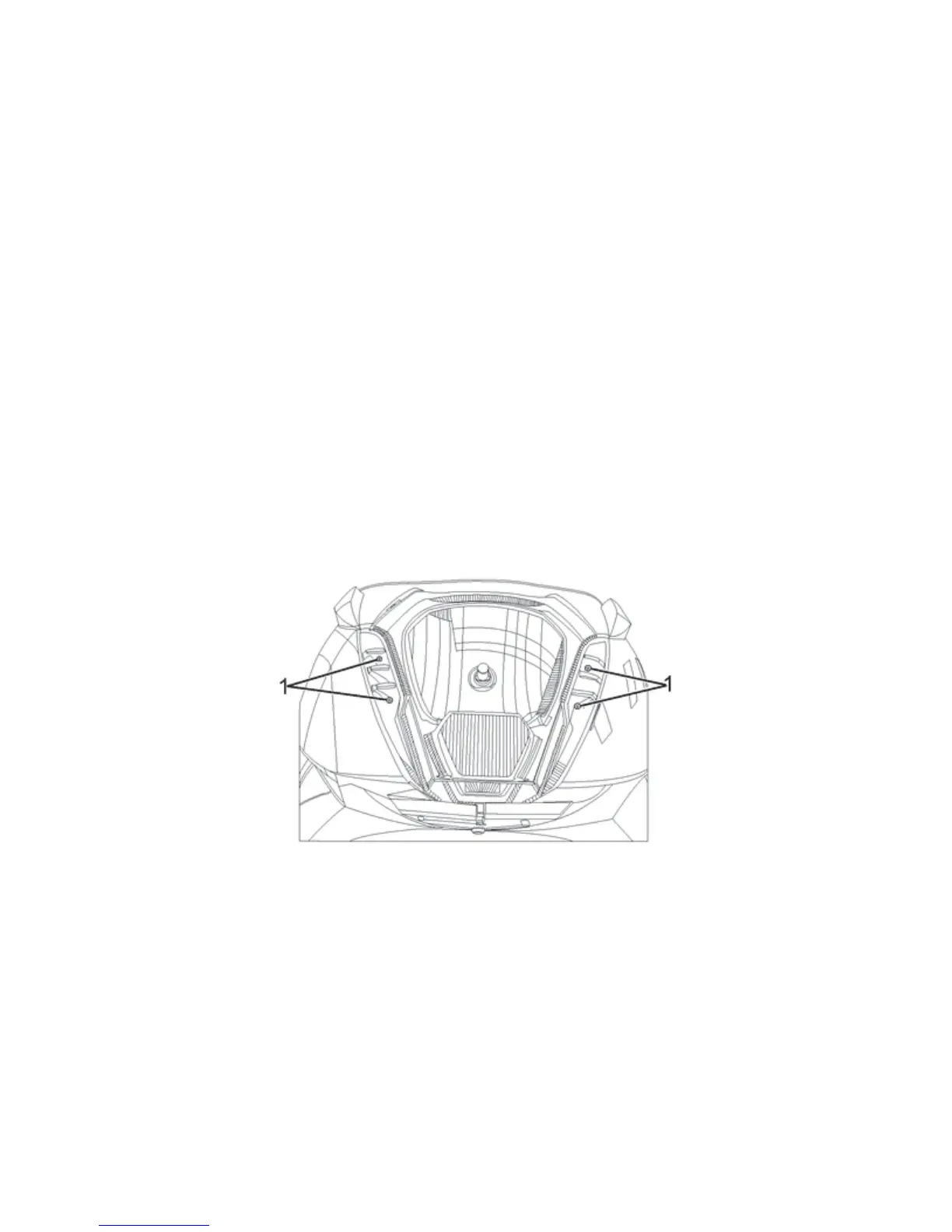

2. Remove the headlamp bolts (1).
Version 1.0/May 2011
VECTRIX, LLC
