Vectrix VX-2 2011 - Handlebar

VECTRIX VX-2 SERVICE MANUAL
SECTION B-19:
HANDLEBAR

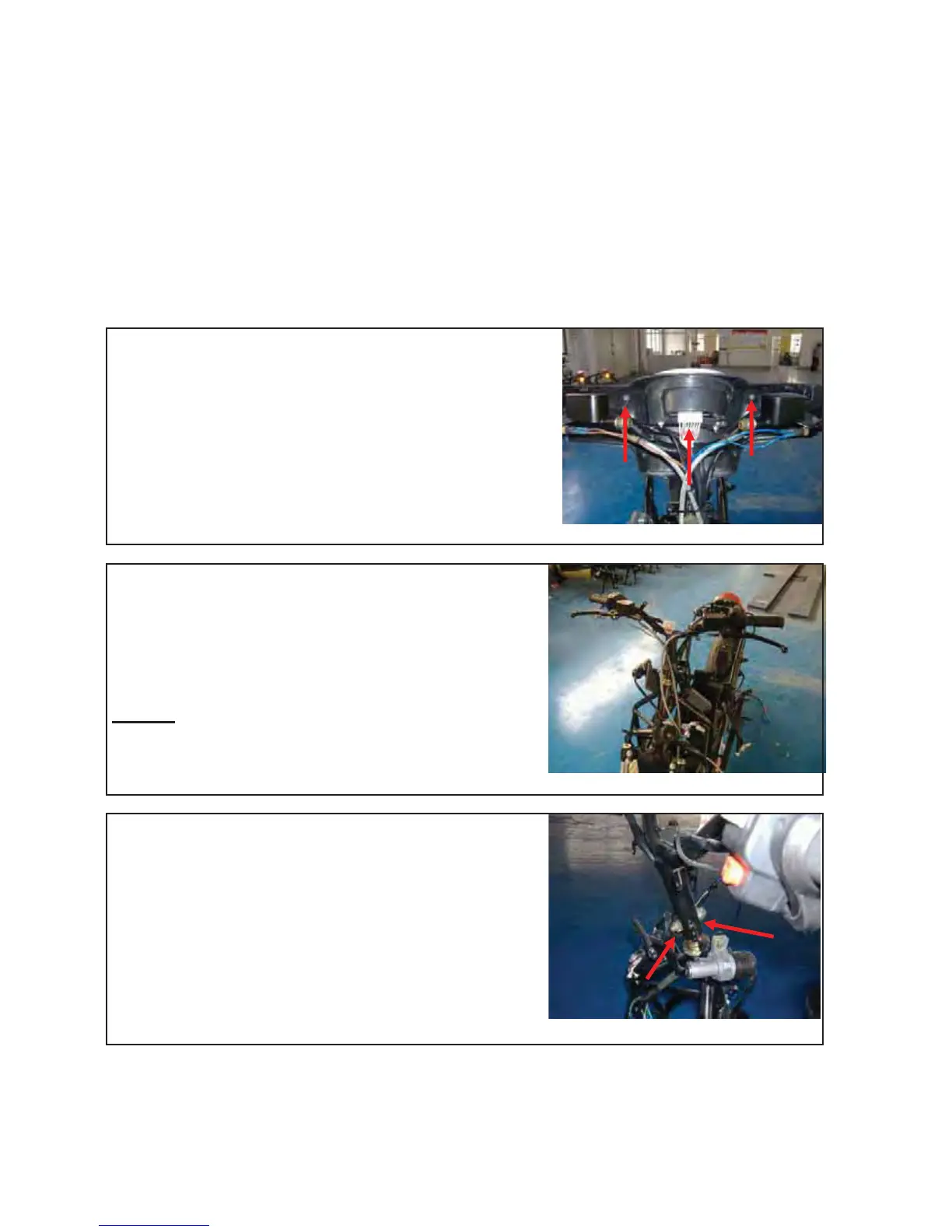

Preparations:
Disassemble Front Console Cover see Section B-2
Disassemble Front Vertical Panel-Lower see Section B-4
Disassemble Front Vertical Panel-Upper see Section B-5
Open the connector from the Speedometer
Remove the two cross screws by using a Phillips
screwdriver #2 and remove the complete Speedometer
cover
Version 1.0/May 2011
VECTRIX, LLC
Remove all parts of the handlebar
- Left- and right switch assembly
- Left- and right brake handle assembly
- Accelerator
- Left side grip
Remark
:
It is not necessary to remove any covers
Unscrew the nut #2 by using a open wrench 13mm
Unscrew the bolt #1 by using a open wrench 13mm and
remove the bolt
2
1
Assemble all parts in the other direction and tighten the bolts and nuts according to the
regulated torque, see Section F-4
