VECTRIX VX-2 SERVICE MANUAL
SECTION B-1:
FRONT FAIRING

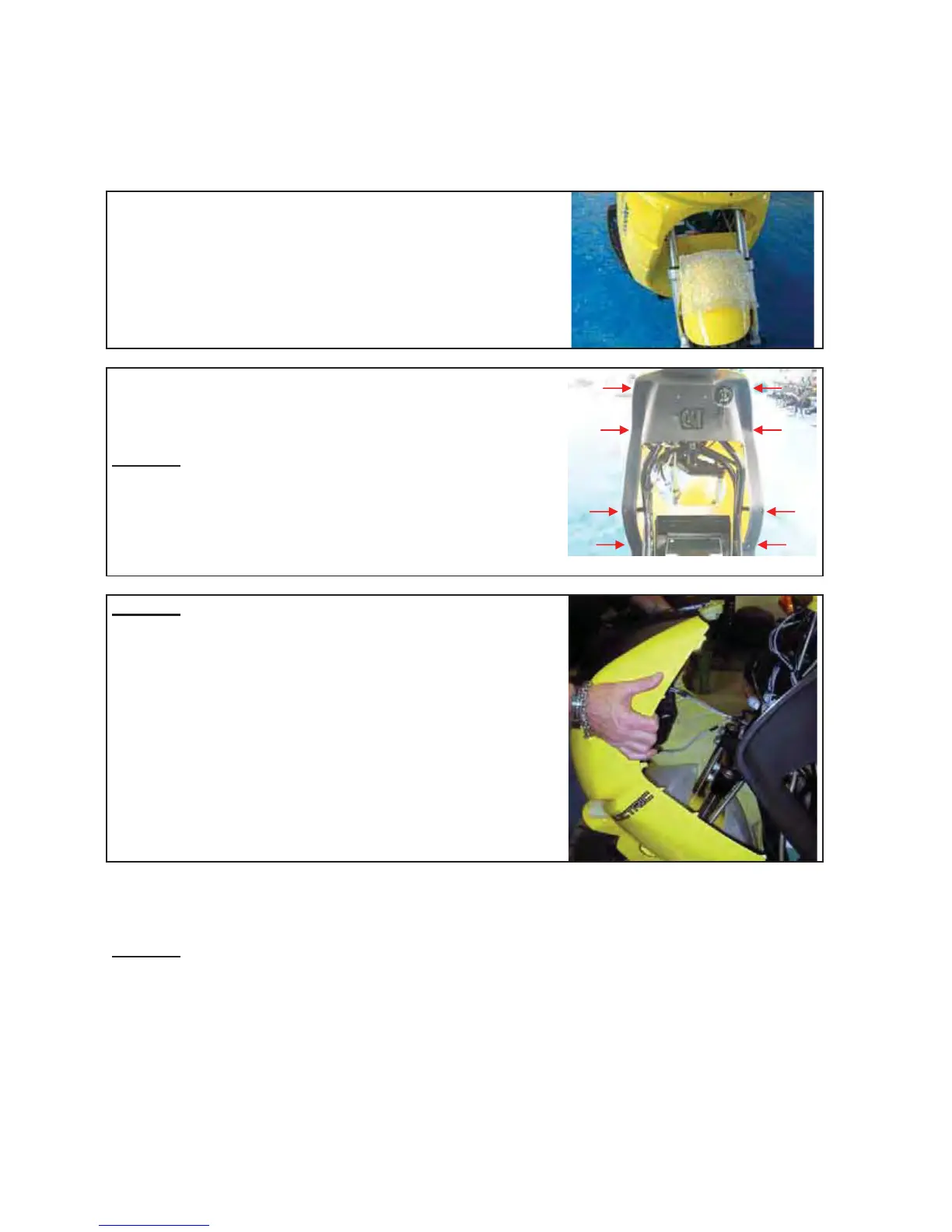

For safety put a plastic or other soft material onto the
fender
Unscrew the 6 Phillips screws 1 to 8 in order as seen on
the picture with a Phillips screwdriver PH2
Remark:
While loosening screws 7 and 8 hold the front cover
otherwise it drops down and could break!
87
1
5
4
6
3
2
Remark:
While loosening screws 7 and 8 hold the front cover
otherwise it drops down and could break!
Assemble all parts in the other direction
Remark:
For assembling the cover please take care of the noses being in the right position
and no edge is standing out. Put in the screws slightly and if all screws and the
cover are in the correct positions tighten them.
See also the last picture on the next Section for the right position of the clamp
screw.
