VECTRIX VX-2 SERVICE MANUAL
SECTION B-2:
FRONT CONSOLE COVER
Preparations:
Disassemble the Front Fairing see Section B-1
Unscrew the two Phillips screws (left and right position)
with a Phillips screwdriver PH2

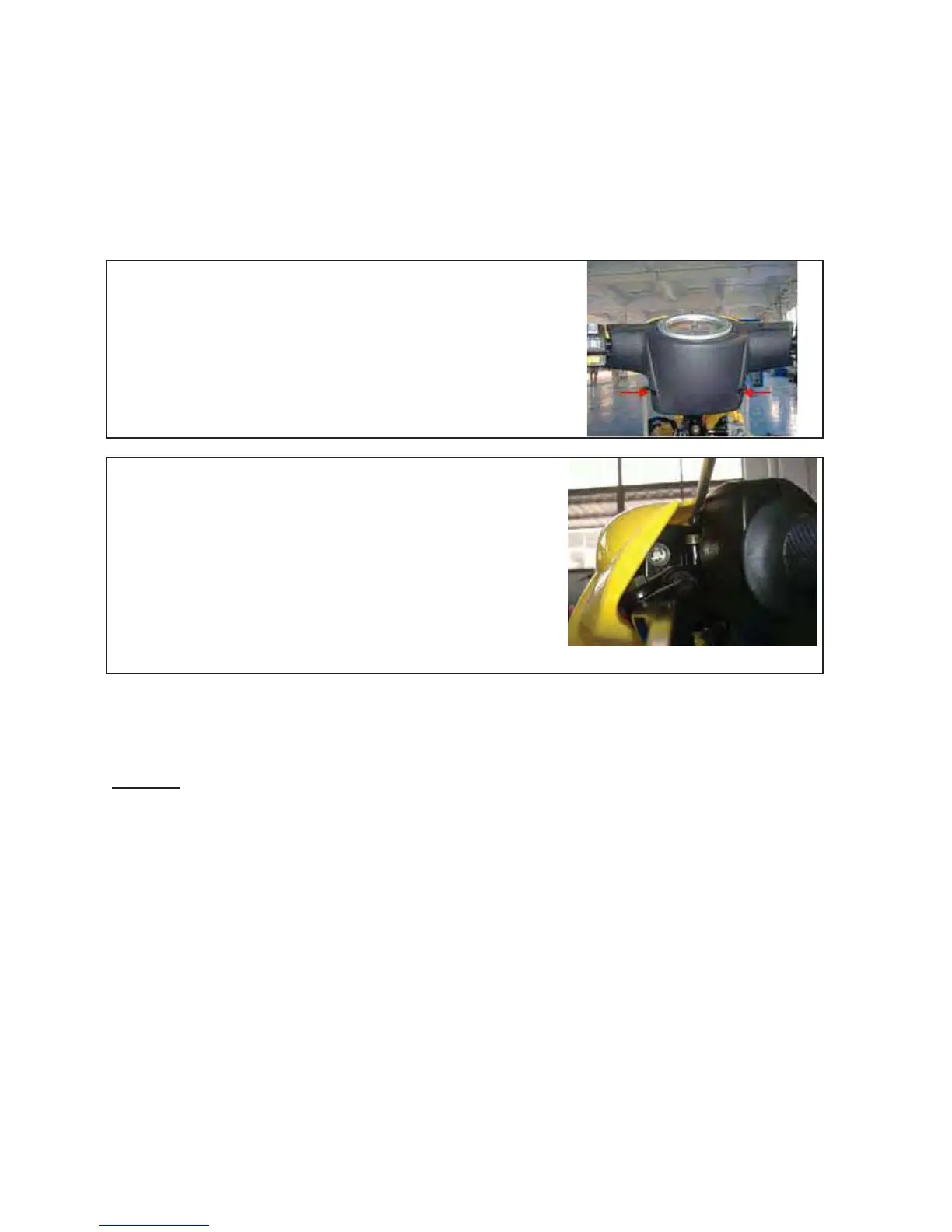

Slide in a flat screwdriver into the position as seen on the
picture. Hold the front cover by hand. Carefully turn the
screwdriver counter-clockwise [ccw] (left side) and
clockwise [cw] (right side) until the front cover snaps out.
Assemble all parts in the other direction
Remark:
For assembling the top cover, please take care the noses are in the right position
and no edge is standing out.
